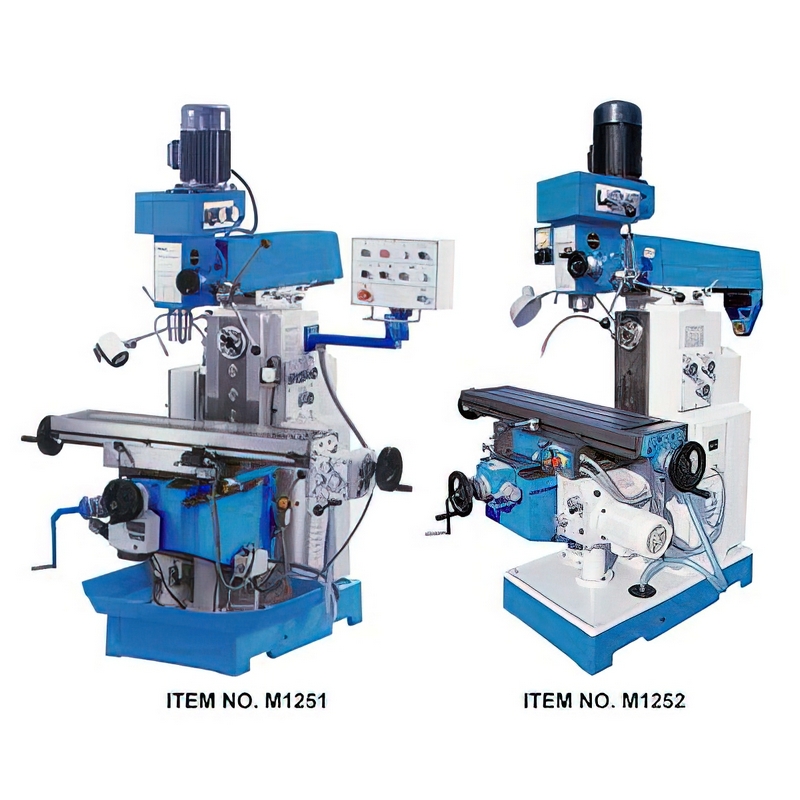

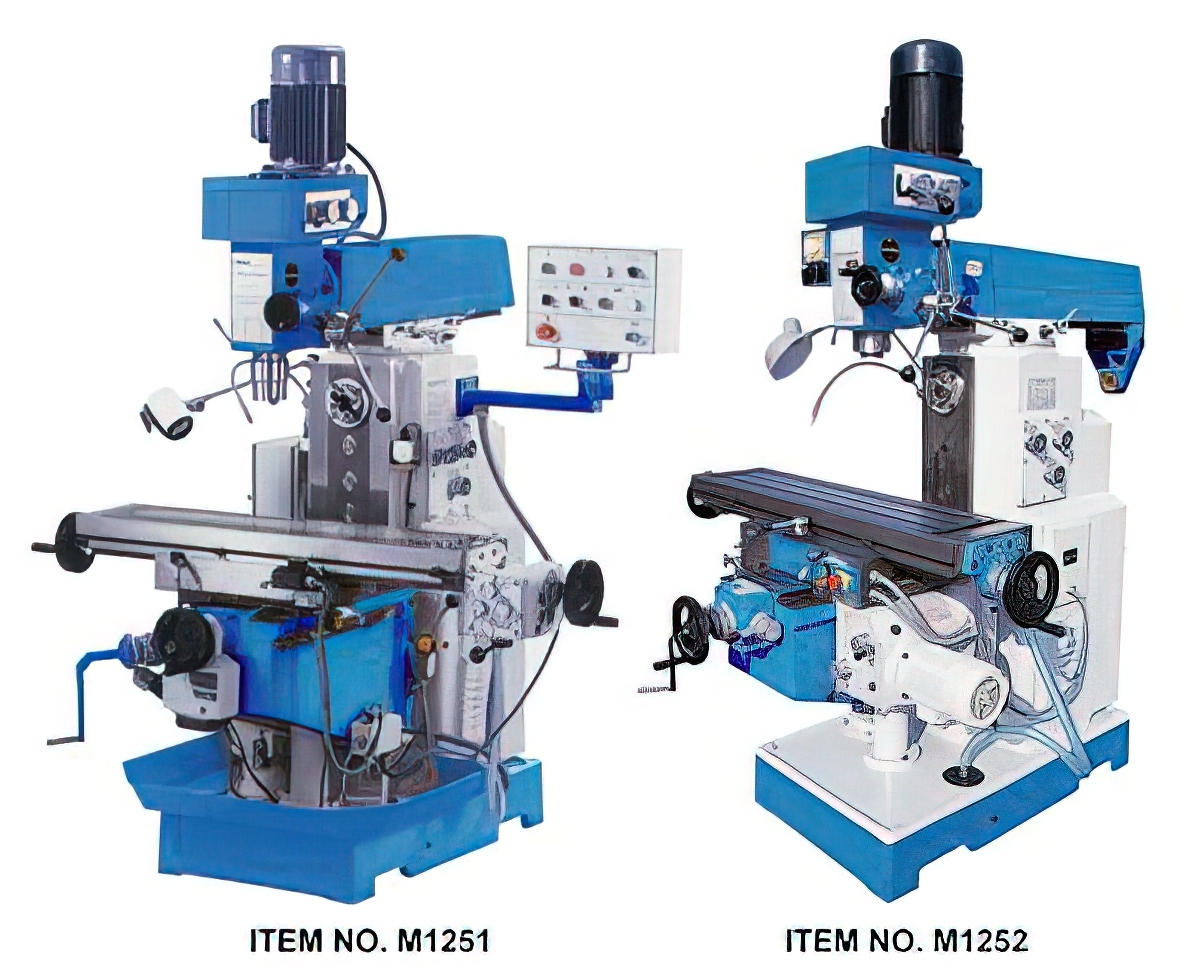

Model No. |
M6350 |
||
|
Item No. |
M1251 |
M1252 |
M1253 |
|
Specifications |
|||
|
Table size |
1120x260 mm |
||
|
Table travel (X,Y) |
600x270 mm |
||
|
Knee travel |
330 mm |
||
|
Table power feed speed range (X) |
－ |
24 ~ 402 mm/min |
24 ~ 402 mm/min |
|
Table power feed speed range (Y) |
－ |
24 ~ 402 mm/min |
24 ~ 402 mm/min |
|
Knee rapid speed |
－ |
－ |
400 mm/min |
|
T-slot |
3 x 14 - 63 mm |
||
|
Tabel swivel angle (optional) |
± 45° |
||
|
Ram travel |
650 mm |
||
|
Vertical Spindle: |
|||
|
Distance spindle nose to table |
100-460 mm |
||
|
Spindle taper |
ISO40 |
||
|
Spindle stroke |
120 mm |
||
|
Step of spindle speeds |
8 |
||
|
Range of spindle speeds |
115~1750 rpm |
||
|
Spindle motor |
0.85/1.5 kw |
||
|
Head swivel (L&R) |
± 45° |
||
|
Horizontal Spindle: |
|||
|
Spindle taper |
ISO40 |
||
|
Step of spindle speeds |
12 |
||
|
Range of spindle speeds |
38~1310 rpm |
||
|
Spindle motor |
2.2 kw |
||
|
Distance spindle center to table |
0 ~ 330 mm |
||
|
Distance Spindle cneter to ram |
180 mm |
||
|
Overall Dimension (mm) |
1580x1330x2250 |
1655x1450x2150 |
1655x1450x2150 |
|
Net weight |
1350 kg |
1500 kg |
1500 kg |
