Features:
- Heavy duty type
- With two position handles

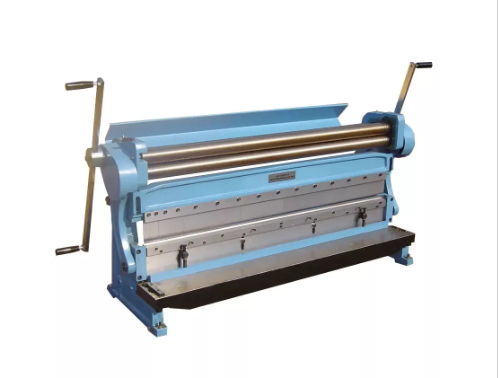

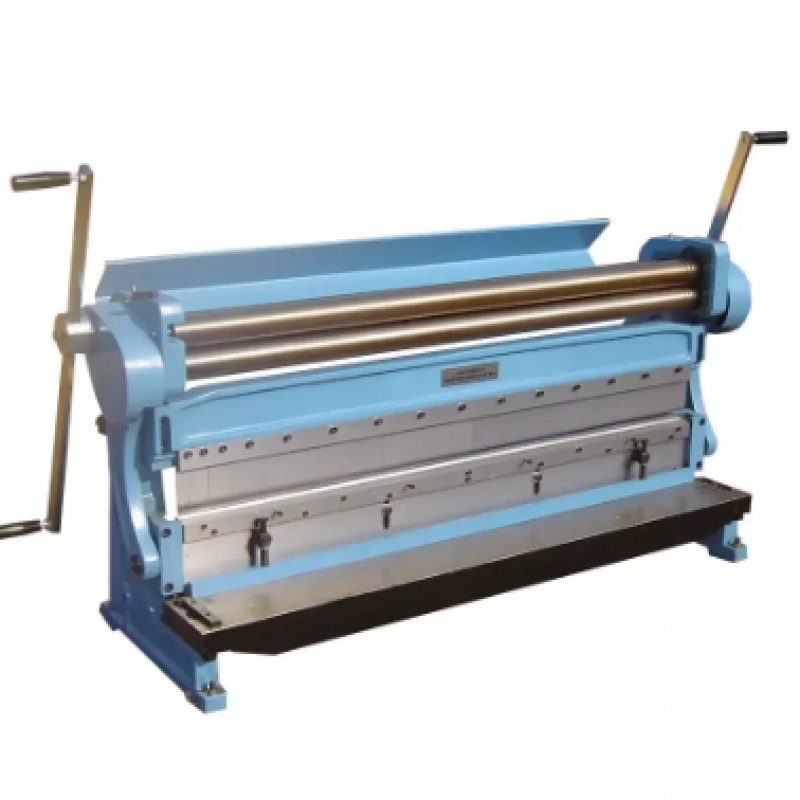

- Combination shear, brake and roll in one compact machine
- Heavy-duty type with capacity up to 1.5mm
- Folding with max. Angle of 90°
- A back gauge is included to help with repeatability
- Press brake has hardened adjustable dies that allows the fabricator to make certain boxes and pans
- Slip rolls has hardened rolls with three wire grooves for small round rod
- The metal shear can cut at full capacity across the entire width of the machine
|
Model No. |
3-IN-1/1320*1.5 |
|
Item No. |
|
|
Specifications |
|
|
Bead width(mm) |
1067 mm |
|
Max. shearing thickness |
1.5 mm |
|
Max. bending thickness |
1.5 mm |
|
Max. bending angle |
90° |
|
Max. rolling thickness |
1.5 mm |
|
Min. rolling dia |
60 mm |
|
Packing size |
150x59x93 cm |
|
N.W./G.W. |
390/440 kg |
|
Standard Accessories: |
|
|
Back gauge |
|
|
Handles |
|
