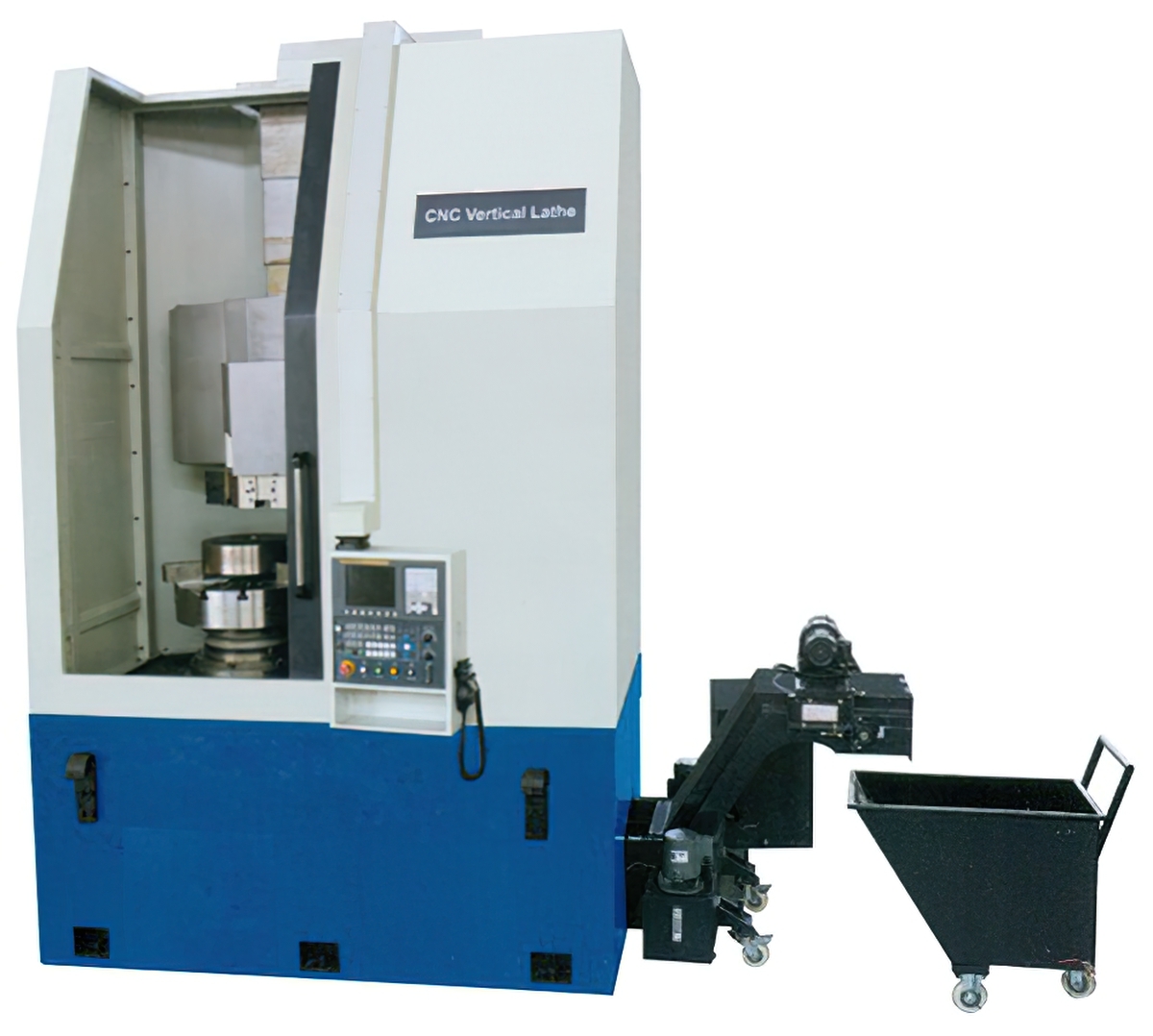

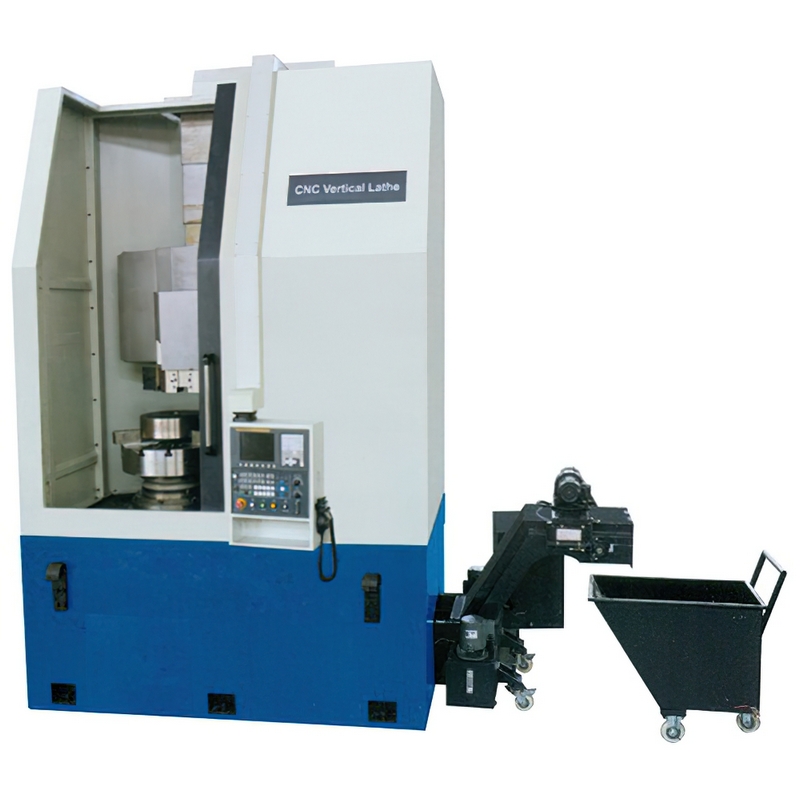

VERTICAL LATHE
Model No. |
VL460 / L460L |
VL650 / VL650L |
VL850 / VL850L |
Max.swing |
Φ530 mm |
Φ900 mm |
Φ1000 mm |
Max. cutting diameter |
Φ500 mm |
Φ650 mm |
Φ850 mm |
Max.height of turning |
430 mm |
650 mm |
800 mm |
Spindle nose |
A2 - 8 |
A2 -11 |
A2 -11 |
Front spindle bearing 1D |
120 mm |
Φ180 mm |
Φ220mm |
Spindle speed range |
100-2000 mm |
50 -2000 r/min. |
50 -1200 r/min. |
Steps of spindle speed |
Variable |
2steps (Variable for each step) |
Variable |
Chuck dia. |
12" |
20" |
21" |
Travel of Xaxis |
-50; +250 mm |
-60; +640 mm |
-50; +600 mm |
Travel of Z axis |
450 mm |
650 mm |
900 mm |
Rapid feed of X axis |
8 m/min. |
12 m/min. |
12 m/min. |
Rapid feed of Zaxis |
10 m/min. |
16 m/min. |
16 m/min |
Type of tool stations |
Hydraulic |
Hydraulic |
Hydraulic |
Number of tool stations |
8 |
8 |
8 |
Tool shank size (square) |
25 x 25 mm |
32 x 32 mm |
32 x 32 mm |
Tool shank size (round) |
Φ40 mm |
Φ50 mm |
Φ50 mm |
Main motor |
11KW |
22/26 kw |
30/37 kw |
Servo motor of X axis |
16 Nm |
22 Nm |
22 Nm |
Servo motor of Z axis |
21 Nm |
22 Nm |
22 Nm |
Hydraulic pump motor |
1.5 kw / 2.2 kw |
1.5 kw / 2.2 kw |
1.5 kw / 2.2 kw |
Coolant pump motor |
90W |
370W x 2 |
370W x 2 |
Overall dimensilns(L x W x G) |
1590 x 2670 x 2545 mm |
2970 x 2440 x 3350 mm |
3170 x 2300 x 3750 mm |
Net weight |
4500 kg |
11500 kg |
14000 kg |
