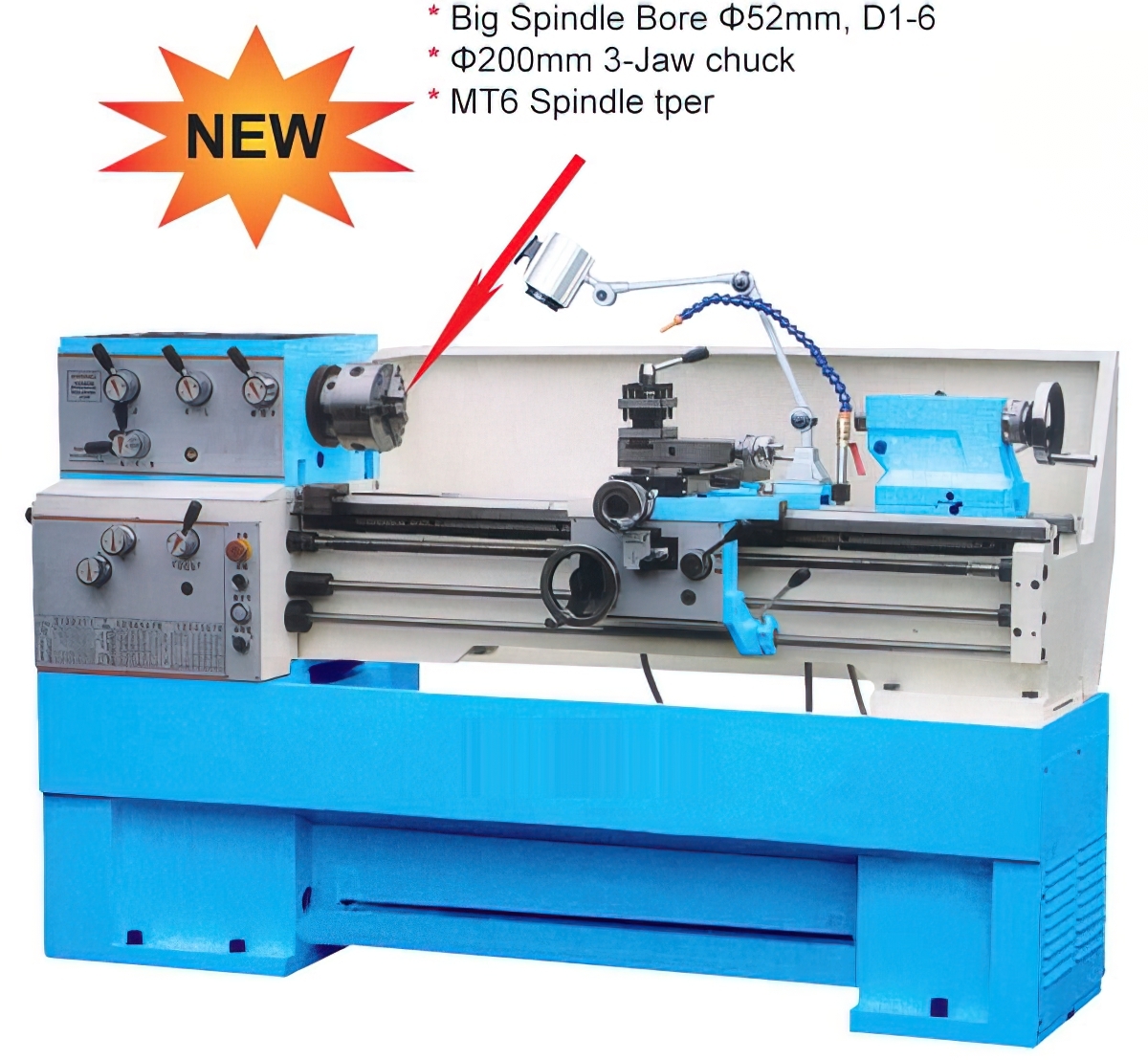

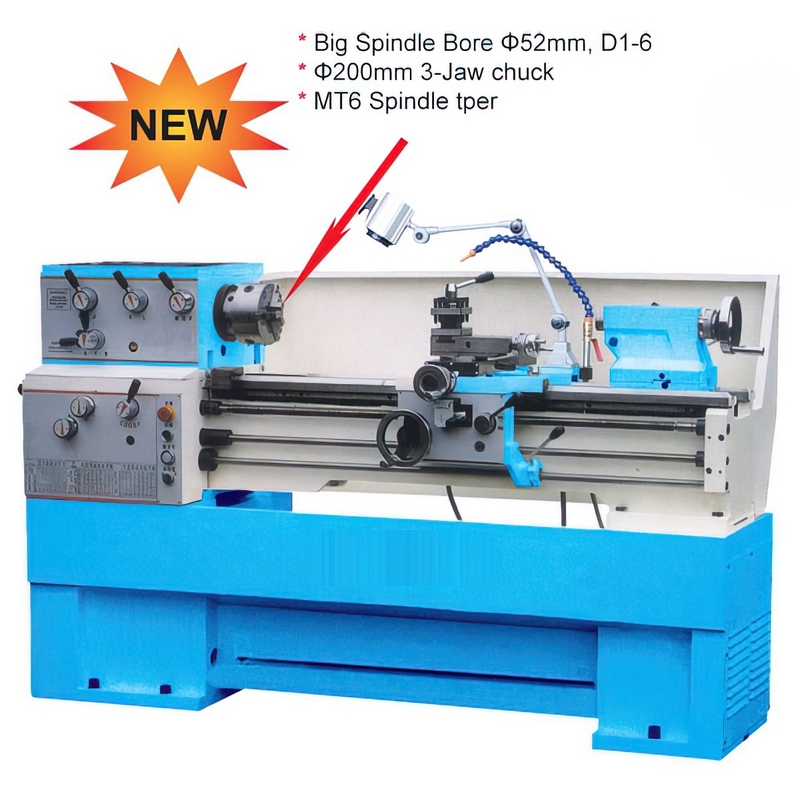

TN360B Bench Lathe Machine

Category: Engine Lathe

FEATURE:
●Induction hardened, precision ground V-way bed.
●D1-6 spindle with 52mm large spindle bore 12 steps of spindle speeds
●Hardened, precision ground gears in headstock.
●High precision directly mounting chuck.
●Carriage mounted spindle control lever.
●Automatic feed and threading are fully interlocked.
●Tailstock may be offset for turning tapers.
●One-piece casting iron base allows heavy cuts.
●Tolerance test certificate, test flow chart included.



  Model No.

TN360B

    Item No.



 Specifications

 Distance between centers

750mm / 1000 mm

 Swing over bed

410 mm

 Swing over gap

580 mm

 Swing over cross slide

224 mm

 Bed width

260 mm

 Taper of spindle bore

MT6

 Spindle nose

D1- 6

 Spindle bore

52 mm

 Step of spindle speeds

12

 Range of spindle speeds

40~1800 rpm

 Range of cross feeds

0.015~0.220 mm/r

 Range of longitudinal feeds

0.03~0.688 mm/r

 Range of inch threads

4~112 T.P.I

 Range of metric threads

0.45~7.5 mm

 Top slide travel

92 mm

 Cross slide travel

224 mm

 Tailstock quill travel

120 mm

 Taper of tailstock quill

MT3

 Main motor

2.4 kw

 Packing size

1990 x 860 x 1510 mm

 Net weight

1200 kg





 Standard Accessories

 Optional Accessories

 3-jaw chuck (200mm)

 Quick change tool post

 4-jaw chuck (250mm)

 Turning tools

 Face plate (250mm)

 Leadscrew cover

 Steady rest

 Chuck guard

 Follow rest

 Tool post cover

 Splash guard

 Digital readout system

 Stand & oil tray

 Taper turning attachment

 Micro carriage stop

 Collet attachment

 Halogen work lamp



 Toolbox & tools



 Coolant system



 Foot brake
