FEATURES
●Most economical, widely useful hobby lathe.
●Spindle is supported by high quality tapered roller bearing.
●Automatic feed and threading are fully interlocked.
●Tailstock may be offset for turning tapers.
●High precision chuck.
●Adjustable gibs for slideways.
●Large, 38mm (1-1/2”) spindle bore.
●Gear drive power.
●Gearbox gets left and right hand threads to cut.
●Removable gap / increase your swing.
●Precise cuts with cross & longitudinal power feed.
●Induction hardened grinded bedway.
●Easy access to safety switches.
|

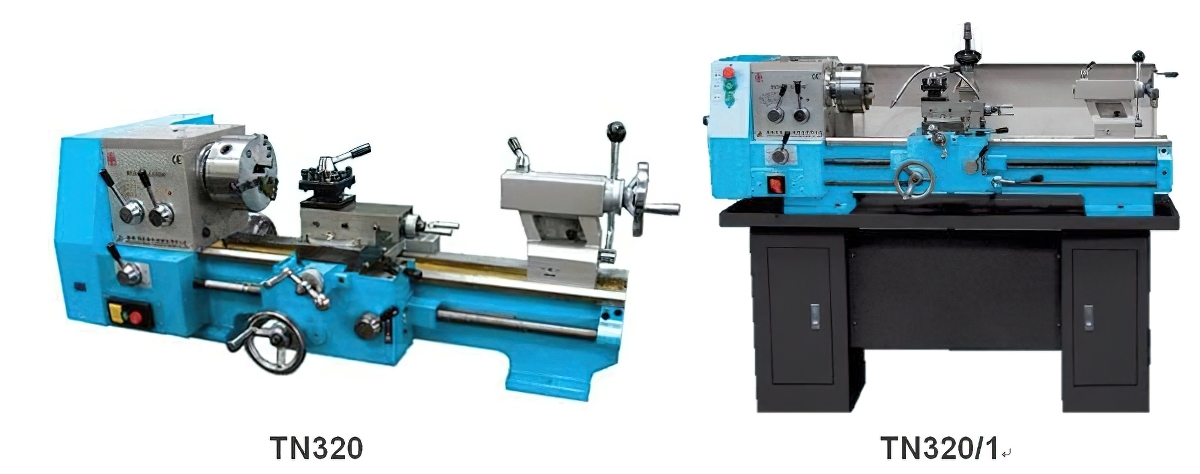

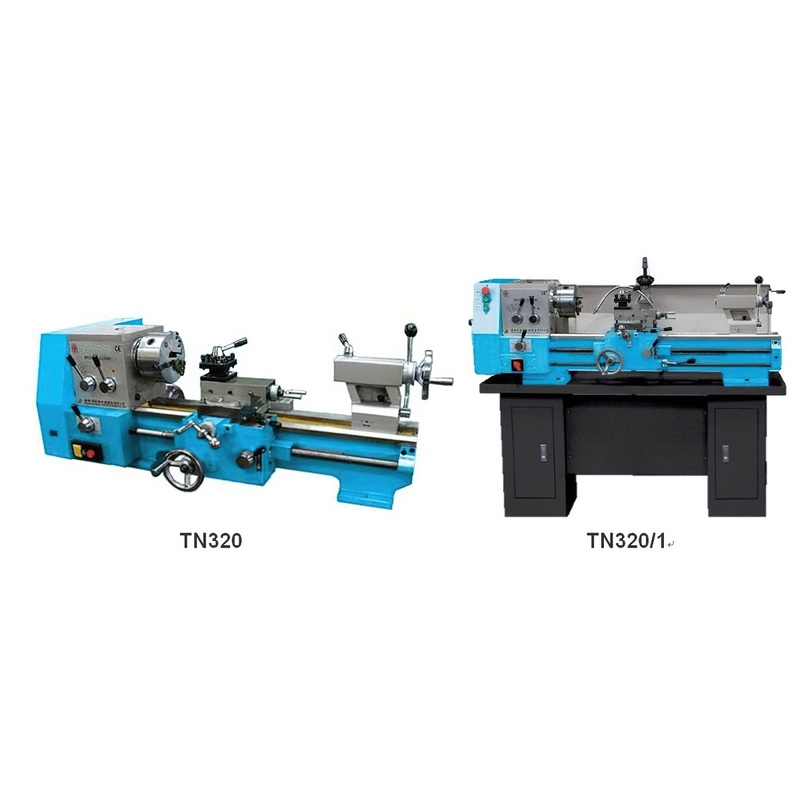

Model No. |
TL320 |
TN320 |
|
Item No. |
|
|
|
Swing over bed |
320mm |
320mm |
|
Distance between centers |
600mm |
750mm |
|
Swing over carriage |
200mm |
200mm |
|
Lathe chuck Dia. |
3 jaw self-centering 170mm |
3 jaw self-centering 170mm |
|
Width of bed |
|
|
|
Hole through spindle |
38mm |
38mm |
|
Spindle taper |
MT5 |
MT5 |
|
Tailstock taper |
MT3 |
MT3 |
|
Spindle speed |
12(60-1600rpm) |
12(60-1600rpm) |
|
Motor output power |
750W |
1100W |
|
Range of metric threads |
15 (0.5 – 4mm) |
15 (0.5 – 4mm) |
|
Range of imperial threads |
23 (11-40 1/n”) |
23 (11-40 1/n”) |
|
Longitudinal feed rates |
0.1 – 1.5mm/r |
0.1 – 1.5mm/r |
|
Cross feed rates |
0.022 – 03mm/r |
0.022 – 03mm/r |
|
Tailstock quill travel |
80mm |
80mm |
|
Overall dimension (LxWxH) |
1310 x 625 x 450mm |
1510x625x1150mm |
|
Weight (Net/Gross) |
220 / 280kg |
320 / 380kg |
|
Packing size (LxWxH) |
1370 x 730 x 730mm |
1580 x 820 x 1460mm |
|
Standard Accessories |
Optional Accessories |
|
3 jaw chuck Tool post Change gear, Dead center Open-end wrench Allen wrench Machine stand (only for TN320) Splash guard (only for TN320) Oil tray (only for TN320) |
4 jaw chuck, Steady rest, Follow rest, Face plate, Live center,Turning tool set, Leadscrew guard, chuck guard, Drill chuck + Drill arbor, Back plate, Chuck guard Machine stand (only for TL320) Splash guard (only for TL320) Oil tray (only for TL320) |
