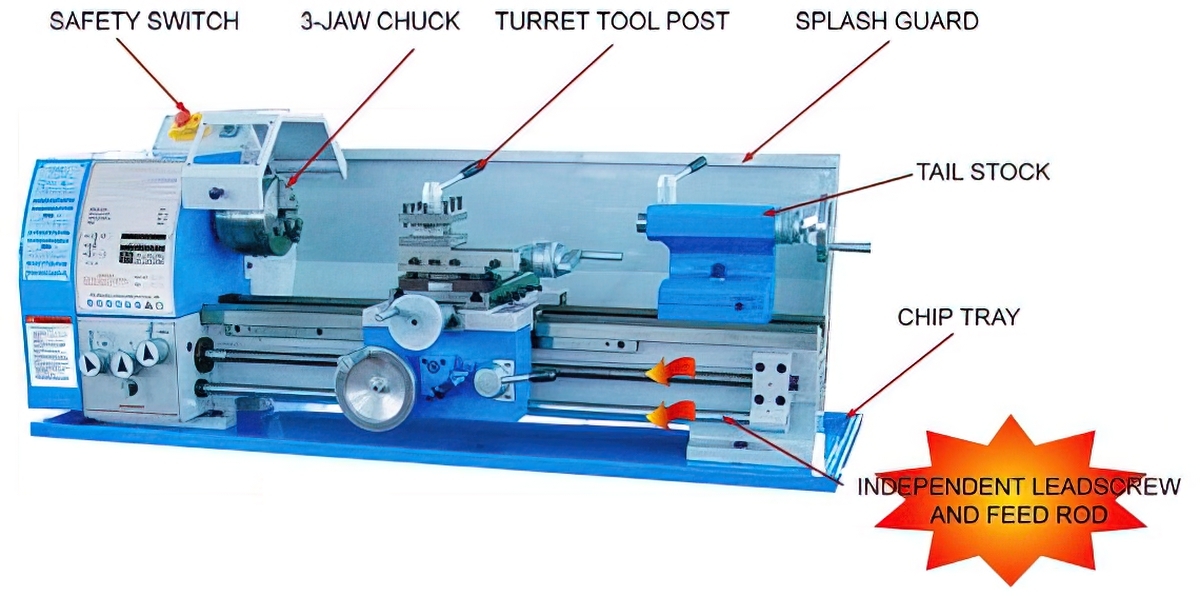

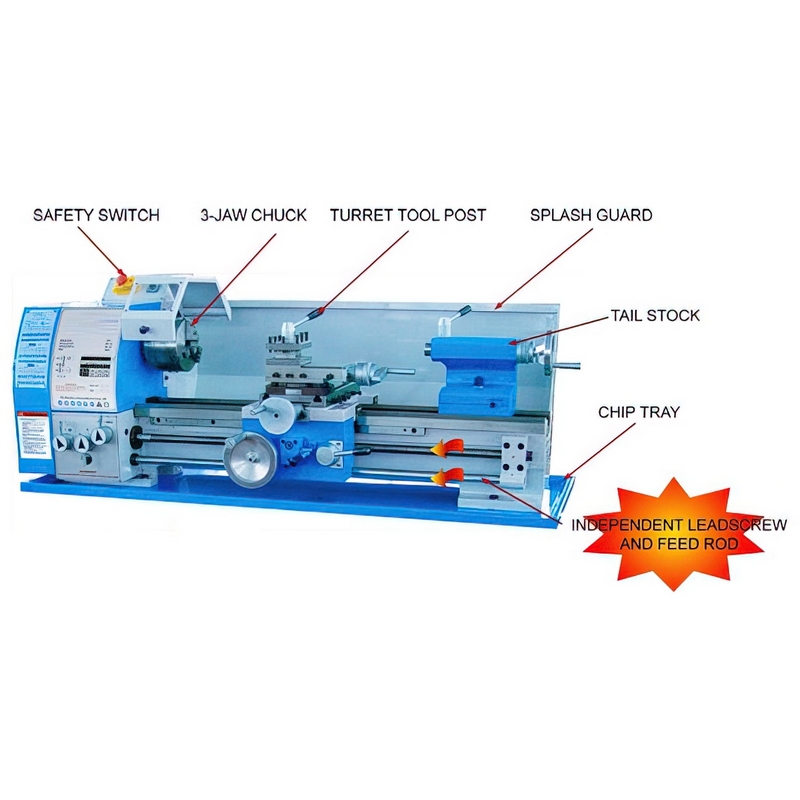

FEATURE:
● V-way bed is hardened and precision ground.
●Super width bedway gets more capacity.
● Independent leadscrew and feedshaft.
● Power cross feed function.
● Automatic feed and threading are fully interlocked.
● T-slotted cross slide.
● Right & left hand threads cutting is available.
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test flow chart included.
|
Model No. |
TN280-F |
|
Item No. |
|
|
Specifications |
|
|
Distance between centers |
700 mm |
|
Swing over bed |
280 mm |
|
Swing over cross slide |
165 mm |
|
Width of bed |
180 mm |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
26 mm |
|
Number of spindle speeds |
6 |
|
Range of spindle speeds |
125-2000 |
|
Range of cross feeds |
0.02-0.28 mm/r |
|
Range of longitudinal feeds |
0.07-0.40 mm/r |
|
Range of inch threads |
8-56 T.P.I |
|
Range of metric threads |
0.2-3.5 mm |
|
Top slide travel |
50 mm |
|
Cross slide travel |
140 mm |
|
Tailstock quill travel |
80 mm |
|
Taper of tailstock quill |
MT2 |
|
Motor |
0.75 kw (AC) |
|
Packing size |
1400x680x700 mm |
|
Net weight |
210 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (125mm) |
4-jaw chuck (125mm) |
|
Splash guard |
Backplate |
|
Chip tray |
Follow rest |
|
Toolbox & tools |
Steady rest |
|
Speed counter |
Face plate (270mm) |
|
|
ER25 collet chuck |
|
|
Collet holder |
|
|
Turning tools |
|
|
Quick change tool post |
|
|
Threading dial |
|
|
Stand |
