Model No.

LTG-M2

LTG-M3

　Item No.

　Specifications

　Grinding wheel distance of up and down

60 mm

90 mm

　Speed

2800 rpm

　Motor

250W / 380V

　About worktable diameter

140 mm

75 mm

　Grinding wheel

Φ125 x 50 xΦ32 mm

　Dimension

380 x 340 x 460 mm

440 x 340 x 440 mm

　Weight

45 kg

78 kg

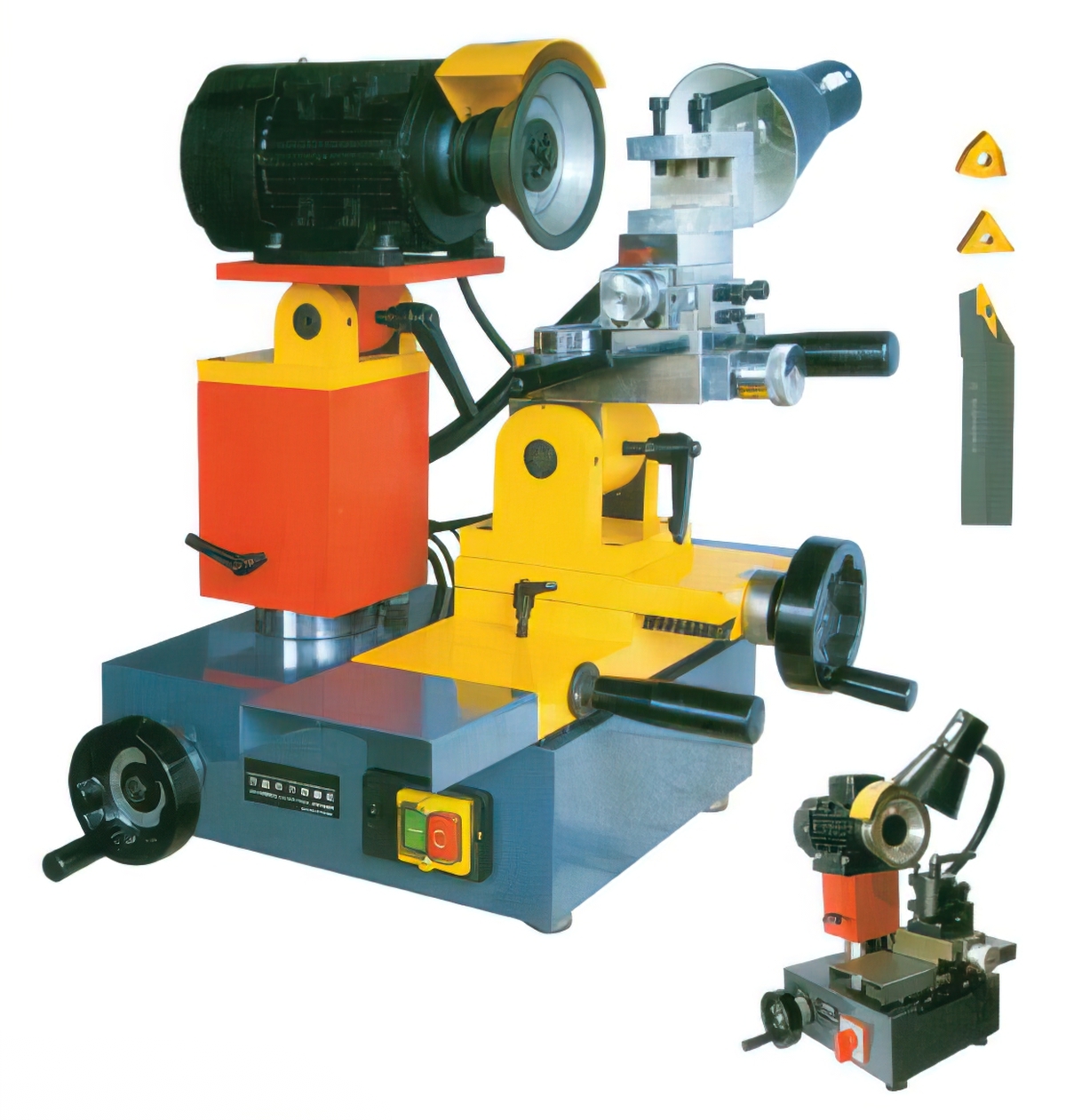

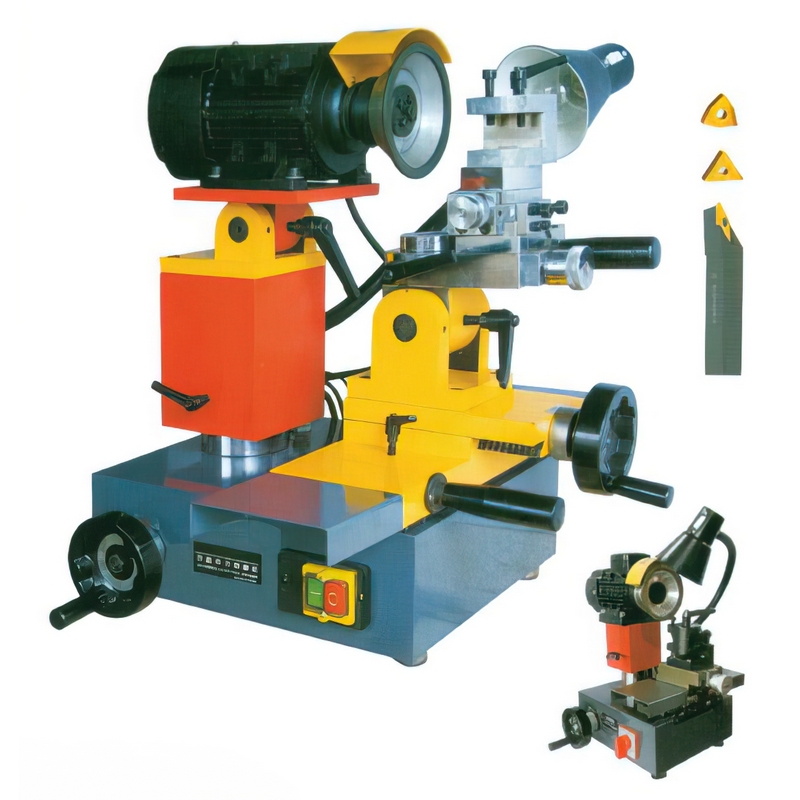

　● M3 is able to grind many kinds of cutters, such as tipped tool, boring cutter, plough
　　cutter, and so on. With high precision and easy operation.

　● Worktable uses high precision straight linear guide ralis, good movement, high
　　stability, steady bad platform, dexterous operation.
