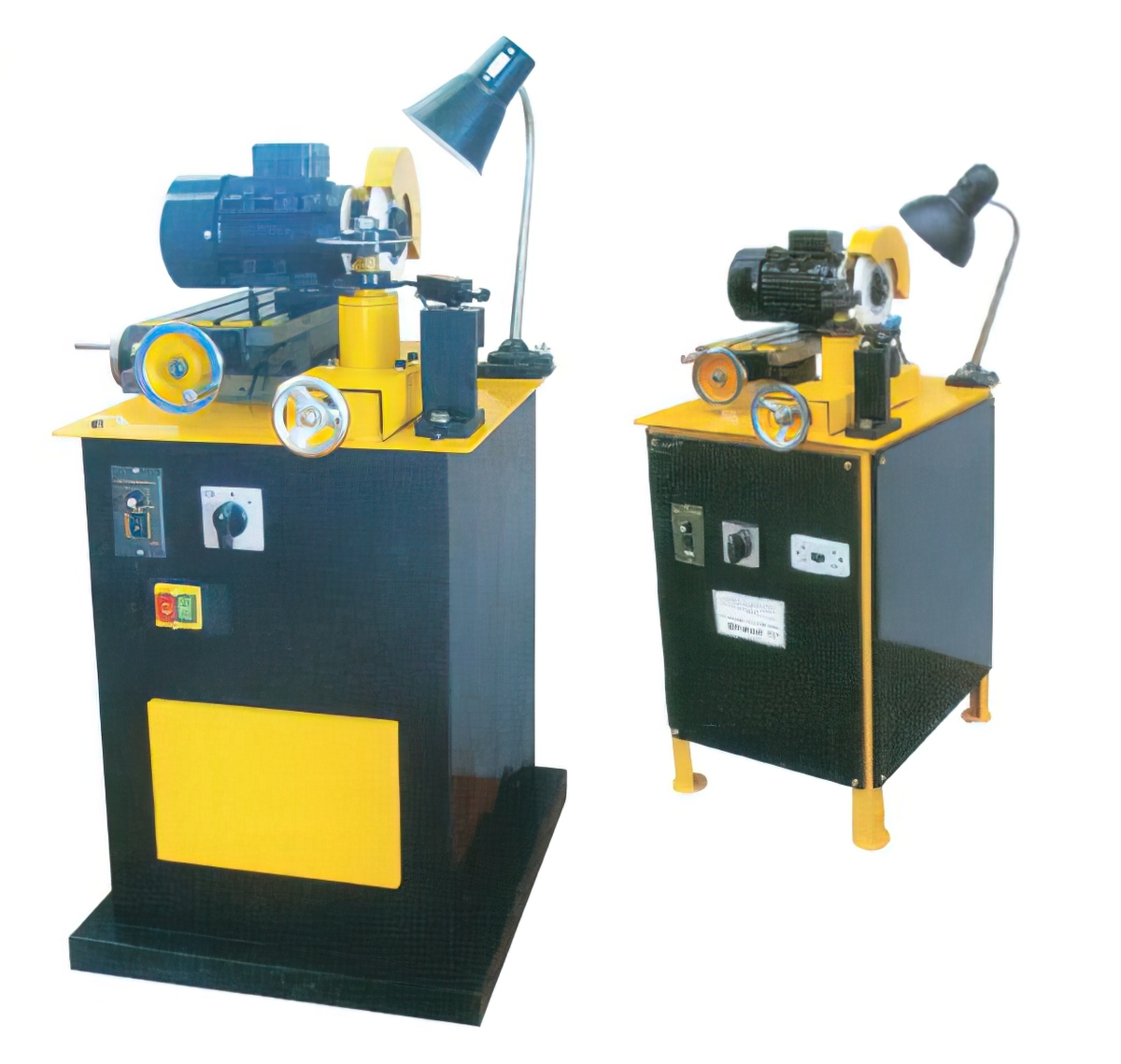

SBG-Q5 SBG-Q6 SBG-Q7 SAW BLADE SHARPENER
|
Model No. |
SBG-Q5 SBG-Q6 SBG-Q7 |
|
Item No. |
|
|
Specifications |
|
|
Cutter Diameter |
Φ60(Φ25) ~ Φ400(Φ500) mm |
|
Speed |
45 teeth / min. |
|
Voltage |
220V / 380V |
|
Power |
0.75 kw / 0.09 kw |
|
Dimension |
600 x 600 x 1000 mm |
|
Weight |
75 kg |
|
● This machine is applicable to sharpen thin saw blade and carve tooth. |
|
● It can sharpen horniness alloy and whitc steel saw blade. |
|
● Q6 the motor can rotate up and down which can sharpen gear front and back angle. |
|
● Q7 electrical motor parallel running which developed by ourselves can |
