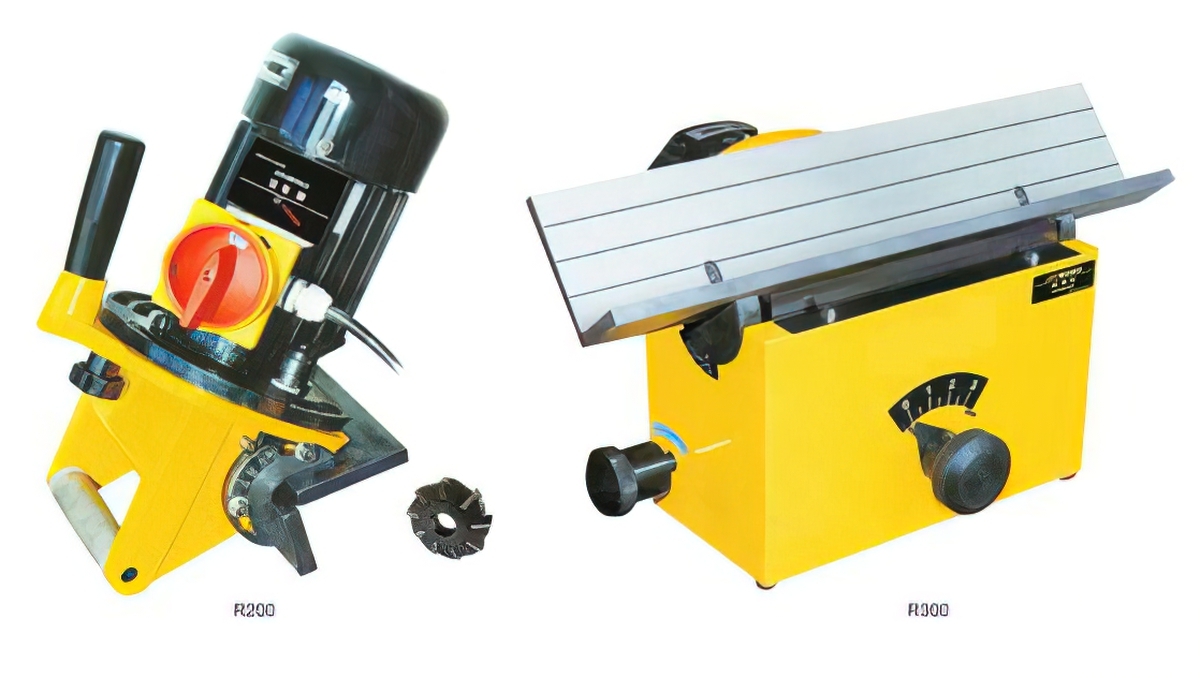

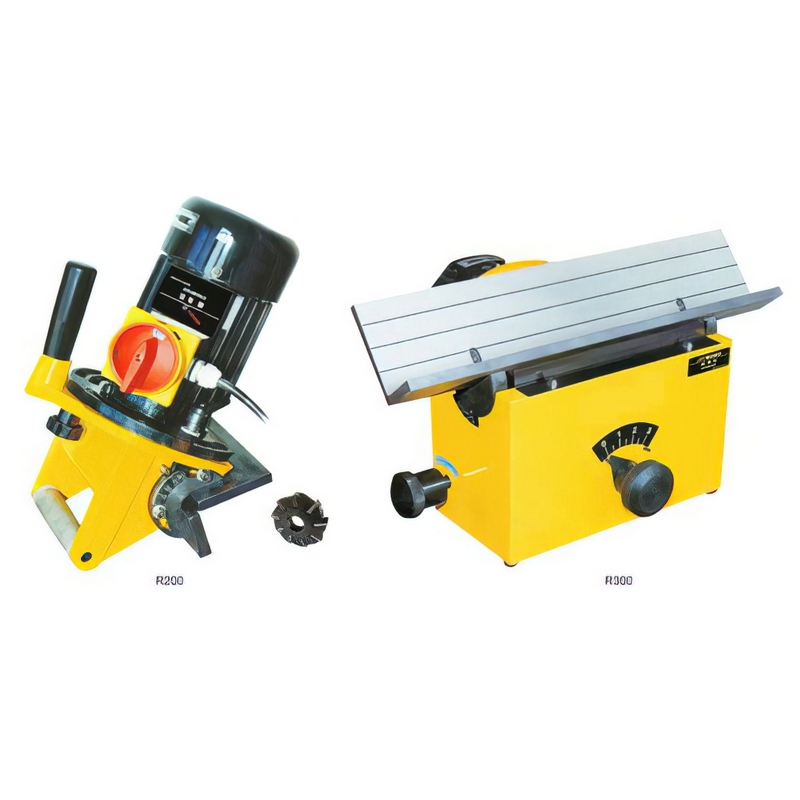

Model No.

R200

R300

　Item No.

　Specifications

　Chamfering angle

15° ~ 45°

15° ~ 45°

　Motor

370 w

750 w

　Speed

2800 rpm

2800 rpm

　Chamfering height

0 ~ 9 mm

0 ~ 3 (6) mm

　Dimension

350 x 250 x 200 mm

500 x 320 x 320 mm

　Weight

12 kg

35 kg

　● Applying to non-heat treatment workpiece, for example various mould.
