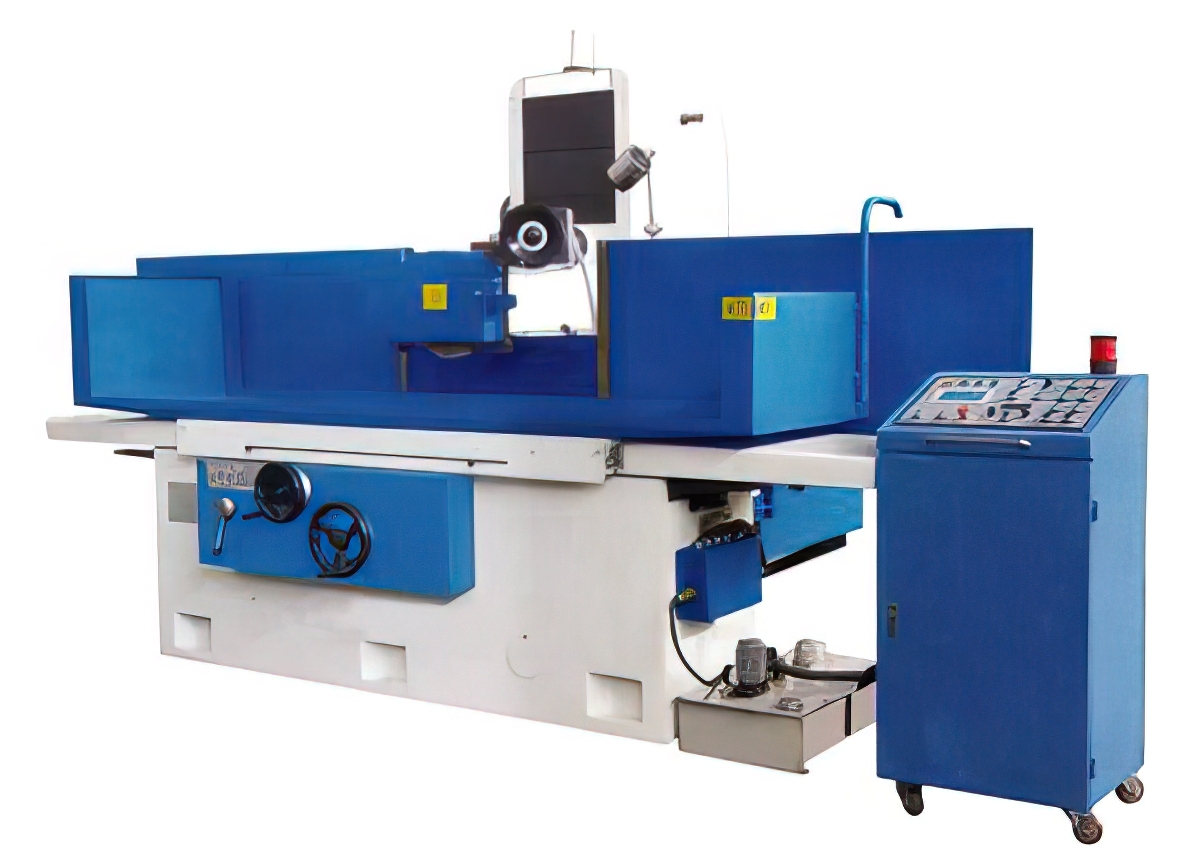

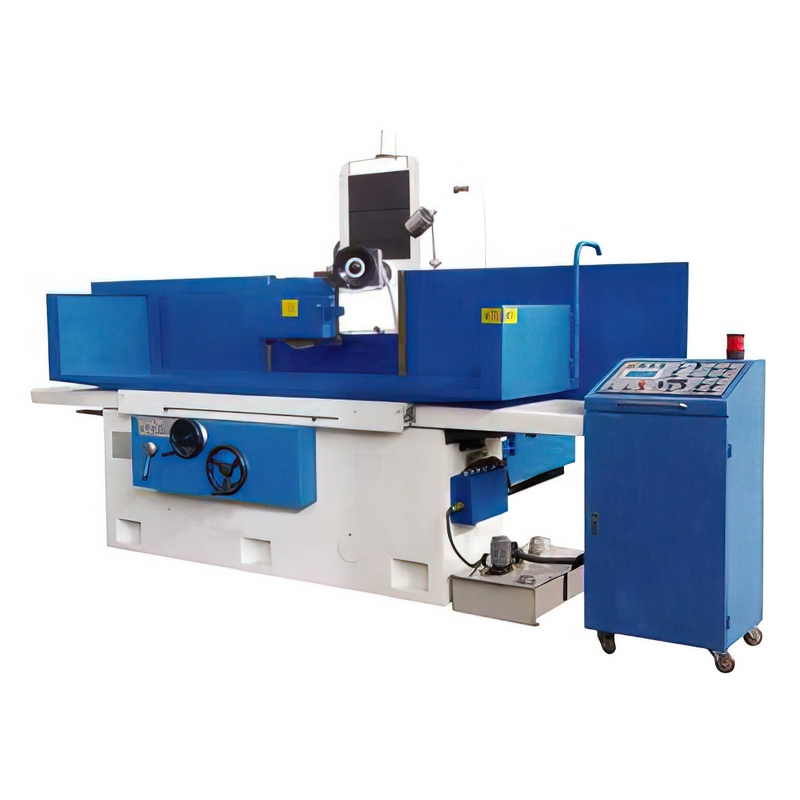

SG-SERIES COLUMN MOVING SURFACE GRINDER
|
Model No. |
SG60120AHR |
SG60160AHR |
|
|
Item No. |
|
|
|
|
Specifications |
|
|
|
|
Table size (mm) |
610x1200 |
610x1600 |
|
|
Max. grinding (mm) |
610x1200 |
610x1600 |
|
|
Max. distance from table to spinddle center |
600 mm |
||
|
Magnetic chuck size (optional) (mm) |
600x1000x1 |
600x800x2 |
|
|
Tabe longitudinal movement speed |
5 - 25 m/min. |
||
|
Wheelhead |
Auto feed |
1 - 30 mm |
|
|
Rapid speed |
1.25 m/min. |
||
|
Feed of hand wheel |
0.02 mm/gra |
||
|
Wheelhead |
Auto feed |
- / 0.005, 0.01, 0.015, 0.02, 0.03, 0.04 (only for AHD model) |
|
|
Rapid feed |
230 m/min. |
||
|
Feed of hand wheel |
0.002 mm/gra |
||
|
Grinding wheel |
Speed |
1450 rpm |
|
|
Size (ODxWxID) |
355 x (20-50) x127 mm |
||
|
Spindle motor |
7.5 kw |
||
|
Max loading capacity (include magnetic chuck) |
970 kg |
1230 kg |
|
|
Total rated power |
14 kw |
||
|
Height of machine |
2390 (include the packing base) mm |
||
|
Floor space (mm) |
4740 x 2750 mm |
5340 x 2750 mm |
|
|
Net weight |
6500 kg |
7000 kg |
|
|
Standard accessories. |
|
● Coolant tank Working lamp ● Flange and wheel extracioi ● Build in electro magnetic chuck controller |
|
● Wheel dresser base (without diamond pen ) ● PLC auto grinding controller (only for AHD model) |
|
● Balance arbor standard-wheel ● Balance stand ● Luxurious electro magnetic chuck controller |
|
● Leveling wedge and foundation bolt |
|
Optional accessories: |
|
● Electro magnetic chuck ● Manual parallel wheel dresser ● Coolant with magnetic separator and paper filter |
|
● Coolant tank with paper filter ● Coolant tank with macgnetic separator |
