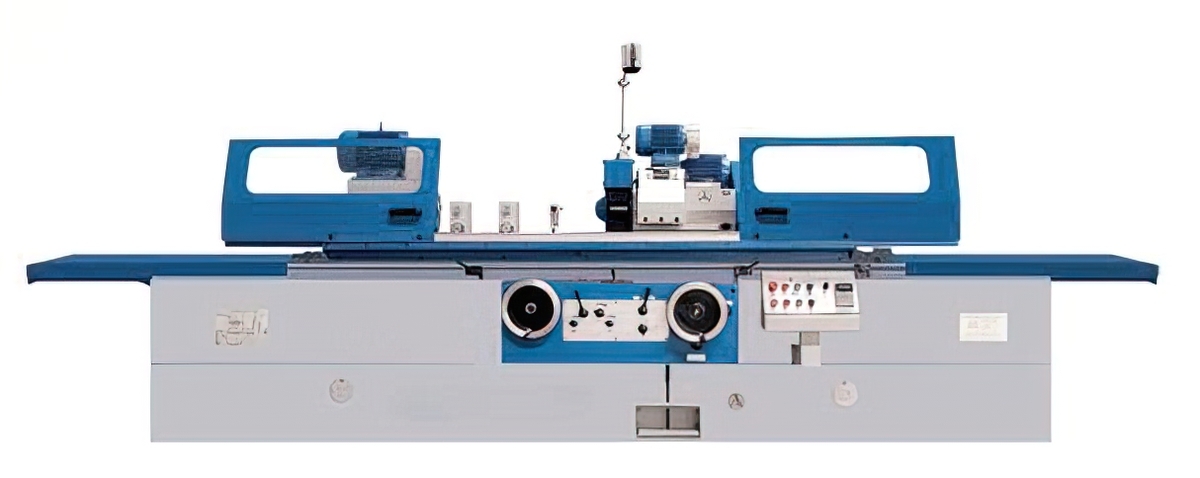

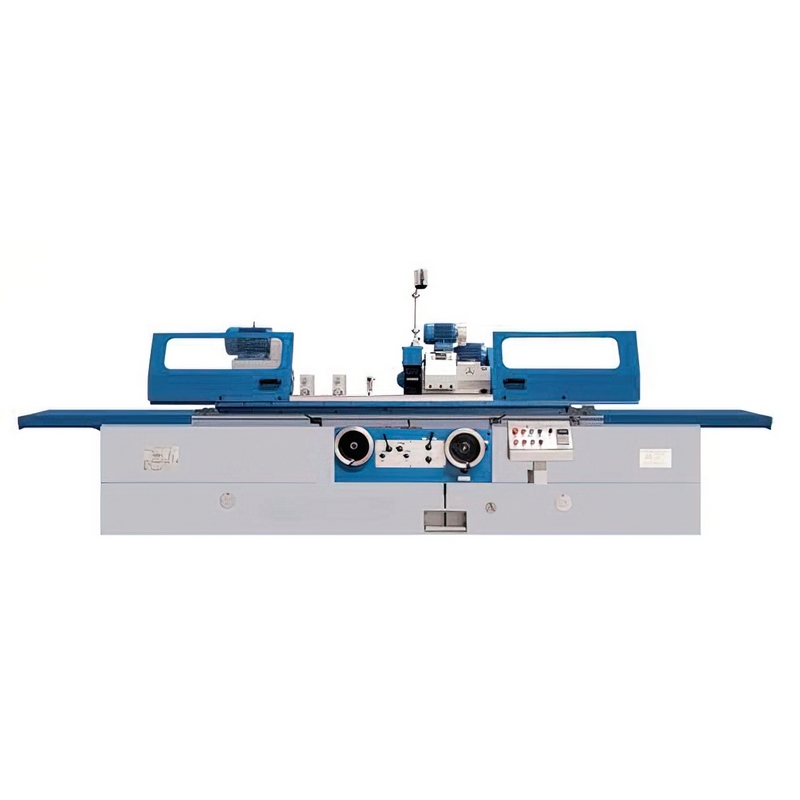

M14 SERIES UNIVERSAL CYLINDRICAL GRINDING
|
Model No. |
M1420 |
MW1420 |
|
|
Item No. |
G2120-21 |
G2122-23 |
|
|
Specifications |
|
|
|
|
Distance between centers (mm) |
520/750 |
500/750 |
|
|
Center height (mm) |
118 mm |
135 mm |
|
|
Dia. Ground (O.D) (mm) |
8~200 mm |
5~200 |
|
|
Dia. Ground (I.D) (mm) |
13~80 mm |
25~100 |
|
|
Max. length ground (O.D) (mm) |
520/750 mm |
500/750 mm |
|
|
Max. length ground (I.D) (mm) |
125 mm |
125 mm |
|
|
Max. weight of work piece (mm) |
50 mm |
100 mm |
|
|
Workhead |
|
|
|
|
Swiveling angle |
+90° |
+90° |
|
|
Center taper (MT) |
3 MT |
4 MT |
|
|
Spindle speed (r/min) |
60/85/230/120/170/460 |
25~380 stepless |
|
|
Wheelhead |
|
|
|
|
Wheel spindle speed |
1820 r/min. |
1670 r/min. |
|
|
Wheelhead rapid travel |
20 mm |
50 mm |
|
|
Max. travel |
150 mm |
205 mm |
|
|
Swiveling angle |
-180° ~ +30° |
+10° |
|
|
Hand feed per. rev (mm) |
1 mm |
rough:2 fine:0.5 |
|
|
Hand feed per. gra (mm) |
0.00125 |
Rough:0.01 fine:0.0025 |
|
|
Wheel size (O.DxWxlD) (mm) |
400 x 40 x 203 mm |
400 x 50 x 203 mm |
|
|
Peripheral velocity |
35 (m/s) |
35 m/s |
|
|
Internal grinding device |
|
|
|
|
Spindle speed (r/min.) |
1400 r/min. |
10000/15000 r/min. |
|
|
Dimension of wheel (mm) |
Max: 50x25x13 min:17x20x6 |
Max: 50x25x13 min:17x20x6 |
|
|
Table |
|
|
|
|
Hand feed per. rev |
6 mm |
6 mm |
|
|
Max swiveling angle |
Clockwise |
5°(520) 3°(750) |
3° |
|
Anticlockwise |
9° |
9°(500) 8°(750) |
|
|
Longitudinal speed range of table |
0.1- 4 m/min. |
0.1~ 4 m/min. |
|
|
Tailstock |
|
|
|
|
Center tape |
3 MT |
4 MT |
|
|
Quill travel |
25 mm |
30 mm |
|
|
Motor |
|
|
|
|
Wheelhead motor power (kw) |
3 kw |
4 kw |
|
|
Internal grinding (kw) |
The same motor with wheelhead motor |
1.1 kw |
|
|
Workhead motor power (kw) |
0.25/0.37 kw |
1.1 kw |
|
|
Machine |
|
|
|
|
Gross weight (t) |
2.4t (520) 2.9t (750) |
4.1t (500) 4.3t (750) |
|
|
Packing dimension (cm) |
192x145x205(520) |
235x203x205(520) |
|
