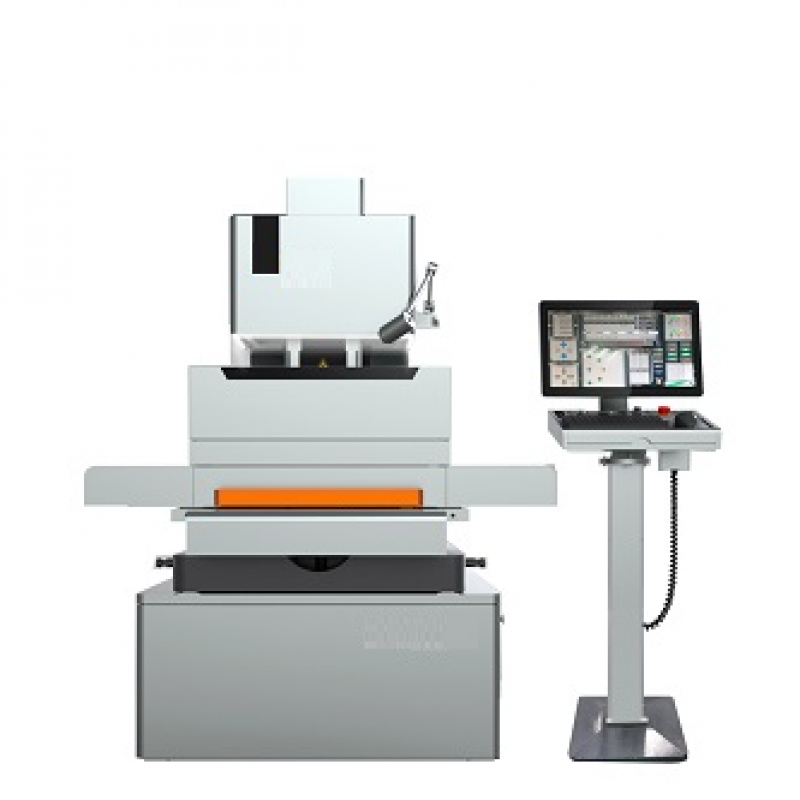

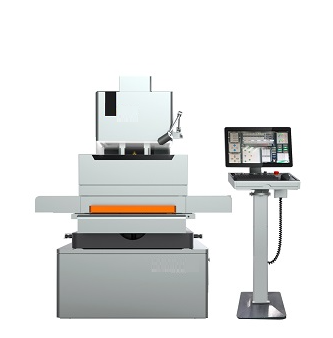

Model No. |
JMD703-500CNC |
|
Item No. |
|
|
Specifications |
|
|
Work table size |
410 x 590mm |
|
Work table travel |
400 x 500mm |
|
Load of table |
300kg |
|
Electrode diameter |
0.2-3.0mm |
|
Water tank capacity |
30L |
|
Machine weight |
1500kg |
|
Machine dimensions |
1379 x 1429 x 1886mm |
|
Packing dimensions |
1680 x 1730 x 2150mm |
| Control type | CNC control |
|
Universal Parameters |
|
|
Drilling Depth |
0-200mm |
|
Z axis travel |
300+(320)mm |
|
Max. drilling speed |
60mm2/min |
|
Max. working current |
30A |
|
Max. power comsumption |
5kva |
|
Voltage |
220-415V/50Hz |
|
Working solution |
Water/Saponification |
|
Function of setting depth |
Yes |
|
Z axis travel control |
Electric motor |
