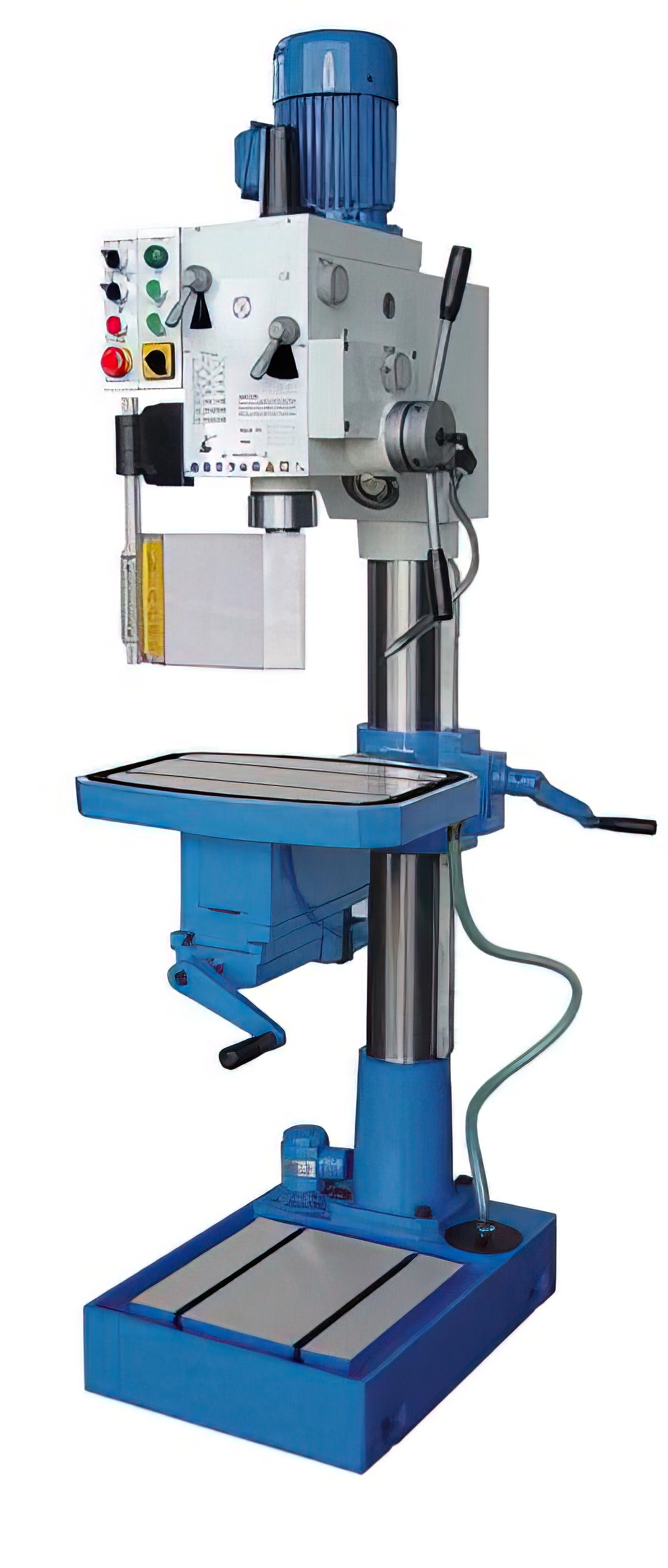

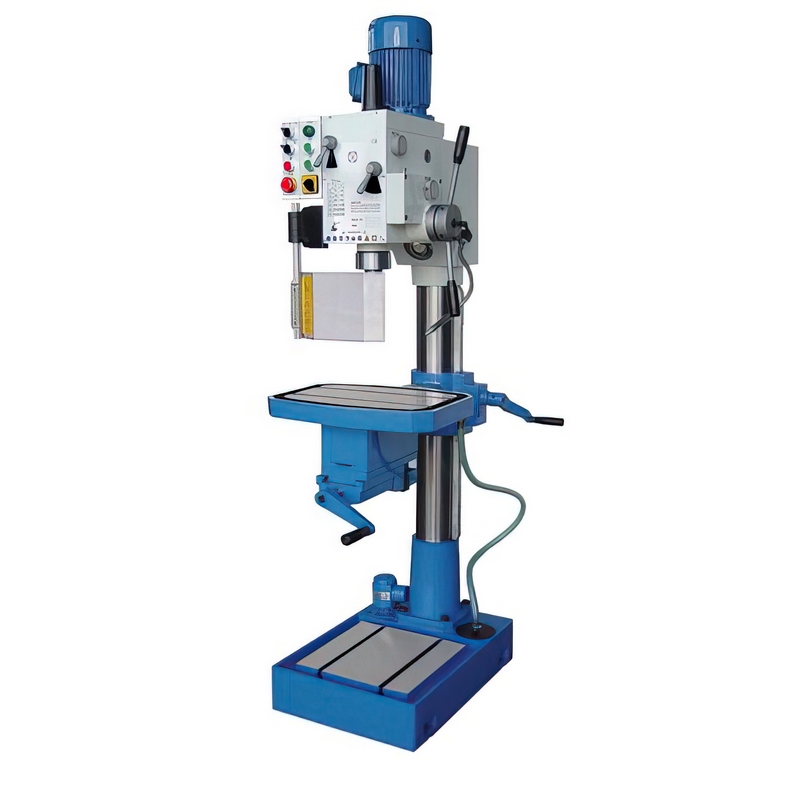

Model No.

D5035

    Item No.

　Specifications

　Max. drilling capacity

Φ35 mm

　Spindle taper

MT3, MT4, R8

　Spindle stroke

130 mm

　Step of spindle speeds

12

　Range of spindle speeds

75 ~ 3200 rpm

　Spindle feed range

0.10/0.18/0.26 mm/rev.

　Diameter of column

125 mm

　Distance from spindle to column

320 mm

　Distance from spindle nose to table

85 ~ 685 mm

　Distance from spindle end to base

1140 mm

　Table size

500 x 360 mm

　T-slot

2 x 14 mm

　Base size

470 x 670 mm

　Main Motor

1.5 kw

　Coolant motor

60 w

　Packing size

570 x 810 x 2110 mm

　Net weight

400 kg
