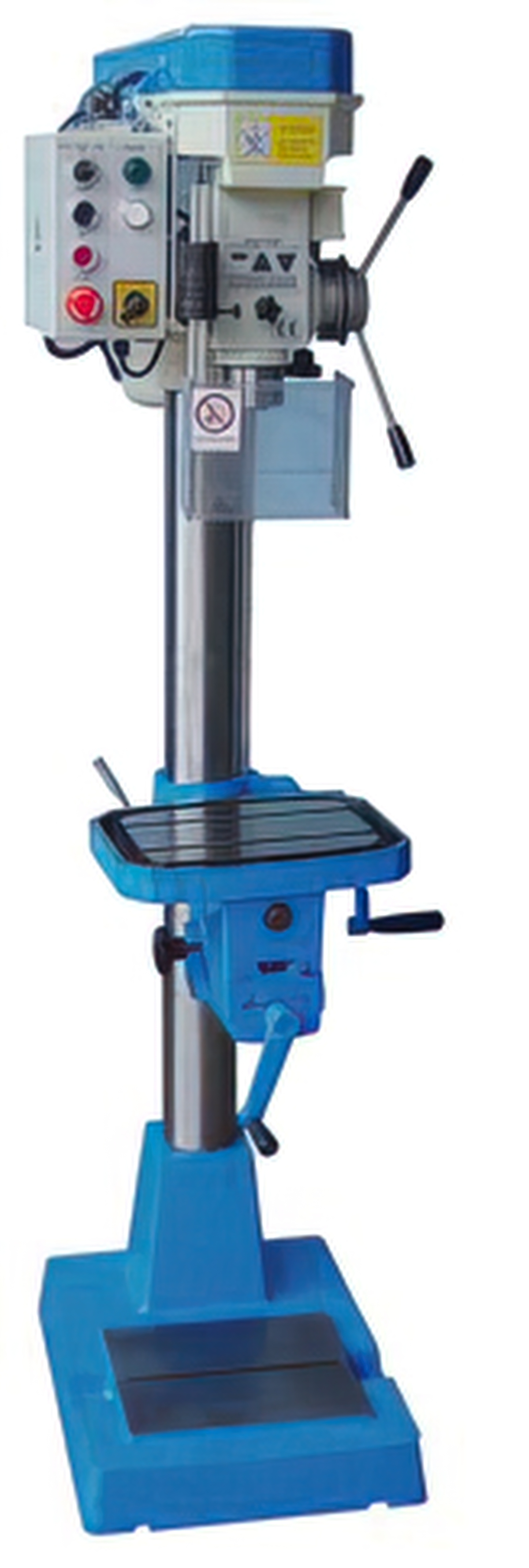

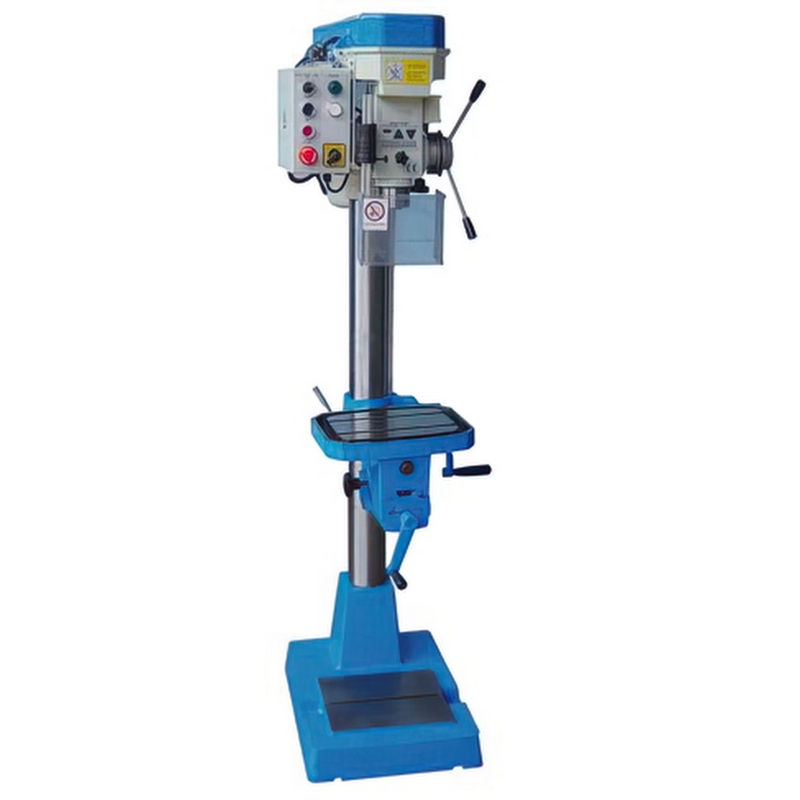

D5025 Vertical Drilling Machine

Category: Vertical Drilling Machine



 Model No.

D5025

    Item No.



 Specifications

 Max. drilling capacity (steel / Iron)

Φ25 / 20mm

 Max. tapping capacity (steel / Iron)

20 / 16mm

 Spindle taper

MT3

 Spindle stroke

100 mm

 Step of spindle speeds

16

 Range of spindle speeds

127-2380 rpm

 Distance from spindle axis to column

203 mm

 Distance from spindle nose to table

900 mm

 Distance from spindle end to base

1200 mm

 Table size

280x350 mm

 Table travel

750 mm

 T-slot

2x12-100 mm

 Base size

 Main Motor

1 kw

 Coolant motor

 Overall dimension

535x820x1700 mm

 Net weight

182 kg

Standard accessories: Draw bar, Adapter, Taper shank for drilling chuck, Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun

Optional:Vices
