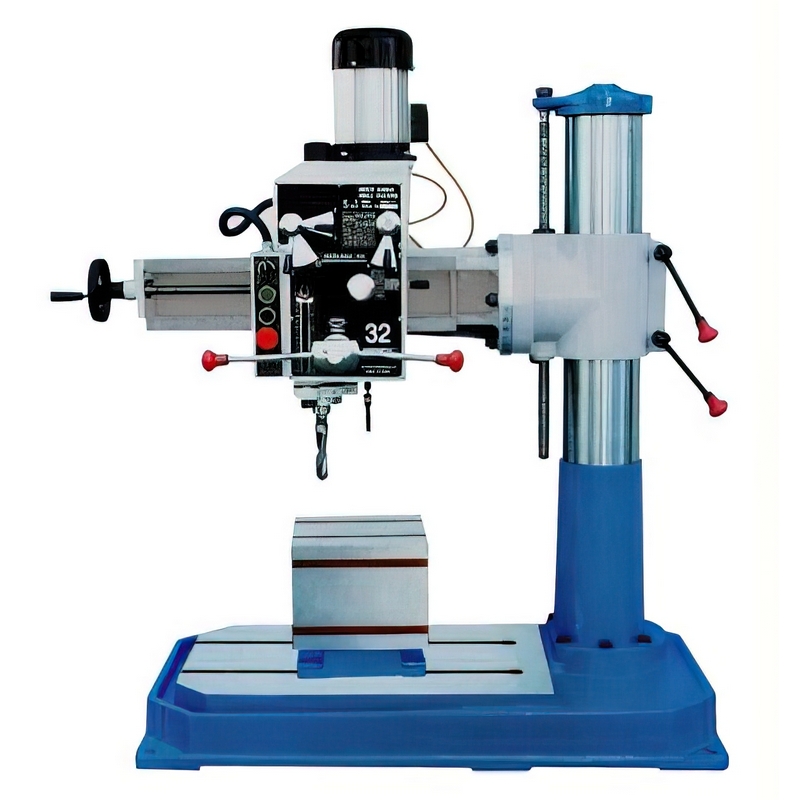

Model No.

RD3207

    Item No.

　Specifications

　Max. drilling capacity

Φ31.5 mm

　Max. tapping capacity

Φ20 mm (Cast iron) Φ16 mm (steel)

　Distance from spindle axis to column

300 ~ 700 mm

　Diameter of column

150 mm

　Spindle taper

MT3

　Spindle stroke

130 mm

　Step of spindle speeds

8

　Range of spindle speeds

100 ~ 1600 rpm

　Spindle feeds

0.08 0.14 0.23 mm/rev.

　Rotary angle of rocker in horizontal plane

360°

　Distance from spindle nose to base

275 ~ 680 mm

　Dimension of worktable

250 x 250 x 250 mm

　Base size

1050 x 550 x 120 mm

　Main Motor

750 w or 1 kw

　Overall size

1235 x 550 x 1195 mm

　Packing size

1220 x 620 x 1280 mm

　Net weight

310 kg
