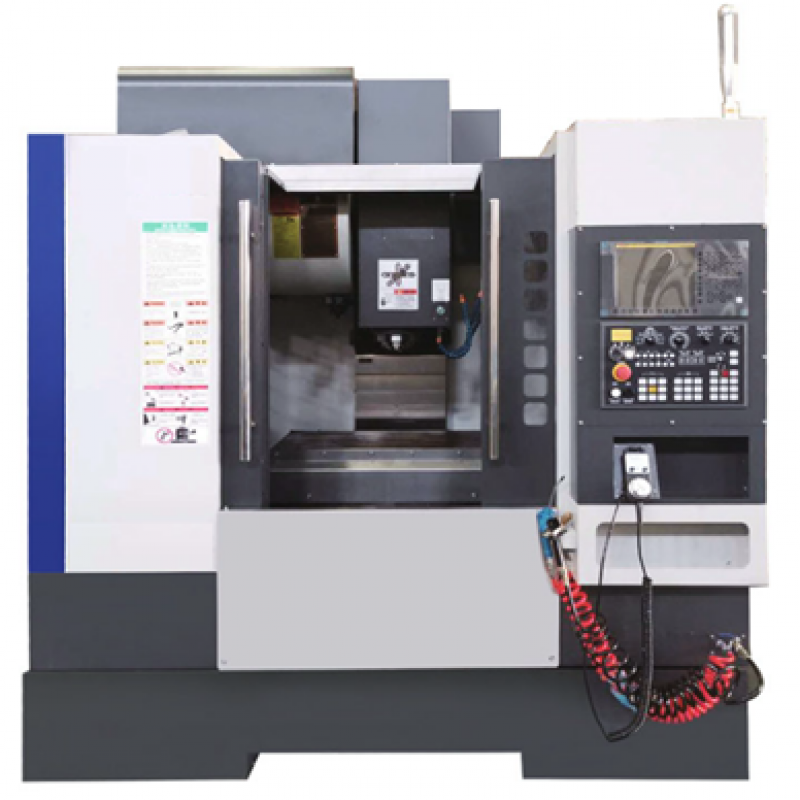

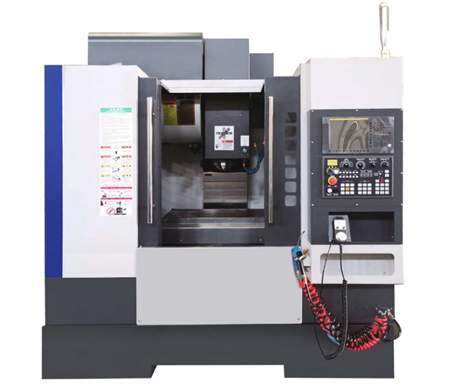

VMC series vertical machining center inherits the advantages of strong rigidity, symmetrical structure and strong stability of the foundation frame of the traditional vertical CNC milling machine, introduces the international advanced dynamic rigidity concept, and optimizes the design of the moving parts.
Features:
Machine torque, quick response characteristics, suitable for automotive, mold, aerospace, military, hardware and other mechanical processing needs.
Parts after a clamping can be completed milling, boring, drilling, tapping and other processing, with high precision.
|
Model No. |
VMC850S | VMC850 |
|
Item No. |
||
|
Specifications |
||
|
X travel |
800mm | 800mm |
|
Y travel |
500mm | 500mm |
|
Z travel |
500mm | 500mm |
|
Table size(L*w) |
900*500mm | 1000*500mm |
|
Max. loading weight |
500kg | 500kg |
|
Number-width*distance |
5-18*90mm | |
|
Max. distance from spindle nose to table surface |
120-620mm | 150-650mm |
|
Spindle center to Z axis guide surface |
550mm | 570mm |
|
Spindle motor power |
7.5/11kw |
|
|
Max. spindle speed |
10000 rpm |
|
|
Spindle taper |
BT40 |
|
|
3 axis rapid speed |
48/48/48 m/min |
|
|
Max. cutting speed |
10 m/min. |
|
|
Pull stud |
MAS403 BT40-45 |
|
|
ATC capacity |
Circular disc BT40-24T |
|
|
Max. diameter of tool*length |
Φ85*350mm |
|
|
Positioning accuracy |
± 0. 004 mm |
|
|
Repeatability accuracy |
± 0. 003 mm |
|
|
CNC system |
FANUC/SIEMENS/MITSUBISHI optional |
|
|
Machine size(L*W*H) |
2100*2600*2650mm | 2700*2500*2650mm |
|
Net weight |
5000 kg | 5300 kg |
