Model No. |
SKZ61160 | SKZ61180 | SKZ61200 | SKZ61220 | SKZ61240 | SKZ61250 |
|
Item No. |
||||||
|
Specifications |
||||||
|
Max. swing over bed |
1600mm | 1800mm | 2000mm | 2200mm | 2400mm | 2500mm |
|
Max. swing over cross slide |
900mm | 1100mm | 1300mm | 1500mm | 1700mm | 1800mm |
|
Distance between centers |
3m 4m 5m 6m 8m 10m 12m 16m | |||||
|
Width of bed |
1620mm |
|||||
|
Spindle hole |
Φ85 | |||||
|
Diameter of tailstock steeve |
300mm |
|||||
|
Max weight of guidway |
32ton | |||||
|
Max. distance of moving tool-post |
||||||
|
Longitude |
Top distance 3000mm - 1600mm | |||||
|
Transverse |
800mm |
|||||
|
Spindle speeds(Number) |
(0.8-18) (2.4-54) （7.2-160）(Three speed hydraulic infinitely variable speed) r/min | |||||
|
Main motor power |
80kw | |||||
|
Speed of high-speed movement |
||||||
|
Longitude |
3000mm/min | |||||
|
Transverse |
2000mm/min | |||||
|
Tool numbers on tool-post |
4/6/8 optional or frame carrige (manual tool change) | |||||
|
Positioning accuracy |
||||||
|
Longitude |
0.05mm | |||||
|
Transverse |
0.03mm | |||||
| Repeatablity | ||||||
|
Longitude |
0.025mm | |||||
|
Transverse |
0.012mm | |||||
|
Repeatablity accuracy of tool-post |
0.005mm | |||||
|
Net. weight |
||||||
|
Floor space(L*W*H) |
||||||

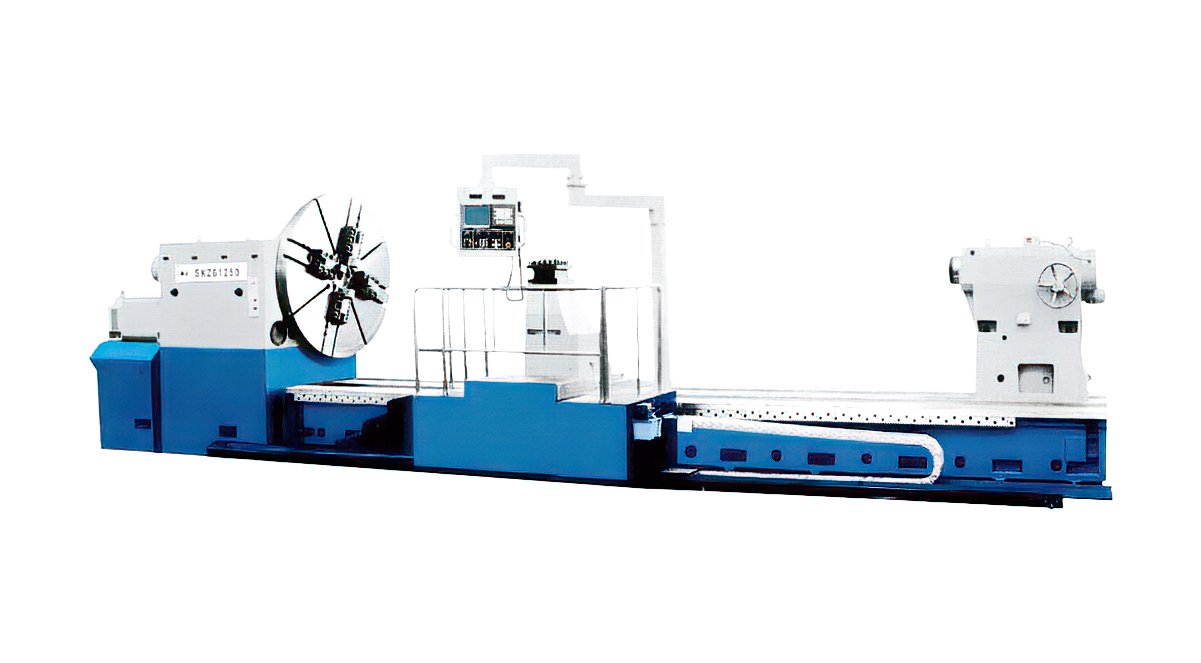

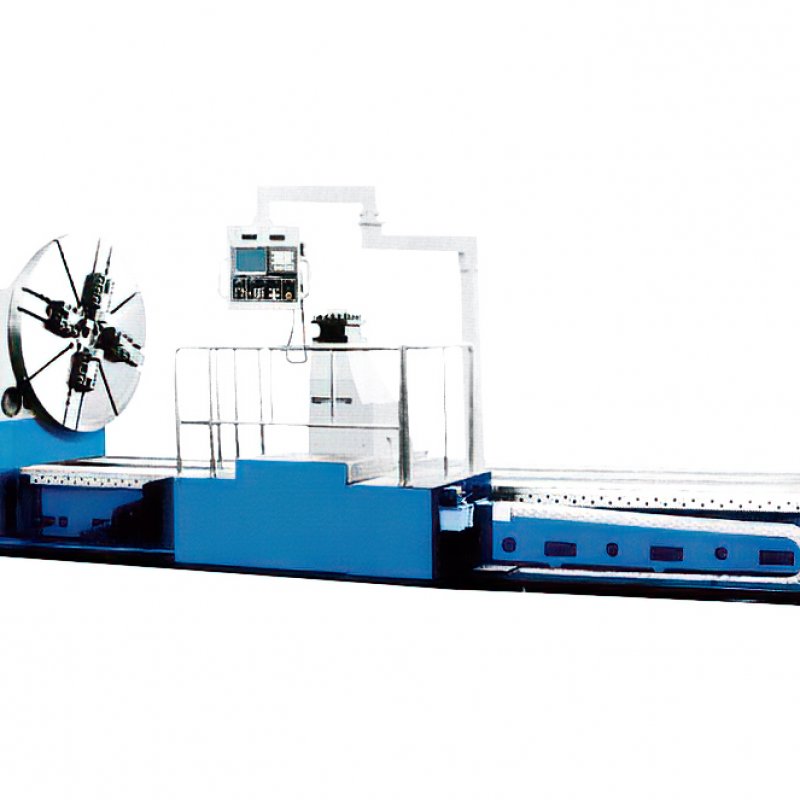

SKZ61660/61180/61200/61220/61240/61250 CNC Machine
Category: CNC Lathe
