Model No. |
TX2150 |
TX2500 |
|
Item No. |
|
|
|
Specifications |
||
|
Boring range |
400mm |
|
|
Max. boring head travel |
1000mm |
|
|
Distance spindle center to column |
410mm |
|
|
Max. distance boring slid to table |
1500mm |
|
|
Spindle speed(stepless) |
50-1200r/min |
|
|
Boring feed(stepless) |
14-900mm/min |
|
|
Max. boring depth |
500mm |
|
|
Table surface |
500*2150mm |
600*2550mm |
|
Table travel lengthwise |
2150mm |
2700mm |
|
Max. milling length |
1800mm |
2300mm |
|
Table speed(stepless) |
0-2000mm/min |
|
|
Table movement crosswise |
200mm |
|
|
Max. workpiece on machine |
1200kg |
2500kg |
|
Milling width |
315mm |
400mm |
|
Optional milling width |
400/500mm |
315/500mm |
|
Max. distance between outer cylinder centres |
1850mm |
2550mm |
|
Spindle motor |
5.5kw |
|
|
Motor for boring feed(servo motor) |
2kw |
|
|
Motor for table feed(servo motor) |
2kw |
|
|
Amount of working table T slot |
5 |
|
|
Work height required |
2860mm |
|
|
Height of column |
2100mm |
|
|
Total length of machine |
5100mm |
5900mm |
|
Total width of machine |
1700mm |
1900mm |
| Working space required |
5100*1700mm |
6000*1900mm |
| Net. Weight approx |
5000kg |
5800kg |
| Shipping weight approx.(wooden box) |
5600kg |
6600kg |
| Shipping space required |
3550*1924*2580mm |
4350*2150*2580mm |
| Shipping volume |
18.02m³ |
23.19m³ |
|
|
||

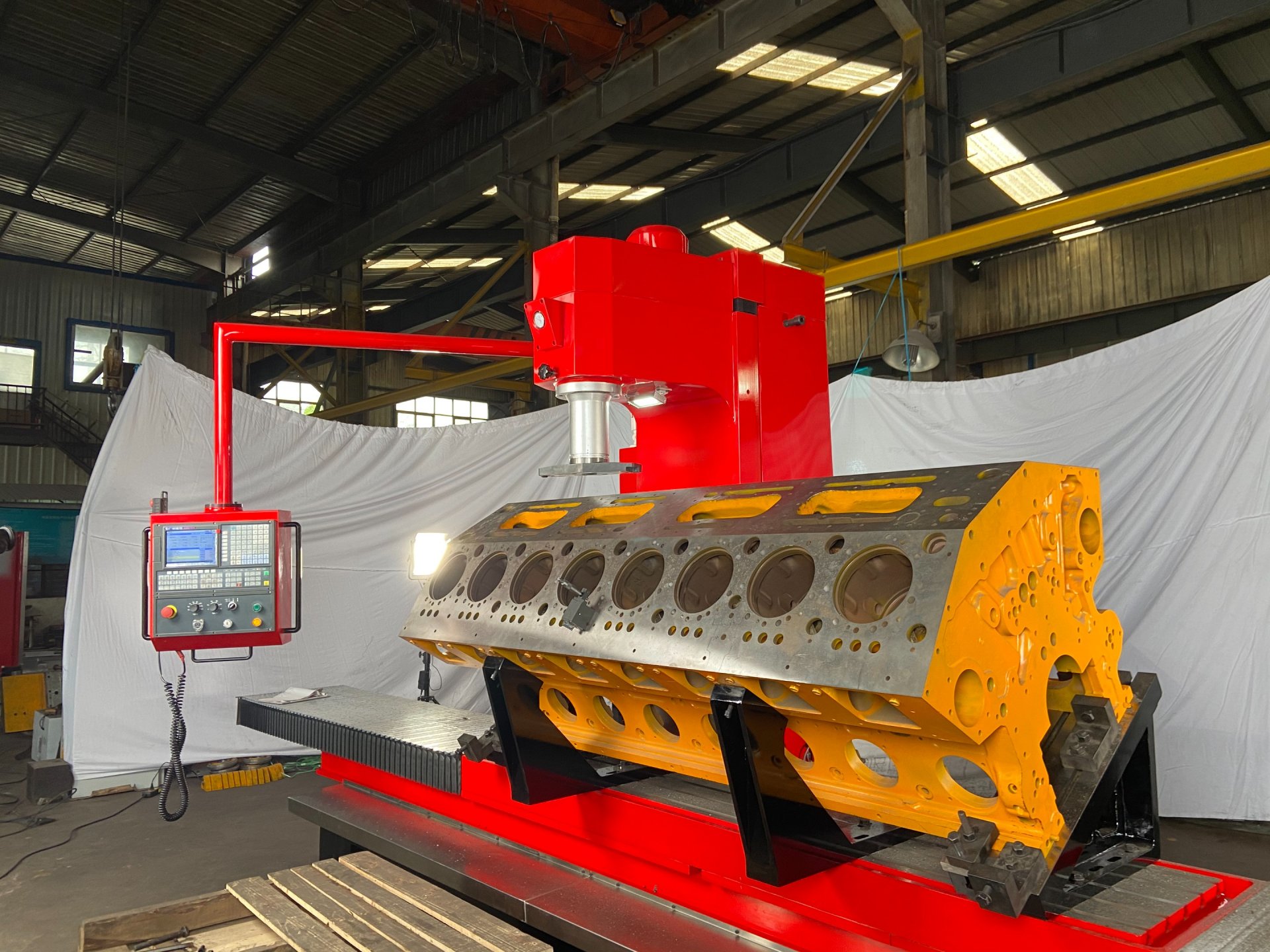

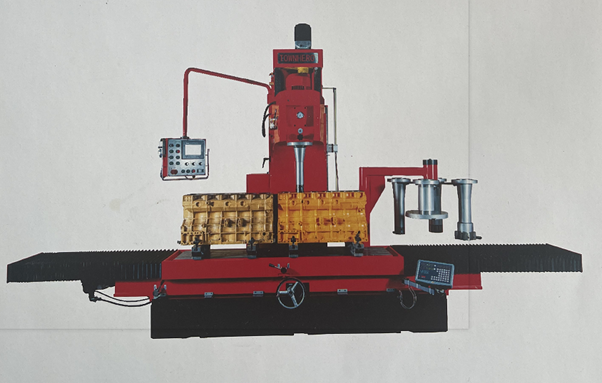

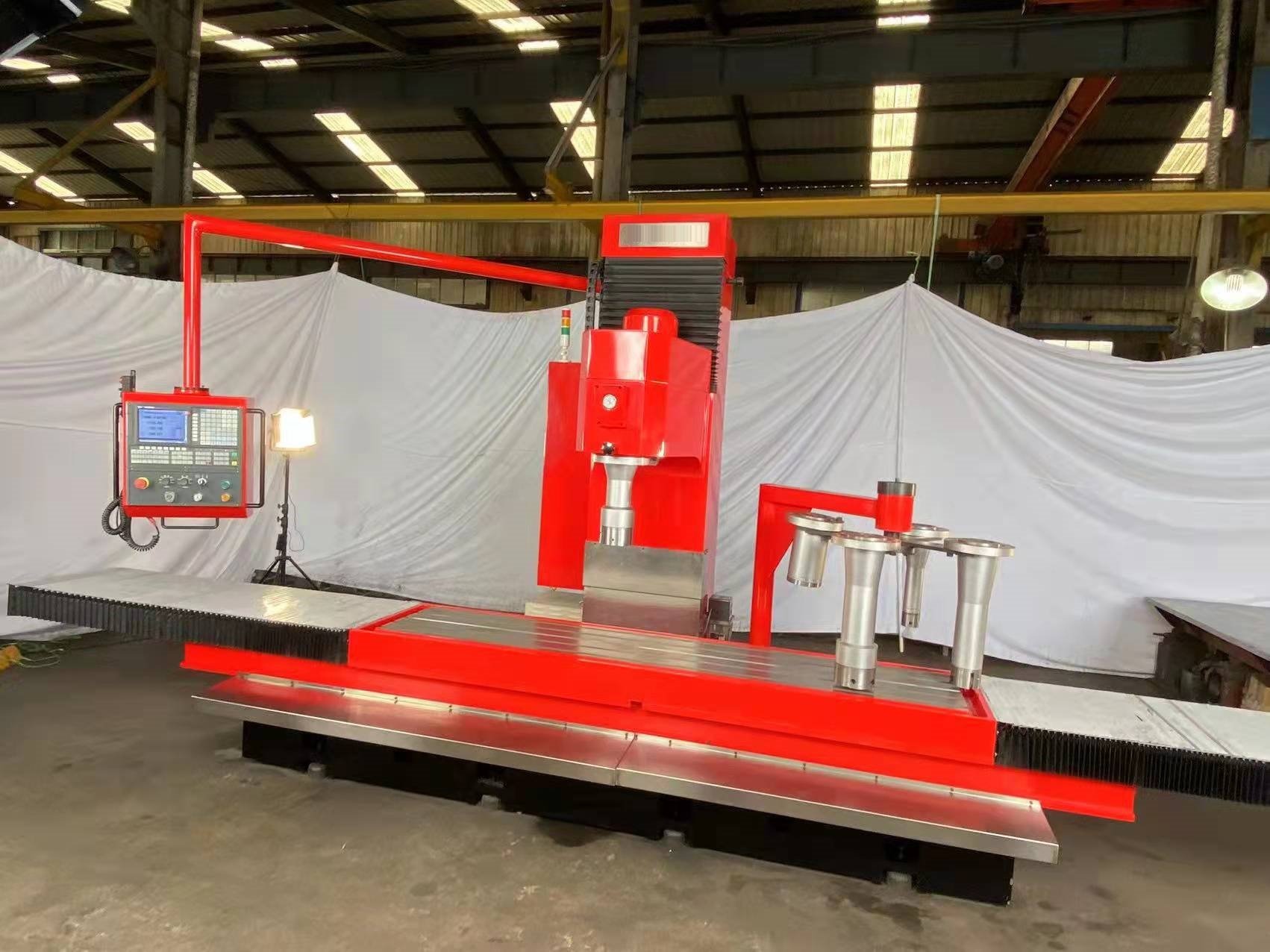

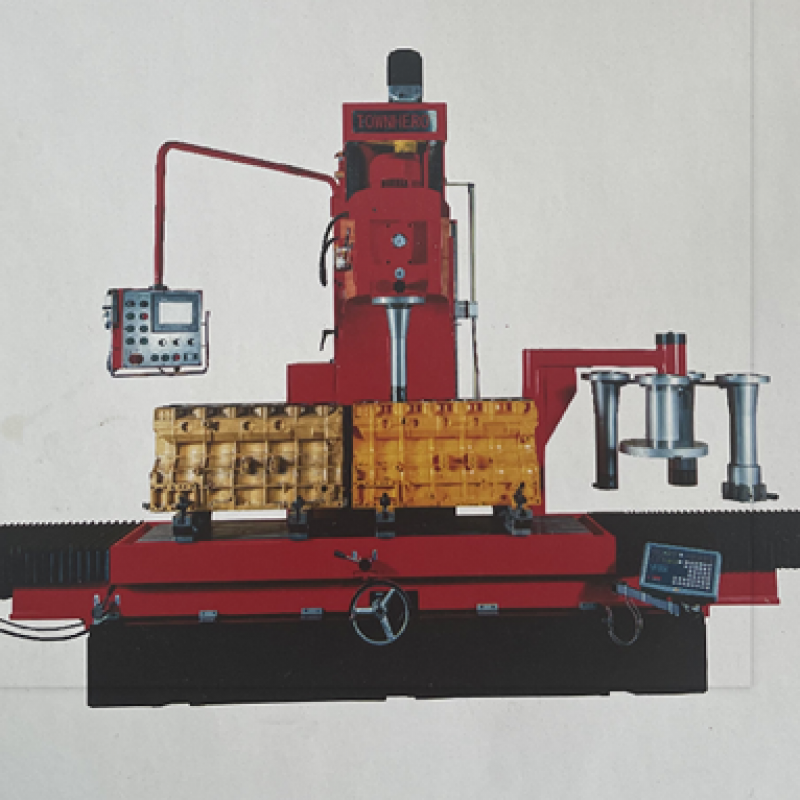

TX2150 2500 Vertical Fine Boring&Milling Machine
Category: DRO Boring machine
