- FEATURE:

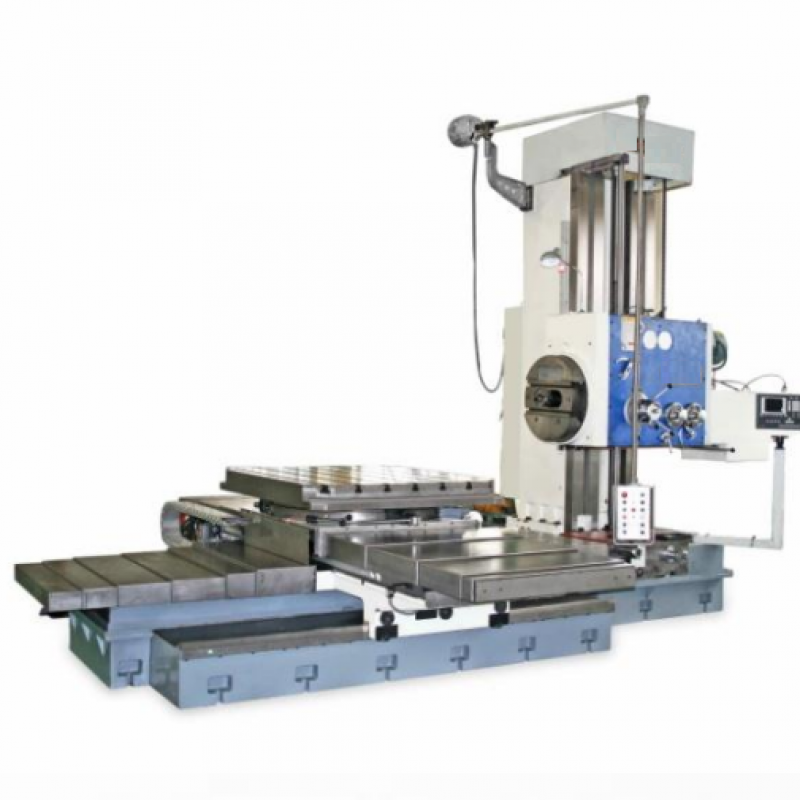

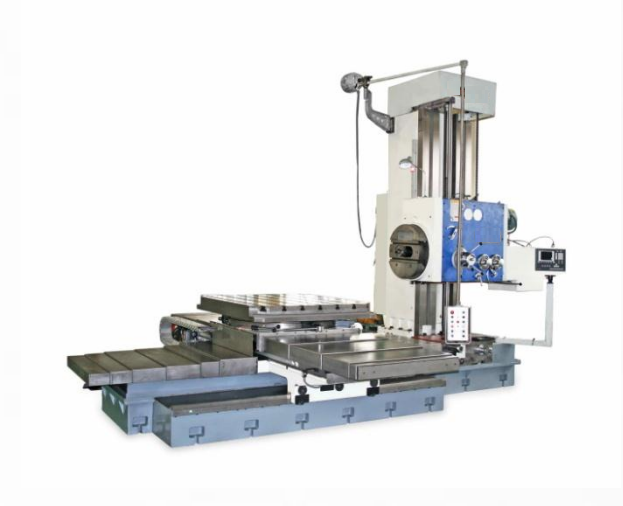

- Main characteristics of JX6111D , JX6111C/3
- 1. Disc spring for auto clamping, hydraulic clamping, tool handling fast and convenient.
- 2. 12 steps speed change, suitable for boring, drilling, reaming, milling and other machinings. facing head can be used for milling and turning of inner and outer cycle.
- 3. Rotary table supported by steel ball rolling guideway, table positioned at every 90° by a manual device.
- 4. Two axis DRO, Mitsubishi PLC control. Z axis DRO as option.
- 5. Spindle consists of facing head spindle, milling spindle and boring spindle which adopting high rigidity and accuracy tapered roller bearing to increase the concentricity at max. 0.04mm.
|
Model No. |
JX6111D | JX6111C/2 | JX6111C/3 |
|
Item No. |
|||
|
Specifications |
|||
|
Boring spindle diameter |
110 | 110 | 110 |
|
Spindle taper |
ISO50(7:24) |
||
|
Spindle speed |
18 steps 9-1000 |
||
|
Main motor power |
7.5kw |
||
|
Max torque of spindle |
1000mm |
||
|
Max axial resistance of spindle |
15000mm |
||
|
Min distance of spindle center to table surface |
0 |
||
|
Spindle max drilling diameter |
65mm |
||
|
Spindle max boring diameter |
300mm |
||
|
Table cross travel(X) |
1000mm |
1300mm | 1600mm |
|
Vertical travel of spindle head(Y) |
900mm |
1100mm | 1400mm |
|
Table longitude travel(Z) |
1400mm |
||
|
Axial travel of spindle(W) |
600mm |
||
|
Facing head slide travel(U） |
170mm |
||
|
Table size |
1000*1100mm | 1100*1200mm | 1100*1200mm |
|
Max loading capacity |
2500mm |
4000mm | 4000mm |
|
Facing head diameter |
540mm |
||
|
Facing head speed |
14 steps 6-221 |
||
|
Max torque of facing head |
1500mm |
||
|
Max boring diameter of facing head |
600mm |
||
|
Spindle/table longitude and cross/spindle head feed capacity(calculated as per spindle rev) |
12 steps 0.04-6 |
||
|
Spindle/table longitude and cross/spindle head feed capacity(calculated as per facing head rev) |
12 steps 0.06-9 |
||
|
Facing head slide feed capacity(calculate as per facing head rev) |
12 steps 0.04-6 |
||
|
Positioning accuracy(X / Y) |
0.025/300, 0.06/full travel | ||
| Machine read out capacity (X / Y) | 0.005 | ||
| Overall capacity | About 15 | ||
| Machine dimension(L*W*H) | About 5215*2140*3040mm | About 5215*3200*3000mm | About 5215*3500*3300mm |
| Machine weight(G.T) | About 12000kg | About 16200kg | About 18300kg |
