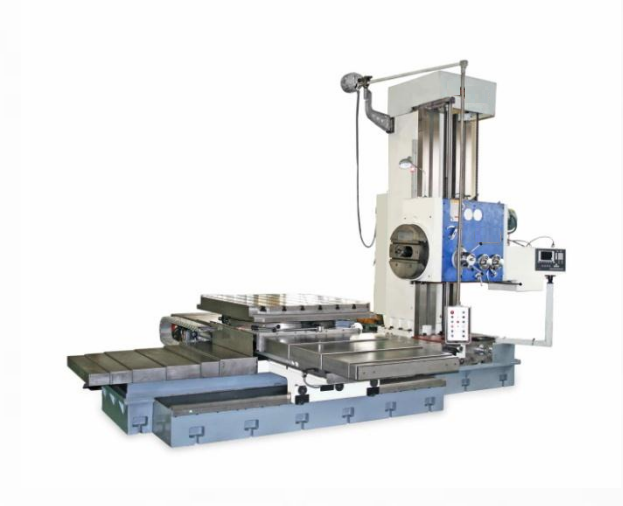

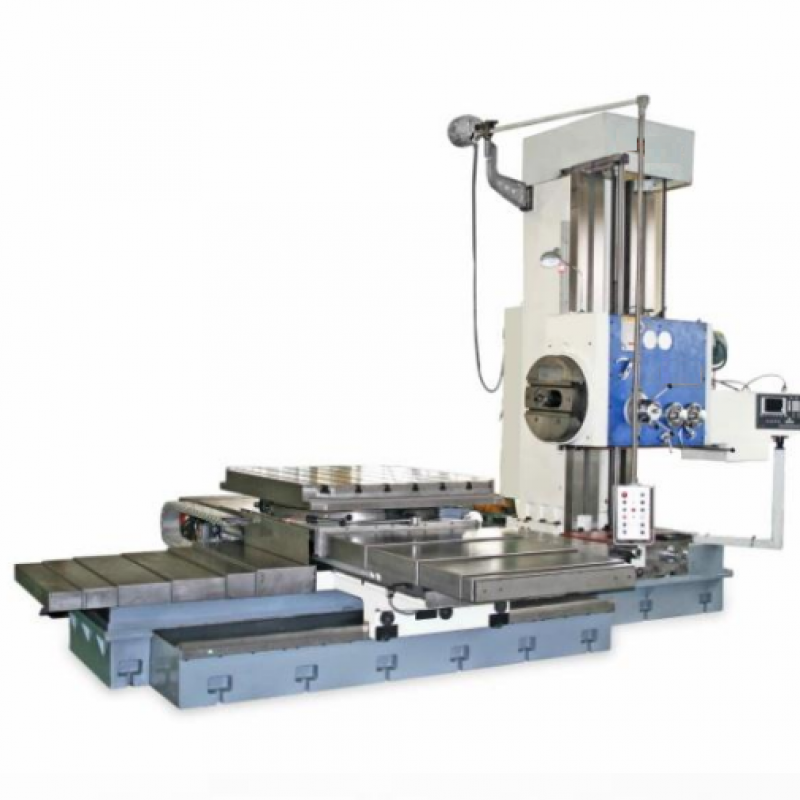

- FEATURE:
- 1. Table of TX6113C/2 adopts circular grating with continuous indexing for 360°, hydraulic clamping.
- 2. TX6113D adopts optical device for positioning at every 4X90°, manual clamping.
- 3.Table of TX6113C/2 adopts circular grating with continuous indexing for 360°, hydraulic clamping. 2. TX6113D adopts optical device for positioning at every 4X90°, manual clamping.
- 4. Adopts double balance weight with guide device to ensure the stability when moves up and down.
- 5. Mitsubishi PLC control. X, Y axes DRO provided for TX6113D X,Y,Z and B axes DRO provided for TX6113C/2.
|
Model No. |
JX6113D |
JX6113C/2 |
|
Item No. |
|
|
|
Specifications |
||
|
Boring spindle |
130mm |
130mm |
|
Spindle taper |
ISO50(7:24) |
|
|
Spindle speed |
18 steps 6.6-755 |
|
|
Main motor power |
15kw |
|
|
Spindle max torque |
2000mm |
|
|
Spindle axial max resistance |
25000mm |
|
|
Min distance from spindle center to table surface |
0 |
|
|
Spindle max drilling diameter |
80mm |
|
|
Spindle max boring diameter |
350mm |
|
|
Table cross travel(X) |
2000mm |
|
|
Vertical travel of spindle head(Y) |
1600(2000)mm |
|
|
Table longitude travel(Z) |
2000mm |
|
|
Axial travel of spindle(W) |
900mm |
|
|
Slide travel of facing head(U） |
200mm |
|
|
Table rotation(B) |
4*90° |
360（random) |
|
Table size |
1400*1600mm |
|
|
Max loading capacity |
10000mm |
|
|
Facing head speed |
14 steps 4.4-165 |
|
|
Max torque of facing head |
3000mm |
|
|
Max machining diameter of facing ehad |
700mm |
|
|
Feed capacity of spindle head, table longitude and cross travel (calculated as per spindle rev) |
12 steps 0.04-6 |
|
|
Feed capacity of spindle head, table longitude and cross travel (calculated as per facing head rev) |
12 steps 0.04-6 |
|
|
Machine positioning(X / Y axis) |
0.02/300,0.045/full travel |
|
|
Machine positioning(B axis) |
0 |
±10 |
| Machine read out accuracy (X / Y) | 0.005 | |
| Overall capacity | About 50 | About 35 |
| Machine dimension(L*W*H) | About 6400*4500*4300mm | About 7520*4560*4085mm |
| Machine weight | About 31500kg | About 36500kg |
