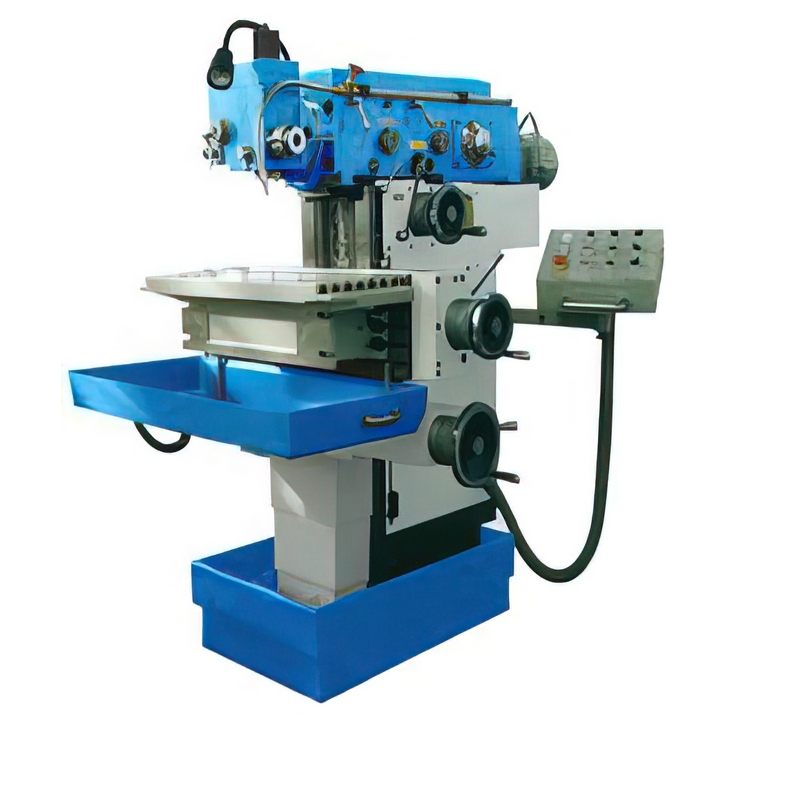

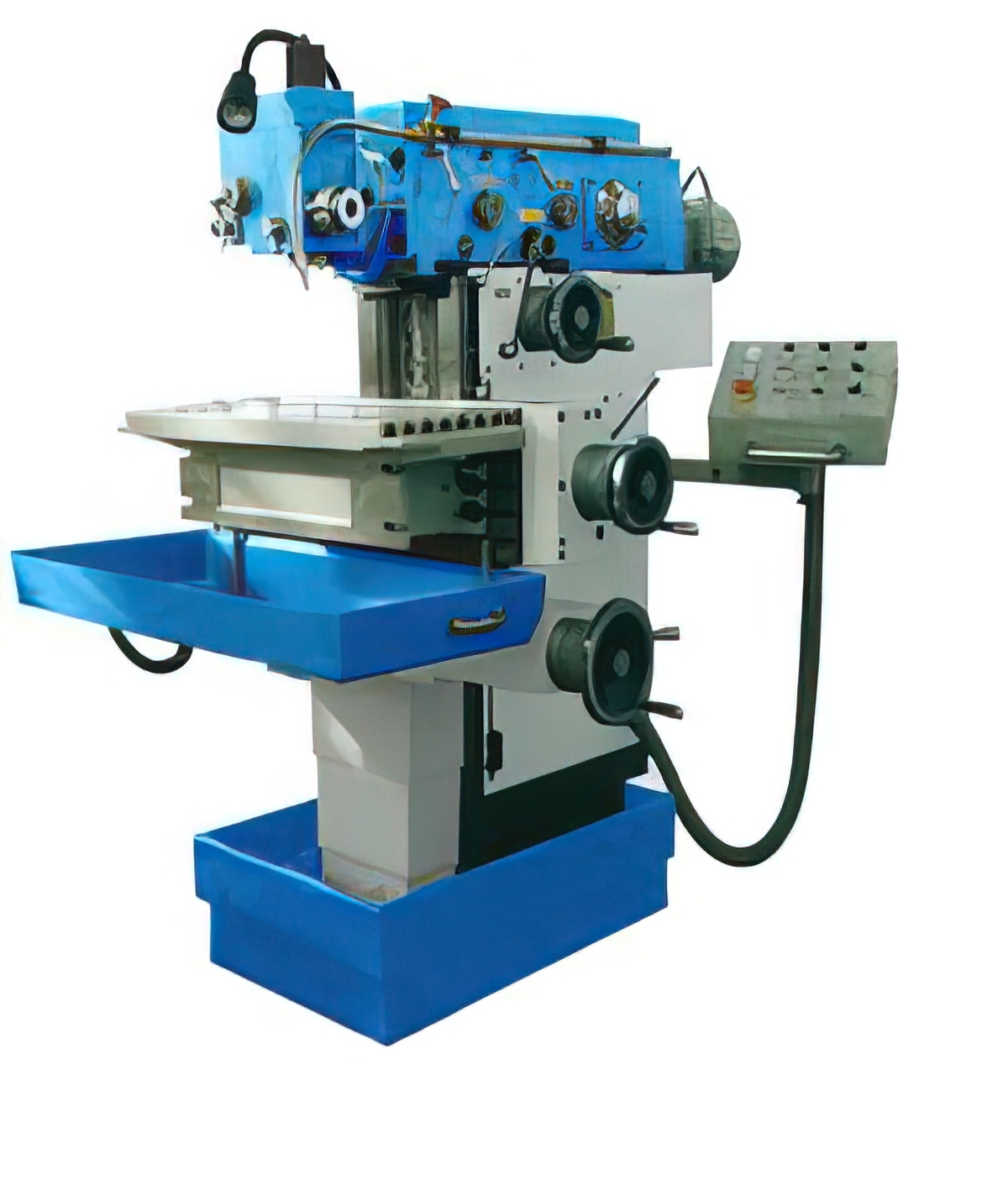

M8140 Universal Tool Milling Machine

Category: Universal Tool Milling Machine



 Model No.

M8140

    Item No.



 Specifications

 Table size

 Horizontal working table

800 x 400 mm

 Vertical working table

950 x 250 mm

 Longitudinal / Transverse / Vertical travel

500/350/400 mm

 Universal table

 Horizontal swivel

±360°

 Inclination to front and rear

±30°

 Inclination on left and right

±30°

 Vertical milling head

 Vertical travel of quill

60 mm

 Axis inclination on left and right

±90°

 Horizontal spindle

 Spindle taper

ISO40

 The height from axis to ground

1330 mm

 Min. distance between axis and surface of

 horizontal table

35 mm

 Vertical spindle

 Spindle taper

ISO40

 Min. distance between nose and surface of

 horizontal table

5 mm

 Horizontal and vertical spindle speed: steps / range ( rmp)

18 steps / 40~2000

 Longitudinal, transverse and vertical feeds: steps / range (mm/min.)

18 seps / 10~500

 Vertical milling spindle feed (mm/rev.)

3 steps / 0.03~0.12

 Power of main motor / Feed motor

3 kW / 1.5 kW

 Max. table load

300 kg

 Overall dimensions

1820x1640x1710 mm

 Net weight

2300 kg





 Optional Accessories

 Universal table

 Parallel vice

 Slotting head

 Rotary table

 Dividing head
