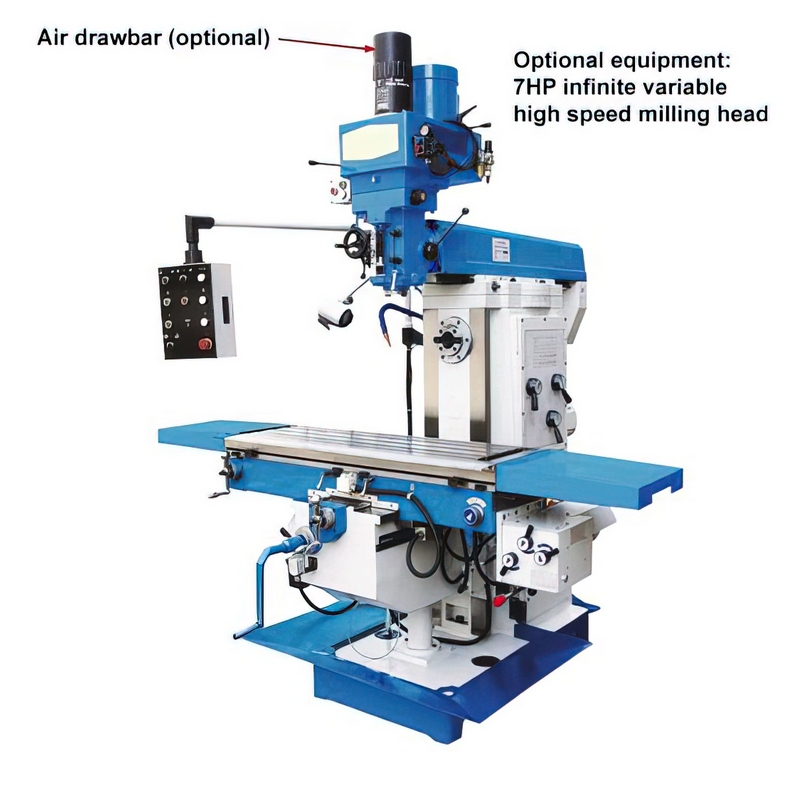

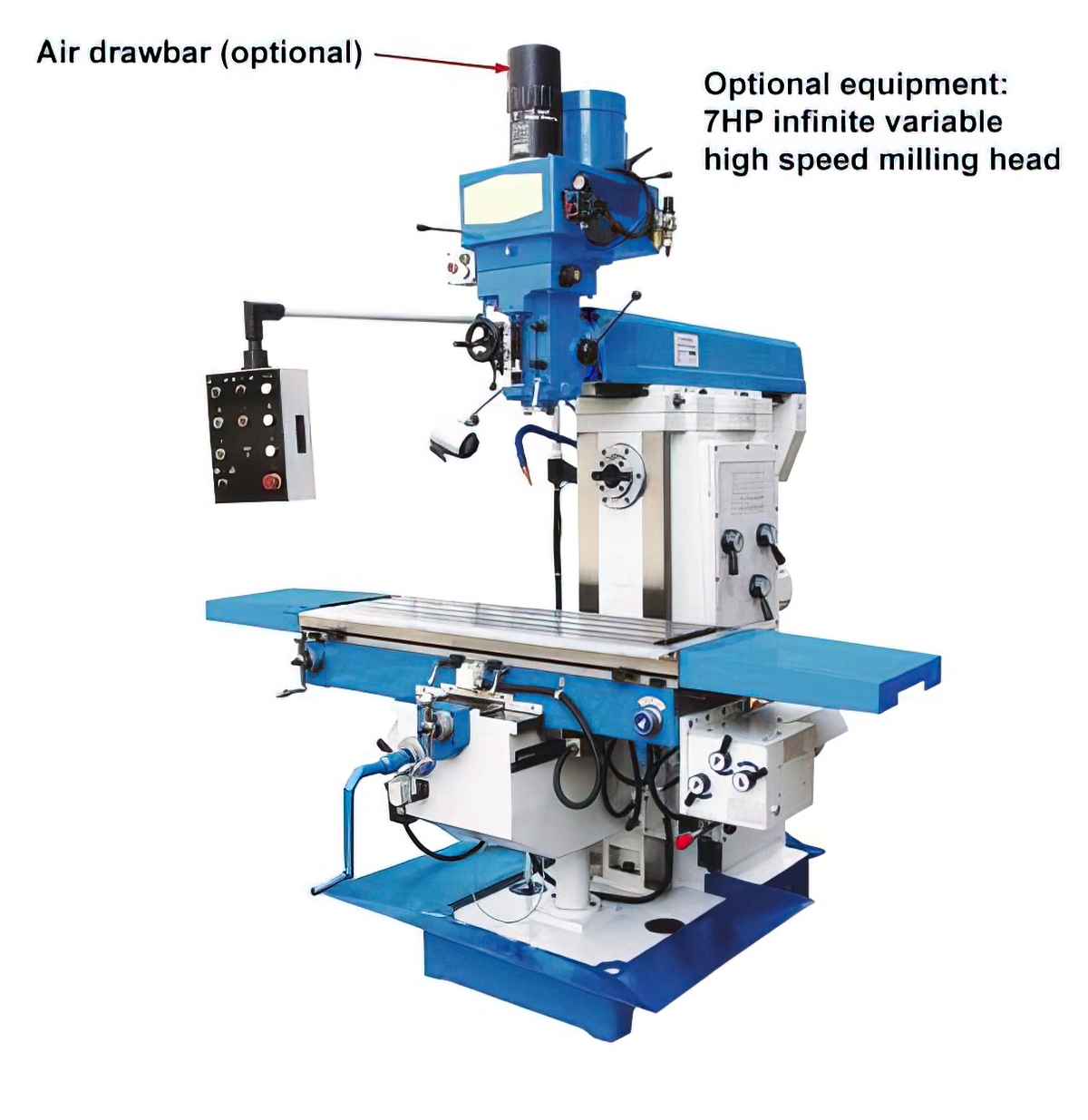

Model No. |
M6336 |
|
Item No. |
|
|
Specifications |
|
|
Table size |
1320 x 360 mm |
|
Table travel (X,Y) |
980 x 320 mm |
|
Knee travel |
450 mm |
|
Table power feed speed range (X) |
15 ~ 370 mm/min. |
|
Table power feed speed range (Y) |
15 ~ 370 mm/min. |
|
Knee rapid speed |
575 mm/min. |
|
T-slot |
3x18-80 |
|
Ram travel |
600 mm |
|
Vertical Spindle: |
|
|
Distance spindle nose to table |
200 ~ 650 mm |
|
Distance spindle axis to column |
120 ~ 720 mm |
|
Spindle taper |
ISO40 |
|
Spindle stroke |
138 mm |
|
Step of spindle speeds |
10 |
|
Range of spindle speeds |
70 ~ 3620 rpm |
|
Automatic spindle feed |
0.045 0.086 0.142 mm/rev. |
|
Spindle motor |
3.75 kw |
|
Head swivel (L&R) |
±45° |
|
Horizontal Spindle: |
|
|
Spindle taper |
ISO50 |
|
Step of spindle speeds |
12 |
|
Range of spindle speeds |
58 ~ 1800 rpm |
|
Spindle motor |
3.75 kw |
|
Distance spindle center to table |
0 ~ 450 mm |
|
Distance Spindle cneter to ram |
220 mm |
|
Overall Dimension |
2070 x 2020 x 2330 mm |
|
Net weight |
2200 kg |
