Model No. |
M26 |
||
|

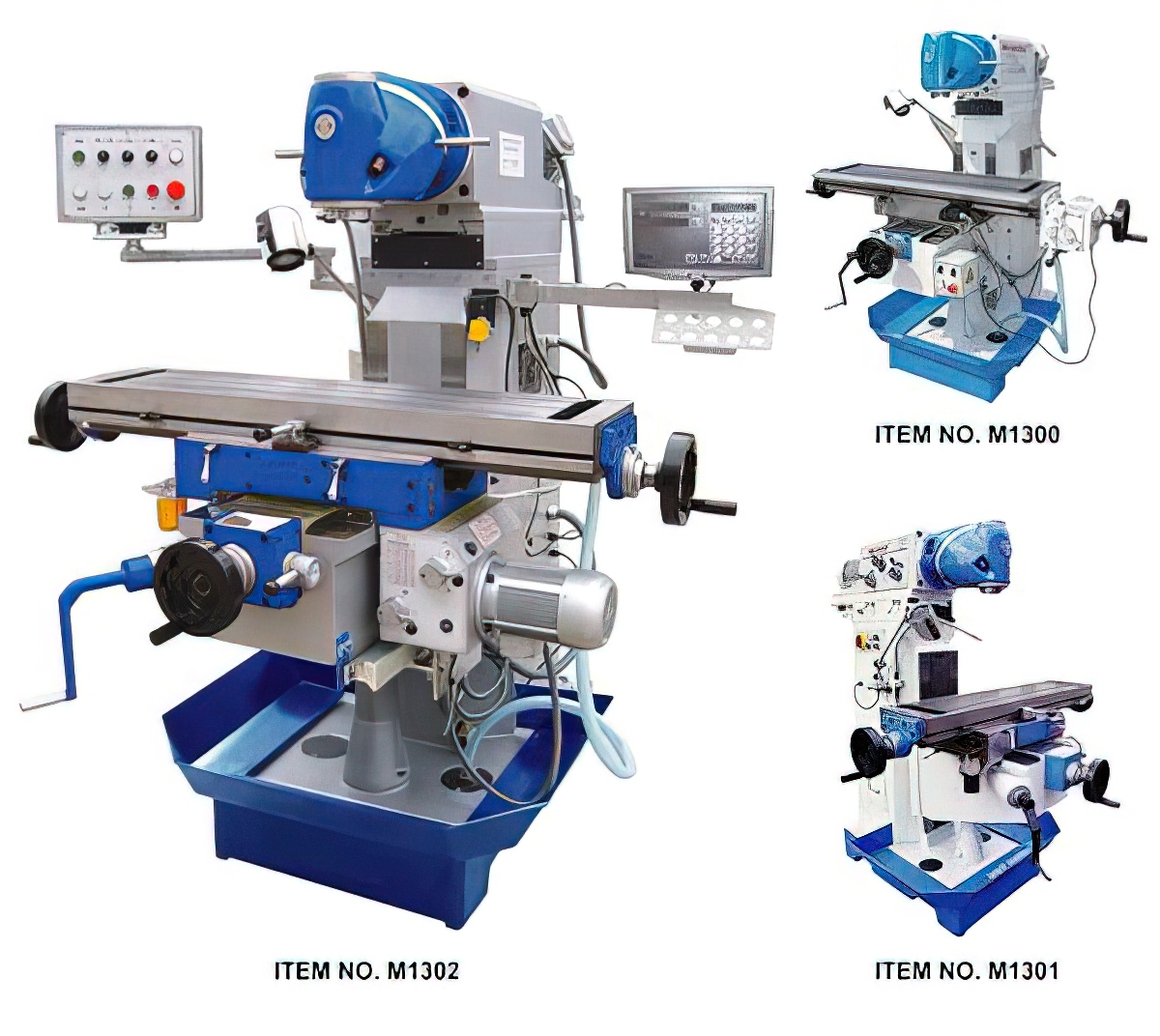

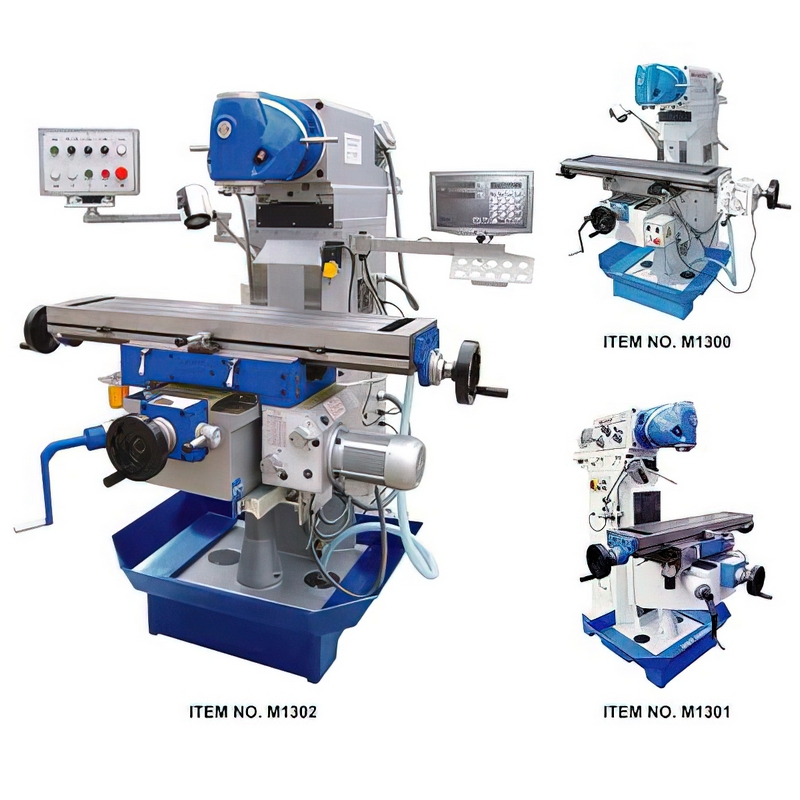

Item No. |
M1300 |
M1301 |
M1302 |
|
Specifications |
|||
|
Table size |
1120 x 260 mm |
||
|
Table travel (X,Y) |
600 x 320 mm |
600 x 260 mm |
600 x 260 mm |
|
Knee travel |
380 mm |
380 mm |
400 mm |
|
Table power feed speed range (X) |
－ |
24 ~ 402 mm/min |
24 ~ 402 mm/min |
|
Table power feed speed range (Y) |
－ |
24 ~ 402 mm/min |
24 ~ 402 mm/min |
|
Knee rapid speed |
－ |
－ |
400 mm/min |
|
T-slot |
3 x 14 - 63 mm |
||
|
Distance spindle nose to table |
100 ~ 480 mm |
100 ~ 480 mm |
80 ~ 480 mm |
|
Distance spindle axis to column |
0 ~ 600 mm |
||
|
Max. end milling width |
125 mm |
||
|
Max. vertical milling diameter |
25 mm |
||
|
Spindle taper |
ISO40 |
||
|
Steps of spindle speeds |
11 |
||
|
Range of spindle speeds |
40 ~ 1600 rpm |
||
|
Spindle motor |
2.2 kw |
||
|
Head swivel (L&R) |
360° |
||
|
Overall dimension (mm) |
1655x1325x1700 |
1655x1500x1730 |
1655x1500x1730 |
|
Net weight |
1300 kg |
1400 kg |
1480 kg |
