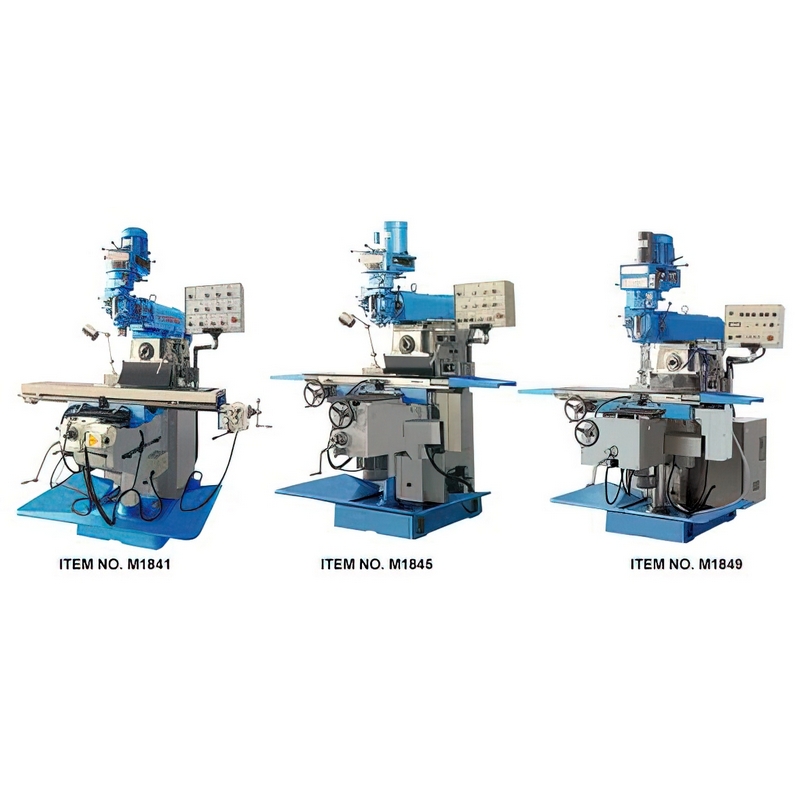

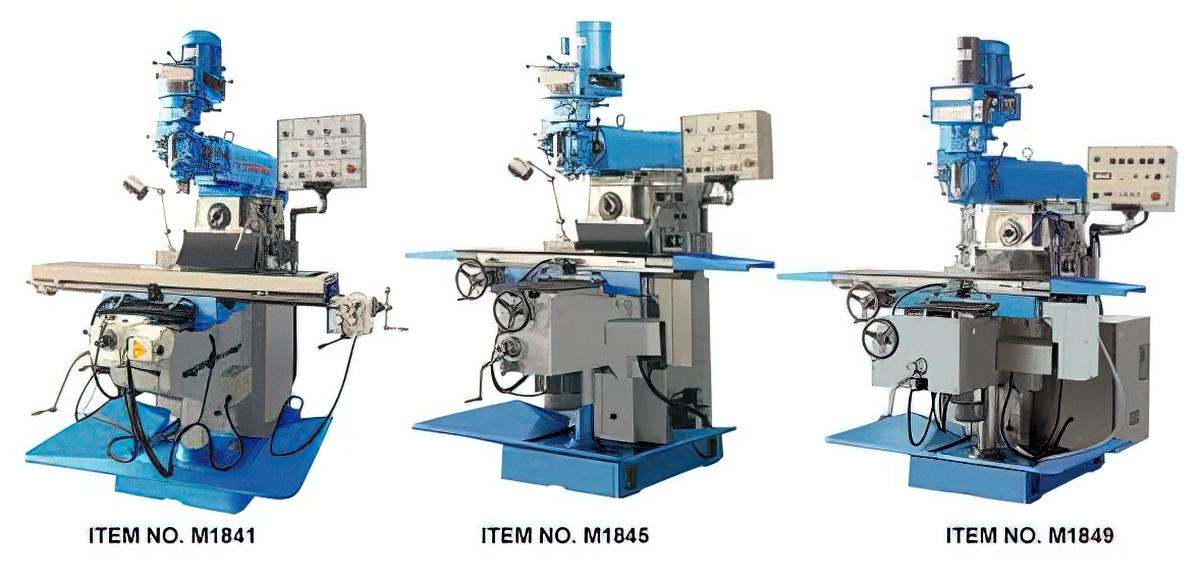

UM30 / 30V Universal Milling Machine

Category: Universal Milling Machine



 Model No.

UM30 / UM30V

    Item No.

M1841/42

M1843/44

M1845/46

M1847/48

M1849/50

 Spe30cifications

 Table size (mm)

1370x300

1500x300

1300x300

1500x300

1300x300

 Table travel (X,Y) (mm)

880x380

1000x380

845x385

1000x385

845x385

 Knee travel

435 mm

 Knee rapid speed

900 mm/min

 T-slot

3 x16 mm

 Ram travel

480 mm

  Ram rotating

360°

  Table longitudinal feed rate

-

-

-

-

0-3500 rpm

Servo motor

  Table cross feed rate

-

-

-

-

Vertical Spindle:

 Distance spindle nose to table

115 ~ 545 mm

 Spindle taper

R8 or ISO40

ISO40

 Spindle stroke

127 mm

 Step of spindle speeds

16 steps / Variable

 Range of spindle speeds

50Hz 65 ~ 4500 rpm, 60Hz  80-5440 rpm/

65 ~ 3750 rpm

 Automatic spindle feed

0.04 / 0.08 / 0.15 mm/rev

 Spindle motor

3HP

5HP

 Head swivel (L&R)

90°

 Head tilt (Back&Forward)

45°

FIX

Horizontal Spindle:

 Spindle taper

ISO40

 Speeds

50Hz 45/80/165/260/500/980 rpm;

60Hz 55/100/200/315/600/1180 rpm

 Spindle motor

5HP

 Distance spindle center to table

- 20 ~ 410 mm

 Distance Spindle cneter to ram

183 mm

 Packing size (cm)

180x160x220

180x180x220

180x150x220

180x180x220

180x150x220

 Net weight

1680 kg

1730 kg

1900 kg

1950 kg

1900 kg
