Milling Machine

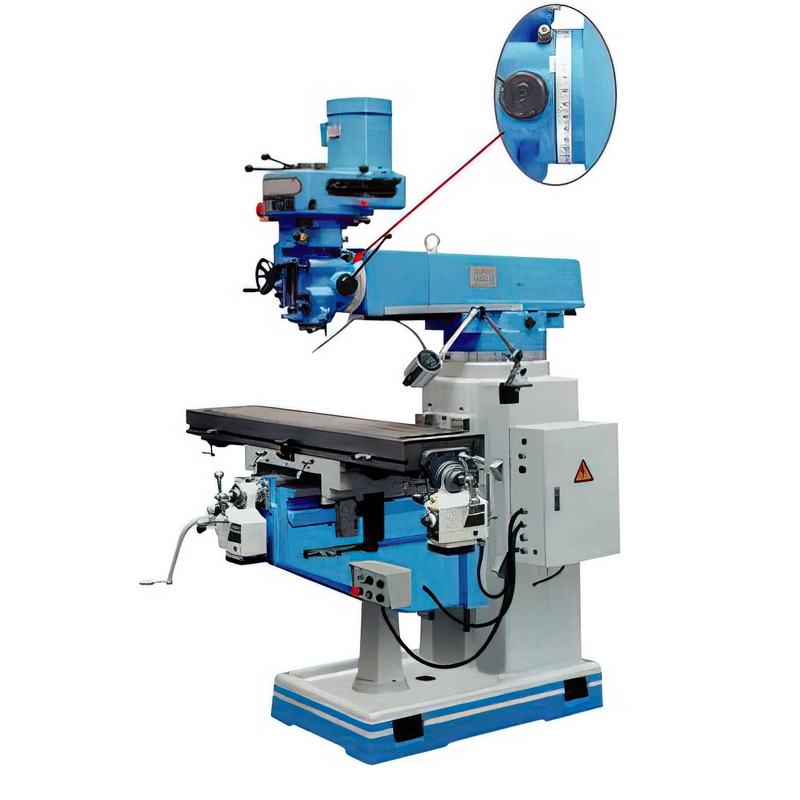

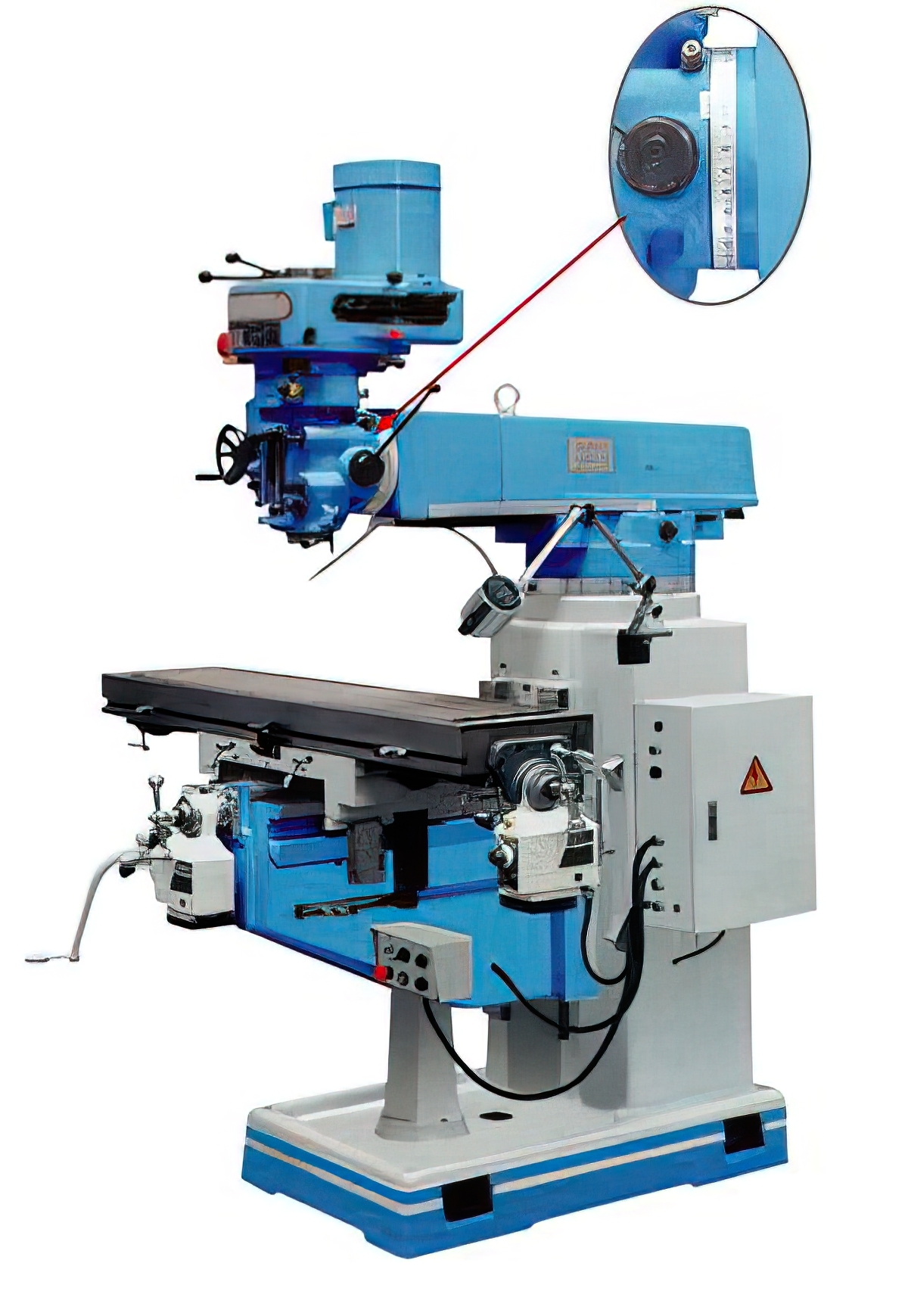

M30 / 30V Universal Milling Machine



  Model No.

M30 / M30V

    Item No.





 Specifications

 Table size

1370 x 305 mm

(optional 1500 x 305 mm)

 Table travel (X,Y)

870 x 380 mm

(1000 x 430 mm)

 Knee travel

430 mm

 T-slot

3 x 16 mm

 Ram travel

500 mm

 Distance spindle nose to table

0~350 mm

 Spindle taper

ISO40

 Spindle stroke

127 mm

 Step of spindle speeds

16Kinds / Variable

 Range of spindle speeds

50Hz 65-4500rpm;60Hz 80-5440rpm

/ 65~3750 rpm

 Automatic spindle feed

3 steps 0.04/0.08/0.15 mm/rev.

 Spindle motor

3.75 kw

 Head swivel (L&R)

90°

 Head tilt (Back&Forward)

45°

FIX

 Y-axis guideway

Rectangular

 Z-axis guideway

Rectangular

 Packing size

1566 x 1650 x 2080 mm

 Net weight

1700 kg

1750 kg
