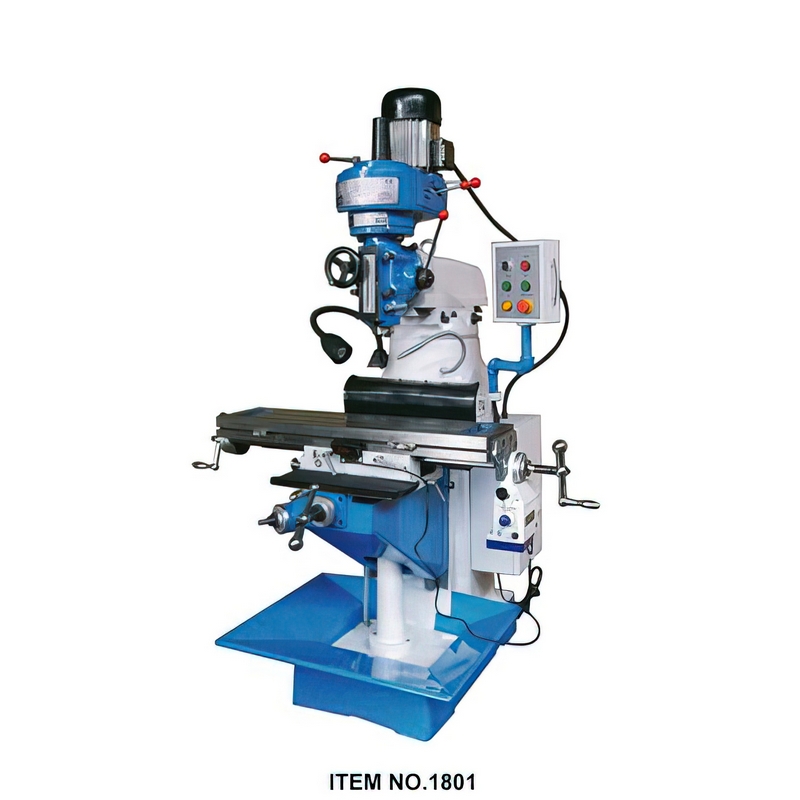

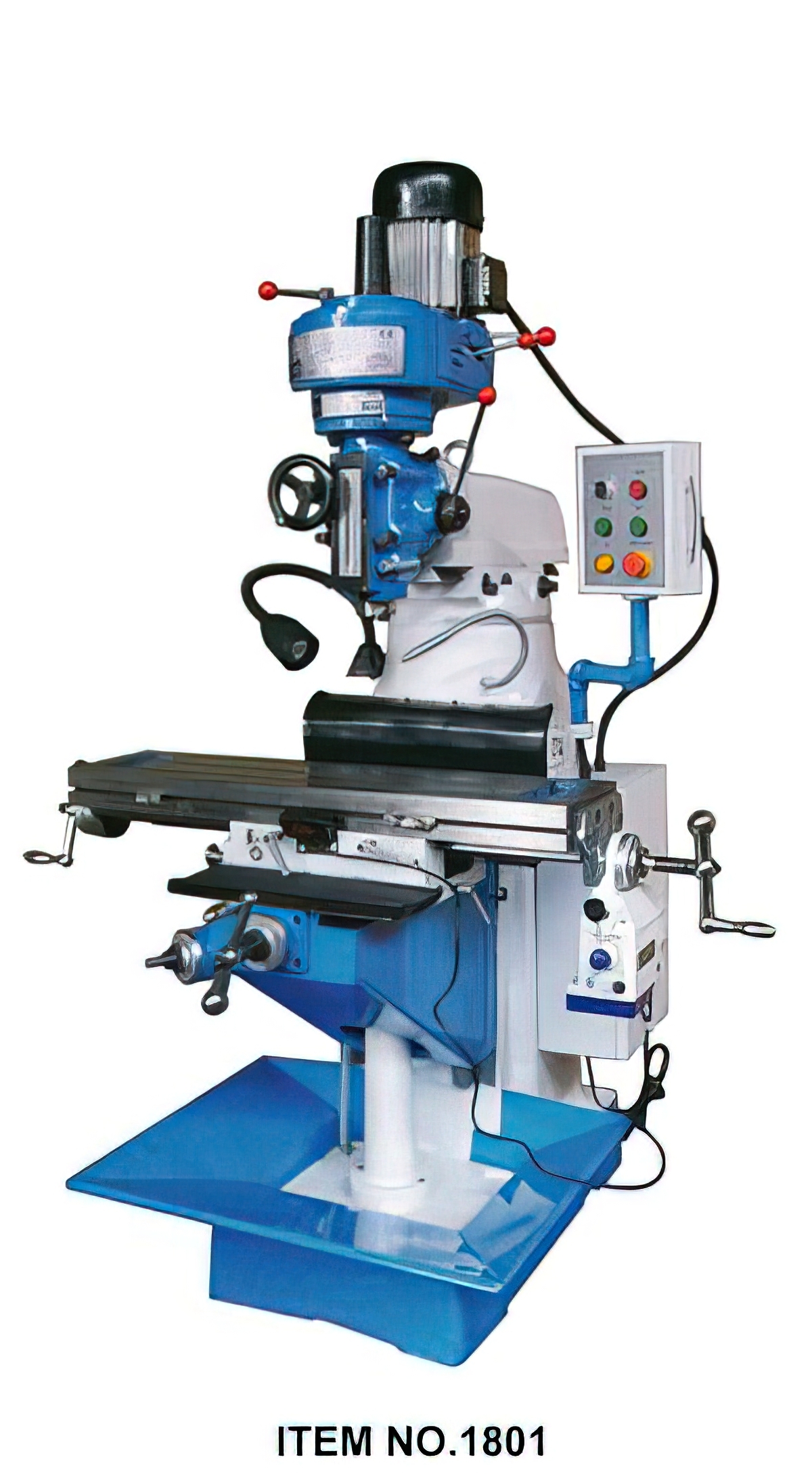

M20 / 20V Universal Milling Machine

Category: Universal Milling Machine



   Model No.

M20 / M20V

    Item No.



 Specifications

 Table size

910 x 200 mm

 Table travel (X,Y)

600 x 240 mm

 Knee travel

350 mm

 T-slot

3 x 16 mm

 Ram travel

300 mm

 Distance spindle nose to table

350 mm

 Spindle taper

R8/NT30

 Spindle stroke

120 mm

 Step of spindle speeds

12 Kinds / Variable

 Range of spindle speeds

150~2500 / 50~3500 rpm

 Automatic spindle feed (mm/rev)

0/3 steps 0.04/0.08/0.16 mm/rev

 Spindle motor

1.1 / 2.2 kw

 Head swivel (L&R)

90°

 Head tilt (Back&Forward)

0°/ 0°

 Y-axis guideway

Dovetail

 Z-axis guideway

Dovetail

 Packing size

1400 x 1300 x 1900 mm

 Net weight

800 kg
