Milling Machine

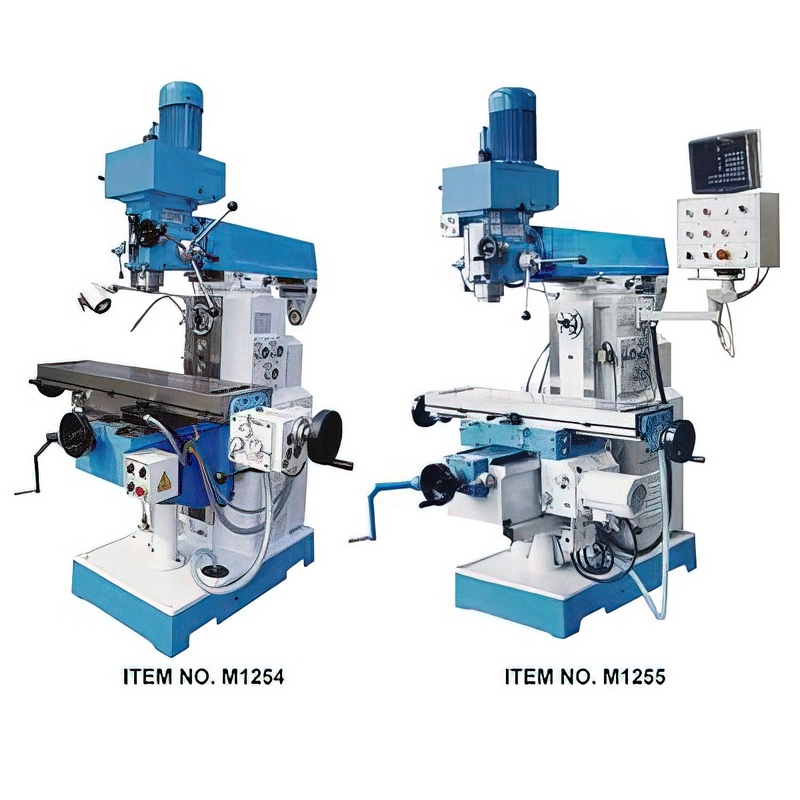

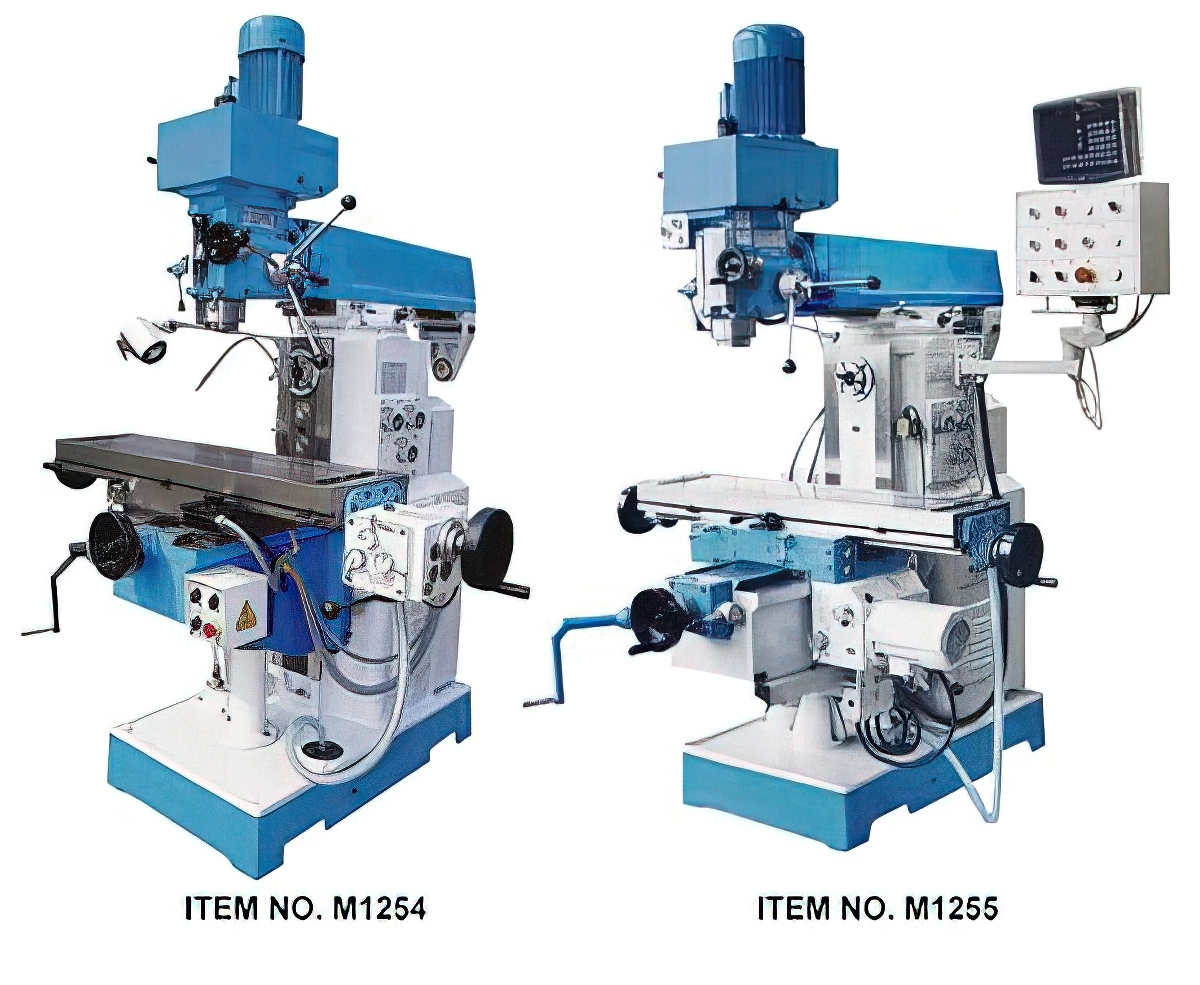

M6350F Milling Drilling Machine



 Model No.

M6350F

    Item No.

M1254

M1255

 Specifications

 Table size

1120x260 mm

1120x260 mm

 Table travel (X,Y)

600x320 mm

600x260 mm

 Knee travel

350 mm

330 mm

 Table power feed speed range (X)

24 ~ 402 mm/min

 Table power feed speed range (Y)

24 ~ 402 mm/min

 Knee rapid speed

 T-slot

3 x 14 - 63 mm

 Ram travel

650mm

650mm

 Vertical Spindle:

 Distance spindle nose to table

100-430 mm

 Spindle taper

ISO40

 Spindle stroke

120 mm

 Step of spindle speeds

8

 Range of spindle speeds

90~2000 rpm

 Automatic spindle feed

0.08 0.15 0.25 mm/rev.

 Spindle motor

2.2 kw

 Head swivel (L&R)

± 45°

 Horizontal Spindle:

 Spindle taper

ISO40

 Step of spindle speeds

12

 Range of spindle speeds

38~1310 rpm

 Spindle motor

2.2 kw

 Distance spindle center to table

0 ~ 350 mm

0 ~ 330 mm

 Distance Spindle cneter to ram

180 mm

180 mm

 Packing size

1520x1285x2150 mm

1520x1290x2150 mm

 Net weight

1350 kg

1400 kg
