Milling Machine

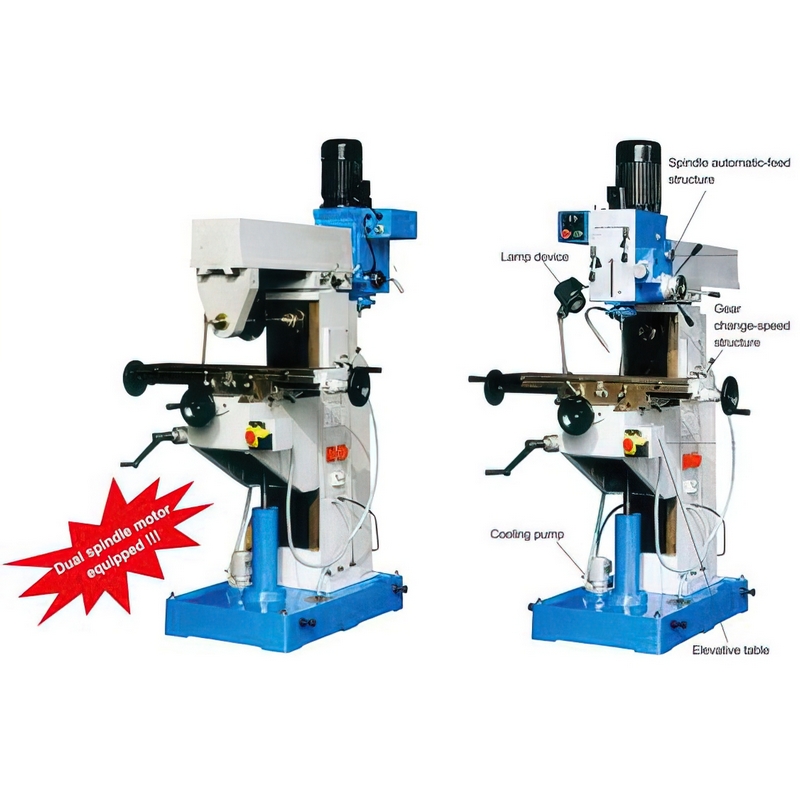

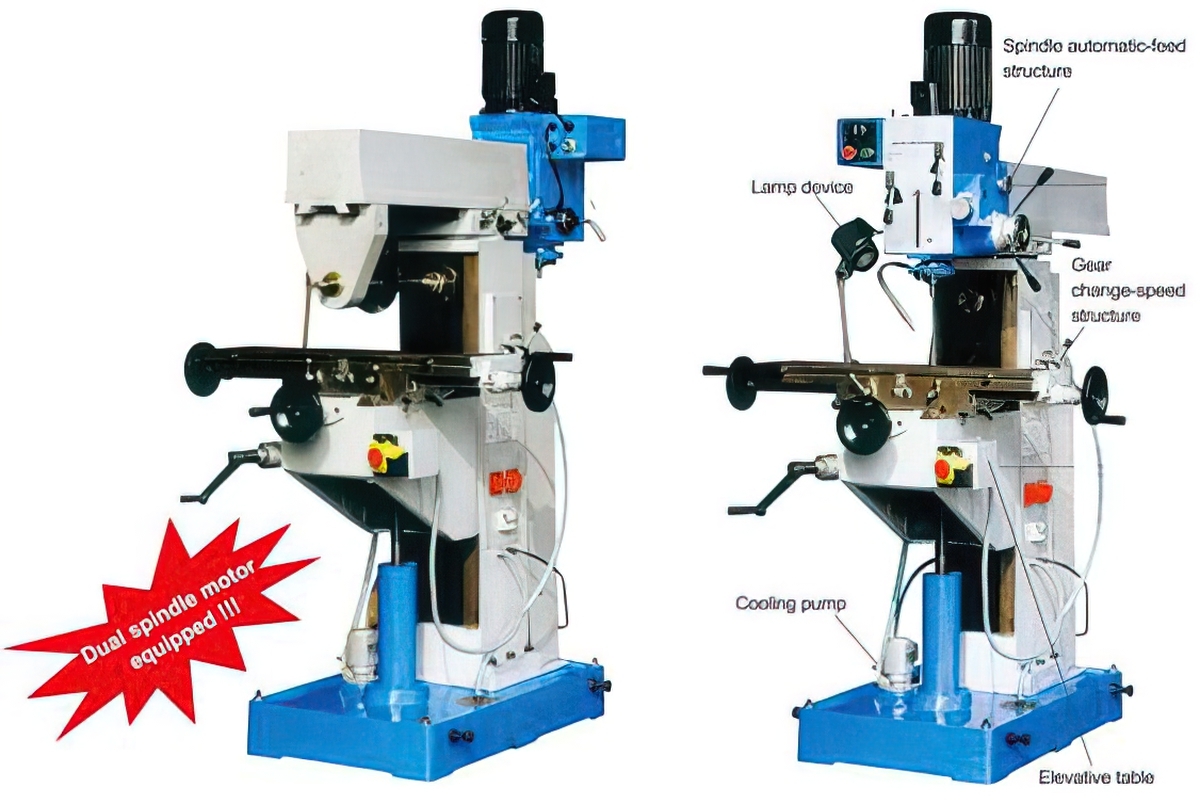

VHM7532(/1) / VHM7550(/1) Milling Drilling Machine

Vertical milling head can be moved forward or backward.

Vertical milling head can swivel ±90° vertically and ±360° horizontally.

    ◆Adjustable stops on table.

    ◆Double motor with powerful force.





 Model No.

VHM7532

VHM7550

VHM7532/1

VHM7550/1

    Item No.









 Specifications

 Max. drilling capacity

32 mm

50 mm

32 mm

50 mm

 Max. end milling capacity

25 mm

32 mm

25 mm

32 mm

 Max. face milling capacity

100 mm

100 mm

100 mm

100 mm

  Swivel angle of headstock (perpendicular)

±90°

±90°

±90°

±90°

 Spindle taper

MT3 MT4

MT4

MT3

MT4

  Distance from spindle nose to worktable surface

80-480 mm

  Spindle travel

130 mm

  Beam travel

500 mm

  Step of spindle speed(end/face)

6/12

  Range of spindle (end/face)

50Hz

60Hz



80-1250 / 38-1280 rpm;

95-1500 / 45-1540 rpm



90-1600 / 38-1280 rpm;

110-1920 / 45-1540 rpm

  Step of spindle auto-feeding (end/face)

\

\

3

3

  Range of spindle auto-feeding(end/face)

\

\

0.12 0.18 0.25

0.12 0.18 0.25

 Worktable size

800 x 240 mm

1000 x 240 mm

800 x 240 mm

1000 x 240 mm

  Forward and backward travel of worktable

300 mm

 Left and right travel of worktable

585 mm

785 mm

585 mm

785 mm

  Vertical travel of worktable

400 mm

  Min. distance from spindle axis to column

290 mm

  Power (end / face)

0.75kw / 1.5kw

1.5kw / 1.5kw

0.75kw / 1.5kw

1.5kw / 1.5kw

  Cooling pump power

0.04kw

  Net weight / Gross weight

910kg / 1010kg

930kg / 1030kg

930kg / 1030kg

950kg / 1050kg

 Packing size (L x W x H)

1020x1350x1850mm

1220x1350x1850mm

1020x1350x1850mm

1220x1350x1850mm
