Milling Machine

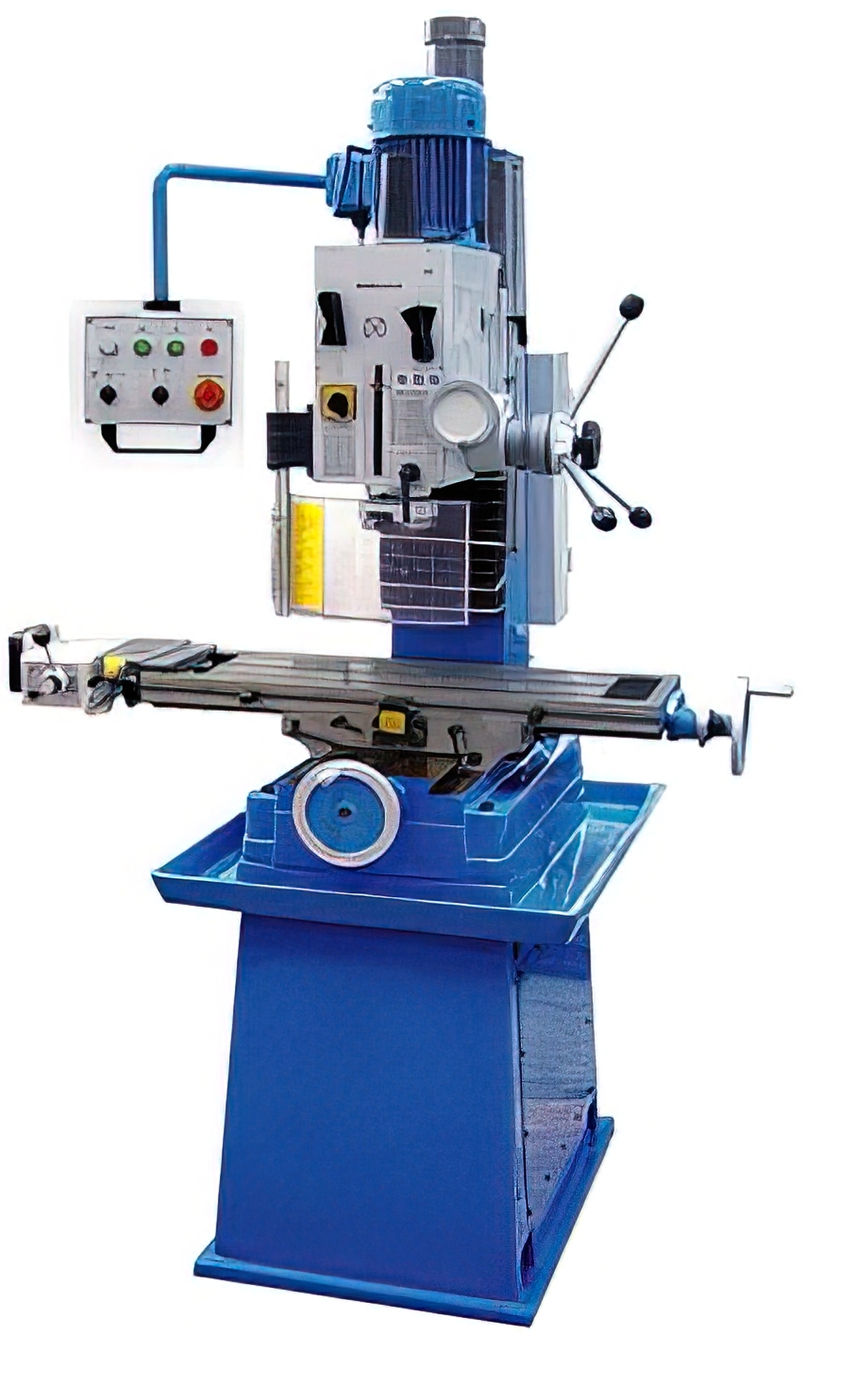

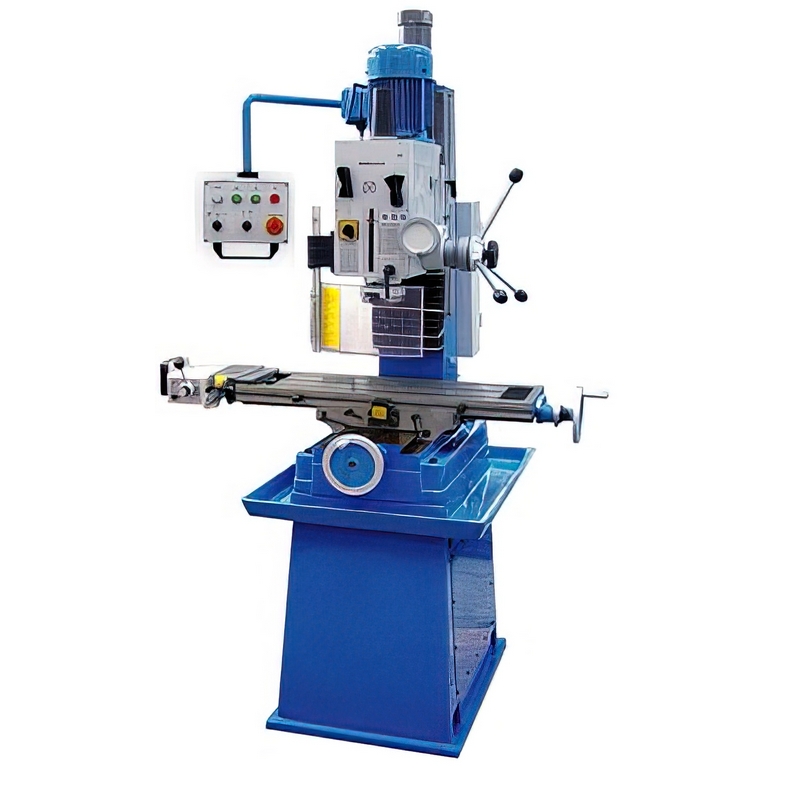

MD45A Milling Drilling Machine



 Model No.

MD45A

    Item No.



 Specifications

 Max. drilling capacity

40 mm

 Max. end milling capacity

32 mm

 Max. face milling capacity

80 mm

 Table size

800 x 240 mm

 Table travel (X,Y)

560 x 230 mm

 T-slot

3x14 mm

 Spindle taper

MT4 or R8 or ISO30

 Spindle stroke

120 mm

 Step of spindle speeds

12 Kinds

 Range of spindle speeds

75~3200 rpm

 Spindle incline angle

±90°

 Distance from spindle to column

260 mm

 Distance from spindle nose to table

470 mm

 Motor

0.85/1.1 kw

 Packing size

1180 x 960 x 1980 mm

 Net weight

580 kg





 Standard Accessories

 Optional Accessories

 Drill chuck

 Keyless drill chuck

 Drawbar

 Coolant system

 X- Power feed

 MVB100 milling vise

 Tapping assembly

 58pcs clamping kits

 Double speed motor

 Halogen work lamp

 Iron casting stand

 Digital readout system

 Toolbox & tools

 Collet chuck
