Milling Machine

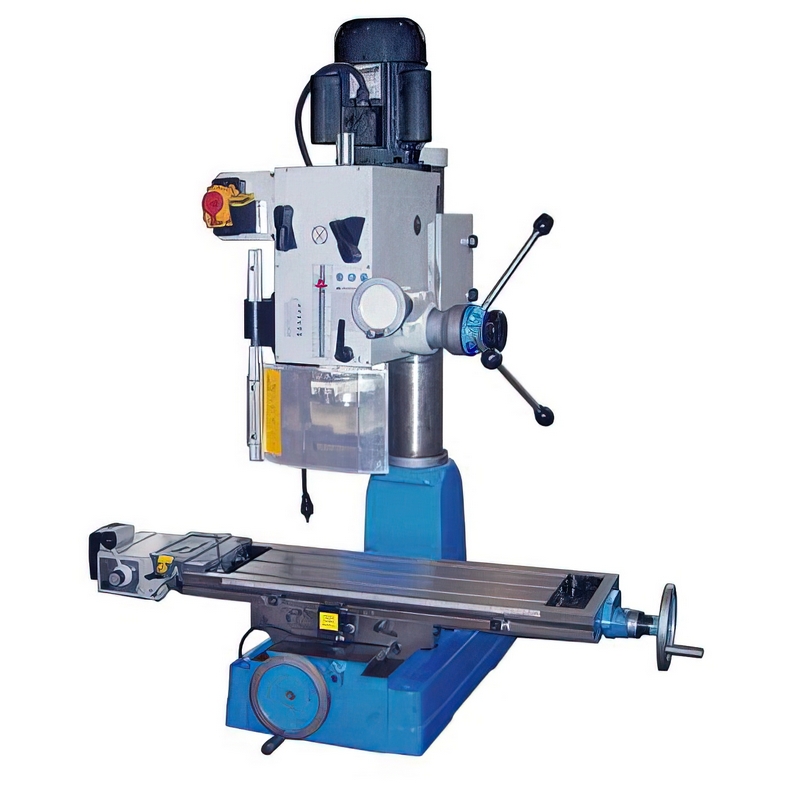

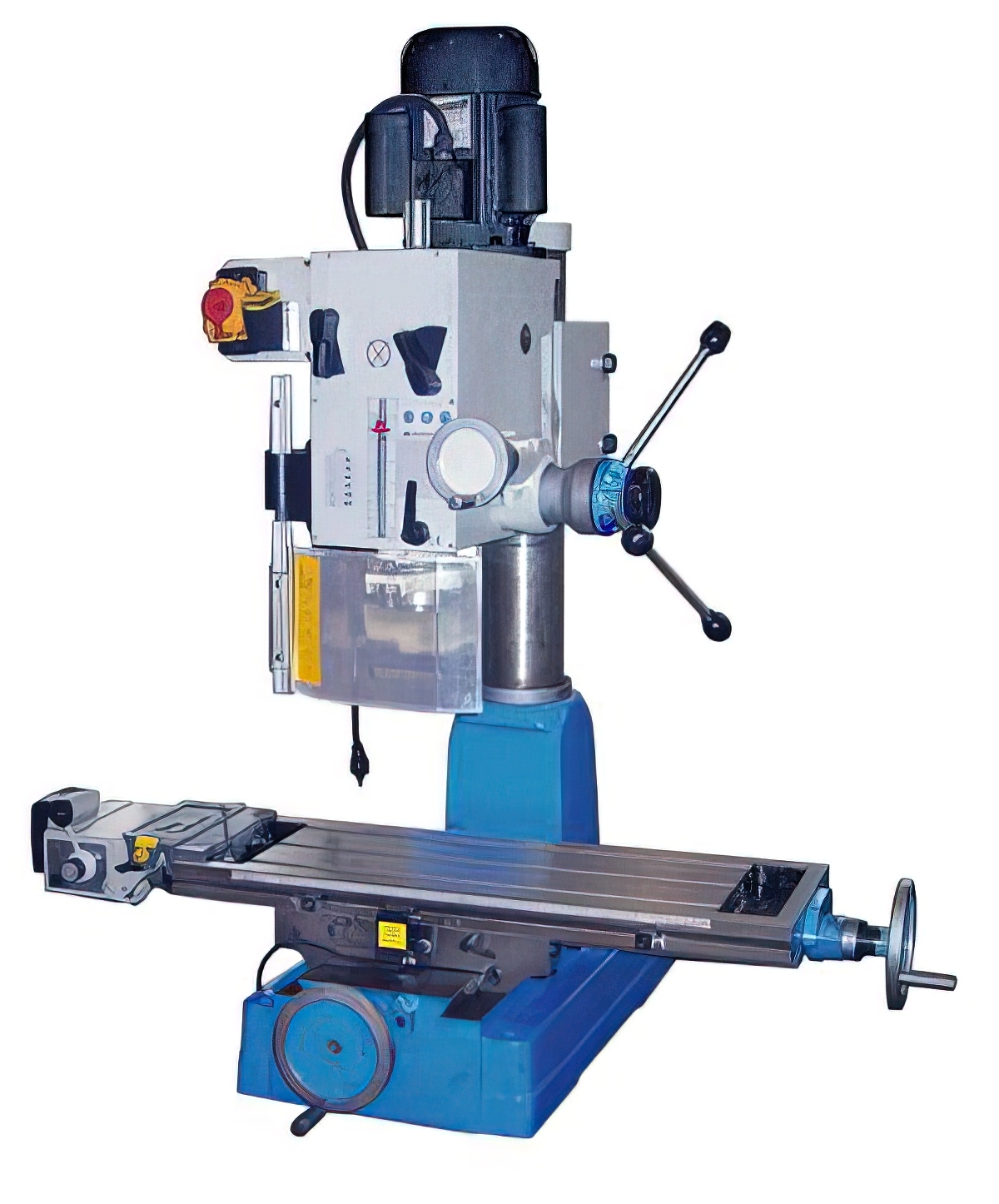

MD40 Milling Drilling Machine



 Model No.

MD40

    Item No.



 Specifications

 Max. drilling capacity

40 mm

 Max. end milling capacity

32 mm

 Max. face milling capacity

80 mm

 Table size

730 x 210 mm

 Table travel (X,Y)

500 x 175 mm

 T-slot

3 x 12 mm

 Spindle taper

MT4

 Spindle stroke

120 mm

 Step of spindle speeds

6 Kinds

 Range of spindle speeds

75~1600 rpm

 Spindle incline angle

±90°

 Distance from spindle to column

270 mm

 Distance from spindle nose to table

470 mm

 Motor

1.1 kw

 Packing size

820 x 770 x 1140 mm

 Net weight

310 kg
