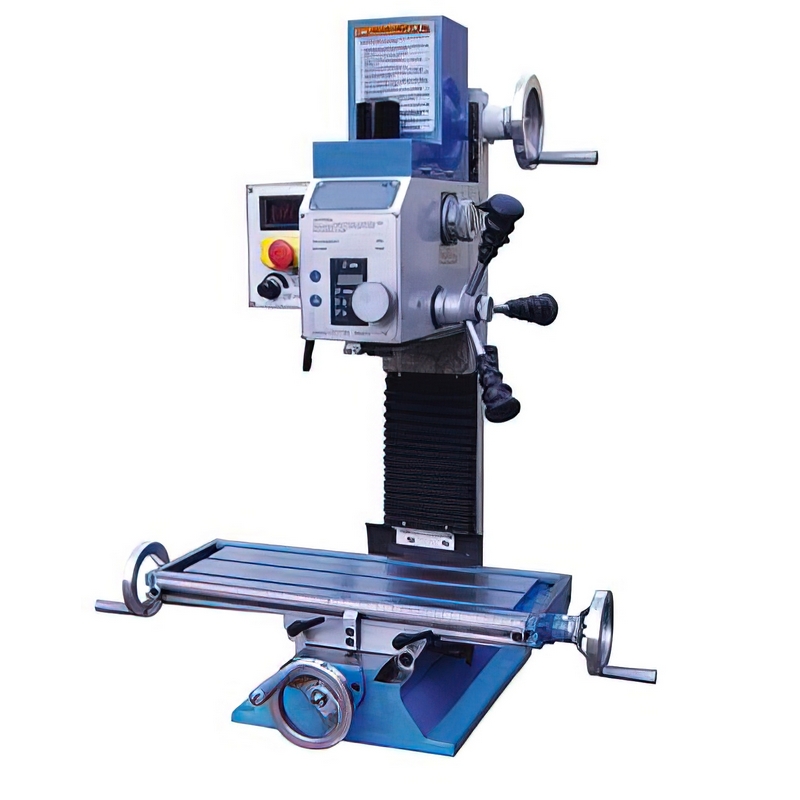

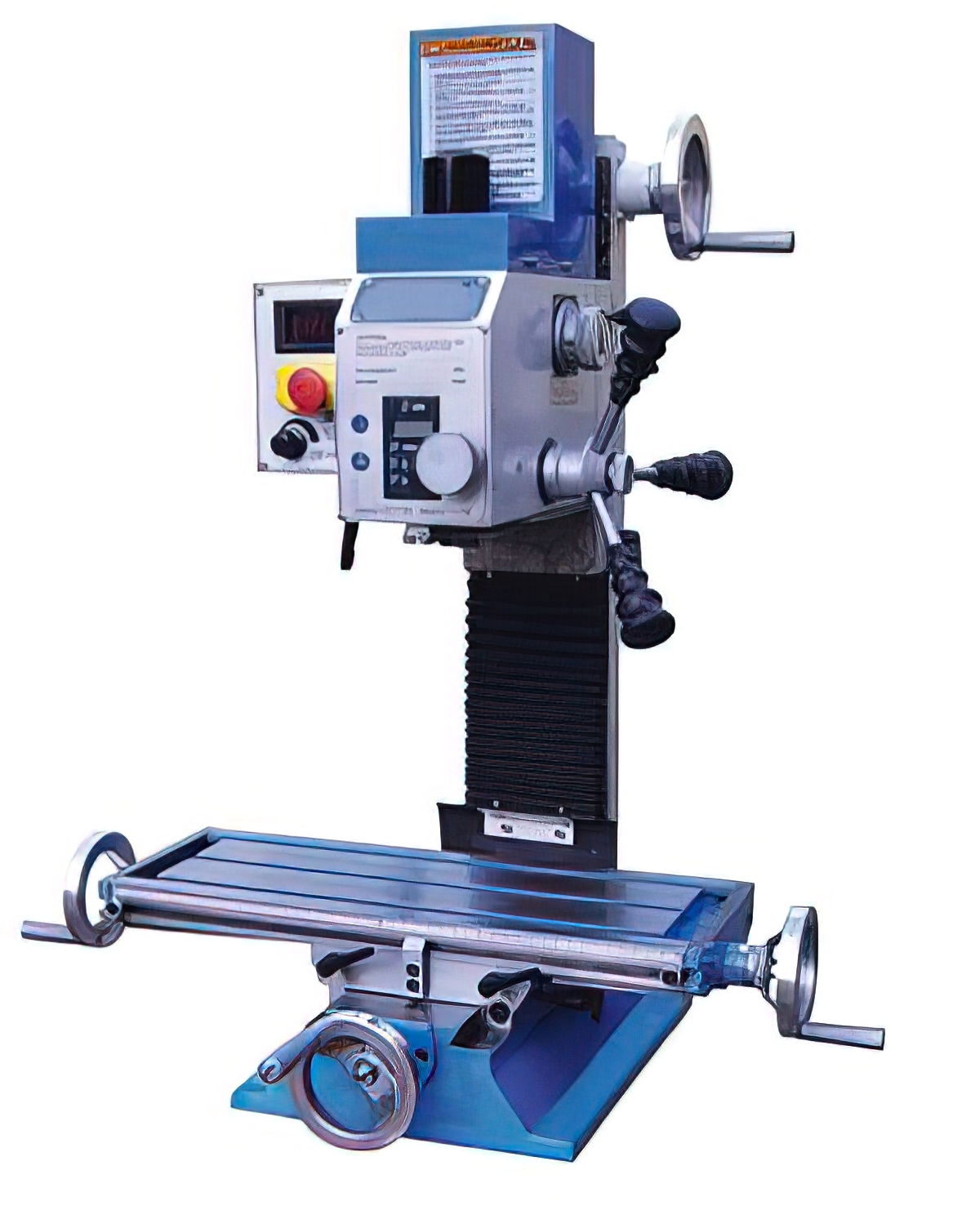

MD20V / 20LV Milling Drilling Machine

Category: Milling Drilling Machine



  Model No.

MD20V / MD20LV

    Item No.



 Specifications

 Max. drilling capacity

20 mm

 Max. end milling capacity

16 mm

 Max. face milling capacity

63 mm

 Table size

500/700x180 mm

 Table travel (X,Y)

290/490x155 mm

 T-slot

3x12 mm

 Spindle taper

MT2

 Spindle stroke

50 mm

 Step of spindle speeds

Variable

 Range of spindle speeds

20-2250 rpm

 Spindle incline angle

±90°

 Distance from spindle to column

201 mm

 Distance from spindle nose to table

280 mm

 Motor

600W

 Packing size

670/870X550X860 mm

 Net weight

103/113 kg





 Standard Accessories

 Optional Accessories

 Drill chuck

 Keyless drill chuck

 Drawbar

 ER25 collet chucks

 Arbor

 WOA50 angle vice

 Digital depth ruler

 Stand & Chip tray

 Speed DRO

 58pcs clamping kits

 Toolbox & tools

 End mill
