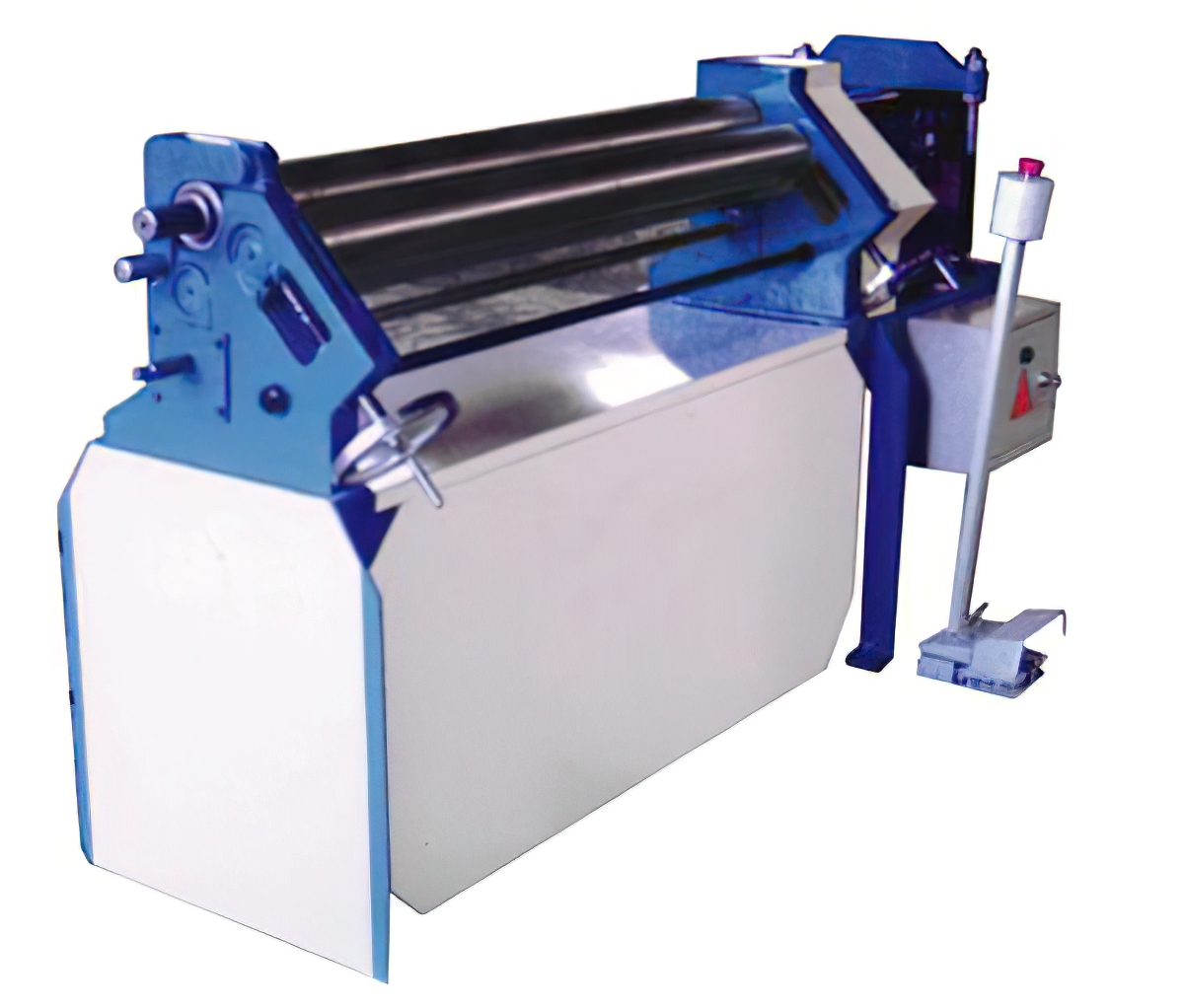

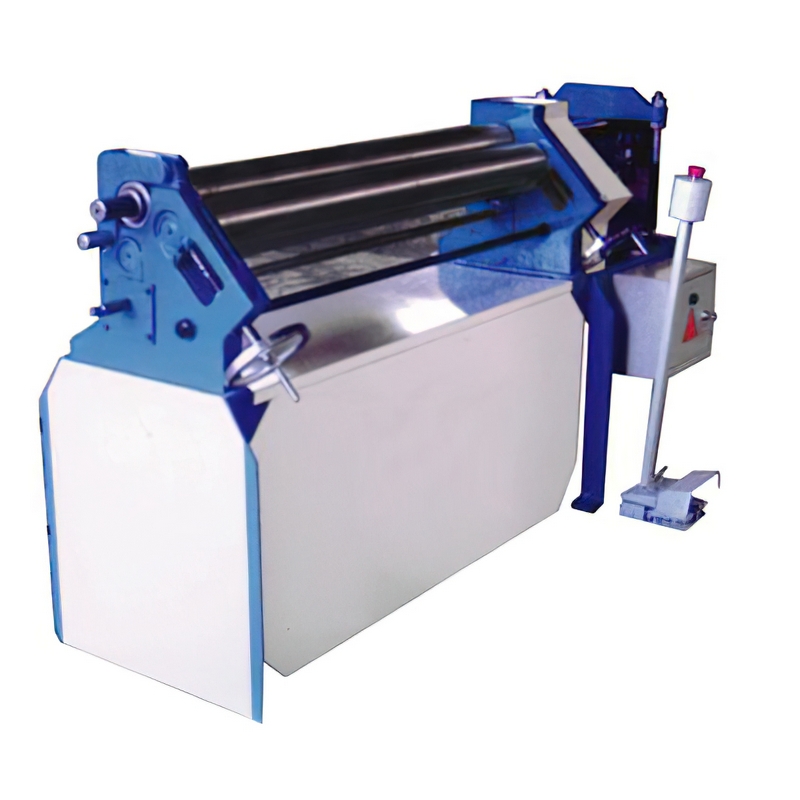

ASYMMETRIC 3-ROLLER BENDING MACHINE
Asymmetric 3-roller structure, the upper is the main drive, the down rollers take-off
and landing exercise in order to clamp plate, through the gears of the down rollers
and upper roll meshing at the same time as the main transmission; The side roll for
take-off and landing dumping campaign with pre-bending roll and a round of double
features. Compact, ease of operation and maintenance
|
Model No. |
W11F-2x1000 |
W11F-3x1200 |
W11F-3x1500 |
W11F-2x2000 |
W11F-4x1000 |
|
Item No. |
|
|
|
|
|
|
Specifications |
|||||
|
Max. Thickness (mm) |
2 mm |
2 mm |
3 mm |
2 mm |
4 mm |
|
Max. width (mm) |
1000 mm |
1200 mm |
1500 mm |
2000 mm |
1000 mm |
|
Yield Limit (mpa) |
245 mpa |
245 mpa |
245 mpa |
245 mpa |
245 mpa |
|
Minimum Diameter full |
Φ160 |
Φ180 |
Φ250 |
Φ250 |
Φ300 |
|
Top roller Diameter (mm) |
Φ110 |
Φ120 |
Φ125 |
Φ130 |
Φ130 |
|
Bottom Roller Diameter |
Φ110 |
Φ120 |
Φ125 |
Φ130 |
Φ130 |
|
Central Distance between |
110 mm |
120 mm |
125 mm |
130 mm |
130 mm |
|
Motor (kw) |
2.2 kw |
2.2 kw |
2.2 kw |
2.2 kw |
3 kw |
|
Size (LxWxH) |
168x66x117 |
208x66x117 |
238x78x117 |
288x78x127 |
178x80x127 |
|
Nei weight.(kg) |
- |
- |
- |
- |
- |
|
Model No. |
W11F-4x1500 |
W11F-4x2000 |
W11F-6x1000 |
W11F-6x1500 |
W11F-6x2000 |
|
Item No. |
|
|
|
|
|
|
Specifications |
|||||
|
Max. Thickness (mm) |
4 mm |
4 mm |
6 mm |
6 mm |
6 mm |
|
Max. width (mm) |
1500 mm |
2000 mm |
1000 mm |
1500 mm |
2000 mm |
|
Yield Limit (mpa) |
245 mpa |
245 mpa |
245 mpa |
245 mpa |
245 mpa |
|
Minimum Diameter full |
Φ300 |
Φ350 |
Φ350 |
Φ400 |
Φ400 |
|
Top roller Diameter (mm) |
Φ135 |
Φ150 |
Φ140 |
Φ150 |
Φ160 |
|
Bottom Roller Diameter |
Φ135 |
Φ150 |
Φ140 |
Φ150 |
Φ160 |
|
Central Distance between |
135 mm |
150 mm |
140 mm |
150 mm |
160 mm |
|
Motor (kw) |
3 kw |
3 kw |
3 kw |
4 kw |
4 kw |
|
Size (LxWxH) |
238x80x127 |
288x80x127 |
188x66x137 |
238x100x157 |
288x100x157 |
|
Nei weight.(kg) |
- |
- |
- |
- |
- |
