Metal Forming Machine

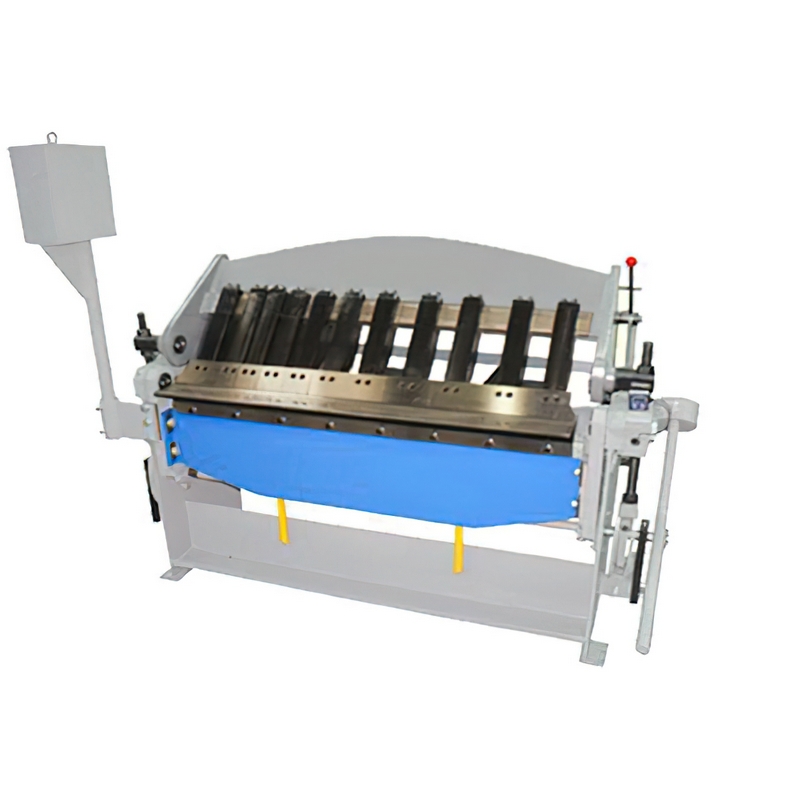

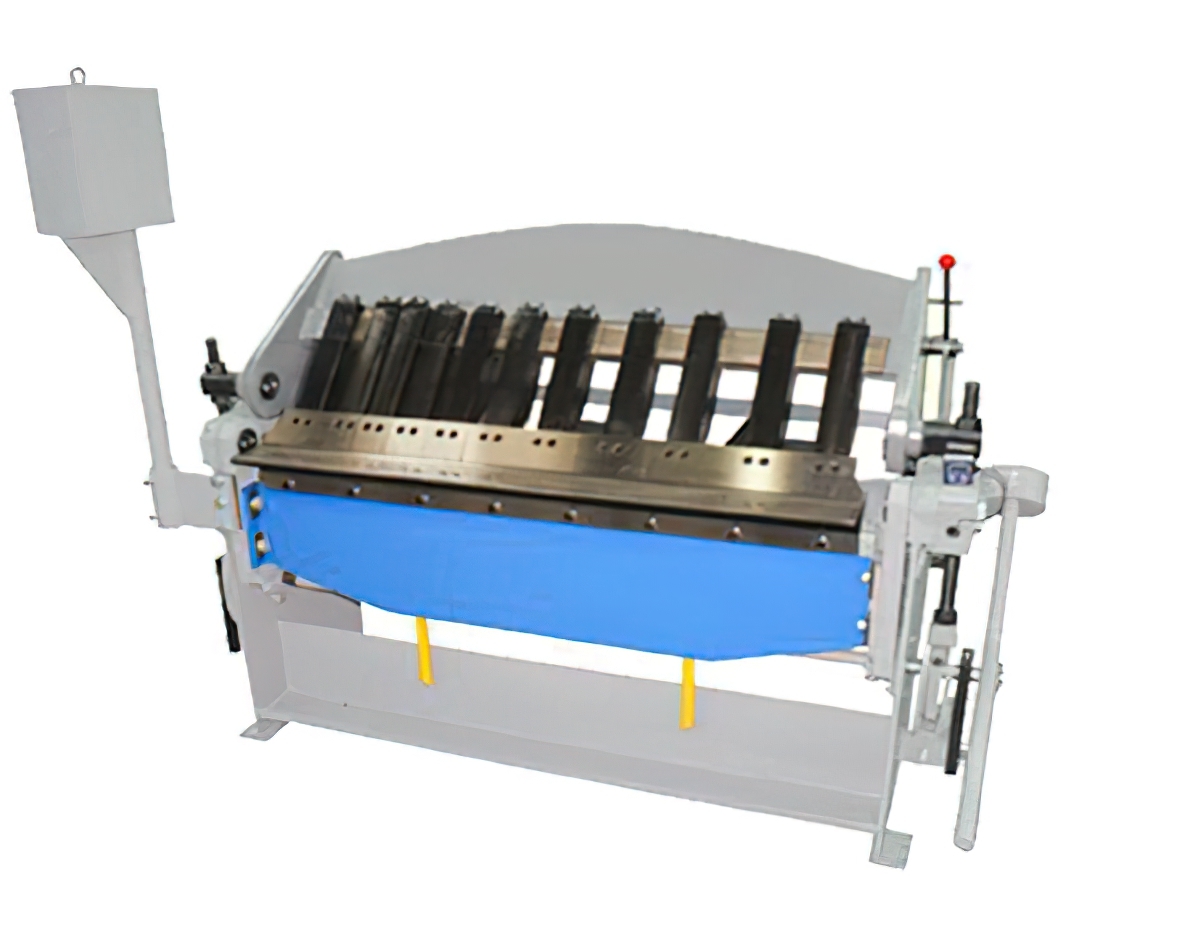

PB1250, PB2440 Bending Machine Metal Forming Machine

Category: Bending Machine

Features
● Heavy duty steel fabricated frame provides accurate bends
● Extended fingers allows bending of pans or boxes to a depth of 200mm
● Machine equipped with a graduation ruler on both sides, readout eliminates the bend angle guess work
● Ground segmented fingers can be repositioned to suit many applications
● Safety top beam support stop lever located on right side of machine
● Quick action beam adjustment for varying material thickness
● Includes rear manual back gauge



 Model No.

PB1250

PB2440

 Item No.





 Specifications



 Max.bending Length (mm)

1250 mm

2440 mm

 Max.bendingThickness(mm)

0.5~2.0 mm

0.5~2.0 mm

 Max.Clamping lift (mm)

220 mm

220 mm

 Floding angle

0~130°

0~130°

 Dimension

1820x560x1290 mm

2940x570x1470mm

 Net weight (kgs)

730 kgs

1430 kgs
