Metal Forming Machine

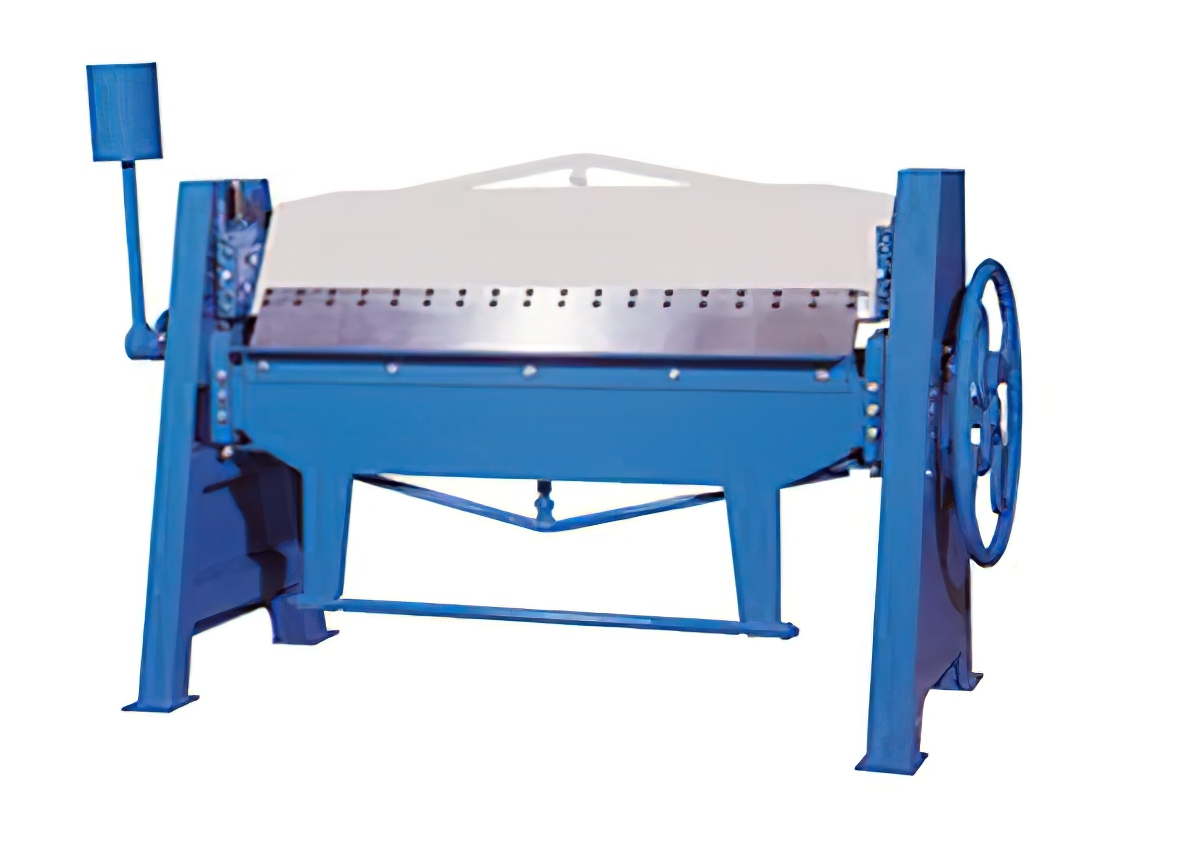

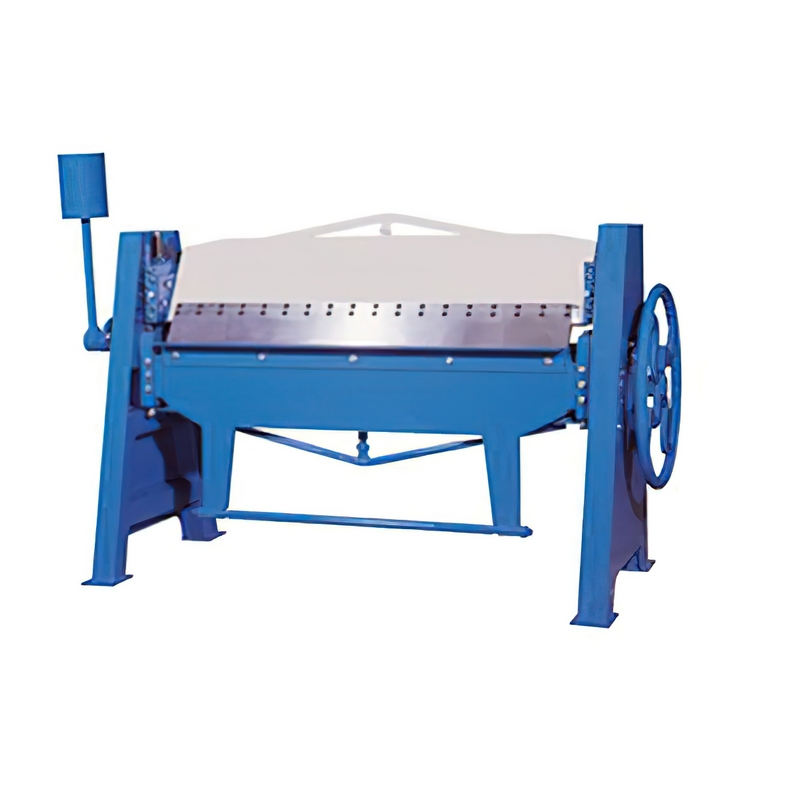

HF-1.5x1300B ~ HF-2.5x1300B Bending Machine Metal Forming Machine

Category: Bending Machine

FEATURE:
Its strong points is that both its up and down movements are
adjustable. It can process workpieces according to the customer's
requirement. Hand folders are suitable to duct making ,metal
box forming and pan processing.





Model No.

Bending length

Folding Thickness

Folding Angle

Dimension

Weight

HF-1.5×1300B

1300mm

1.5 mm

60 °

180x80x110cm

390kg

HF-1.5×1500B

1500mm

1.5 mm

60 °

210x80x110cm

480kg

HF-1.5×2000B

2000mm

1.5 mm

60 °

260x80x110cm

700kg

HF-1.5×2500B

2500mm

1.5 mm

60 °

310x80x110cm

780kg

HF-2×1300B

1300mm

2 mm

60 °

185x80x110cm

520kg

HF-2×1500B

1500mm

2 mm

60 °

205x80x110cm

580kg

HF-2×2000B

2000mm

2 mm

60 °

260x80x120cm

1150kg

HF-2×2500B

2500mm

2 mm

60 °

310x80x120cm

1500kg

HF-2×3100B

3100mm

2 mm

60 °

380x80x120cm

2800kg

HF-2.5×1300B

1300mm

2.5 mm

60 °

190x80x110cm

700kg
