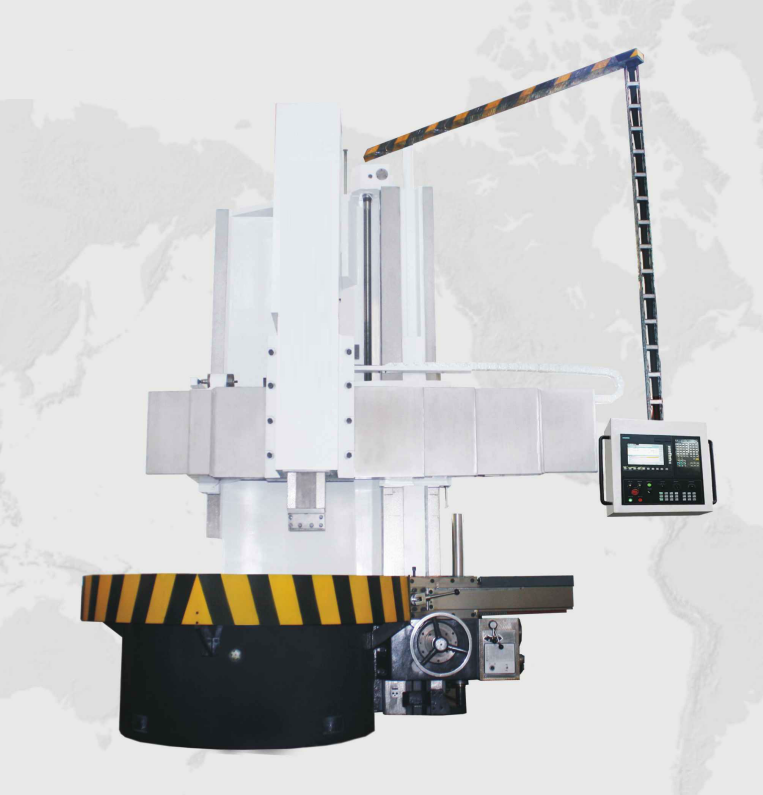

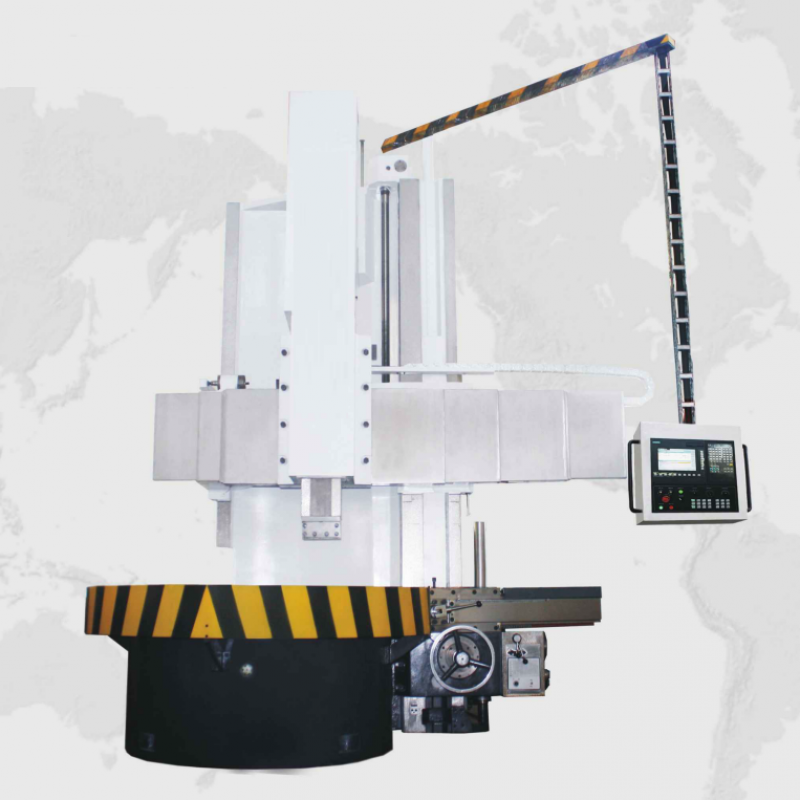

VLK516 / VLK5110 / VLK5112 Single column CNC vertical lathe

Category: Vertical Lathe

Model No.

VLK516

VLK5110

VLK5112

 Item No.







 Specifications



 Max. turning diameter

630 mm

1000 mm

1250 mm

 Table diameter

630 mm

900 mm

1000 mm

 Max. height of workpiece

600 mm

800 mm

1000 mm

 Max. weight of workpiece

0.8 T

2 T

3.2 T

 Range of table speed

5-375 r/min

8-250 r/min

6.3-200 r/min

 Table speed steps

2 gears stepless

16/2 geasr stepless

16/2 stepless

 Range of feed rates

0.1-1000 stepless mm/min

0.1-1000 stepless mm/min

0.1-1000 stepless mm/min

 Max. cutting force

20 KN

20 KN

20 KN

 Max. torque of table

10 KN.M

12.5 KN.M 12.5 KN.M

 Horizontal travel of rail head

500 mm

670 mm 700 mm

 Vertical travel of rail head

500 mm

650 mm 650 mm

 Travel of cross rail

500 mm

580 mm 650 mm

 Swivel of rail head

± 30°degree

± 30°degree ± 30°degree

 Rapid traverse of rail head

2000 mm/min

3000 mm/min 3000 mm/min

 Elevating speed of cross rail

750 mm/min

660 mm/min 660 mm/min

 Power of main motor

11 kw

22 kw 22 kw

 Overall dimensions

2100*1400*2600 mm

2650*2711*3400 mm 2750*2640*3500 mm

 Machine weight(approx)

3 T

6.8/7.3 T 8/8.5 T
