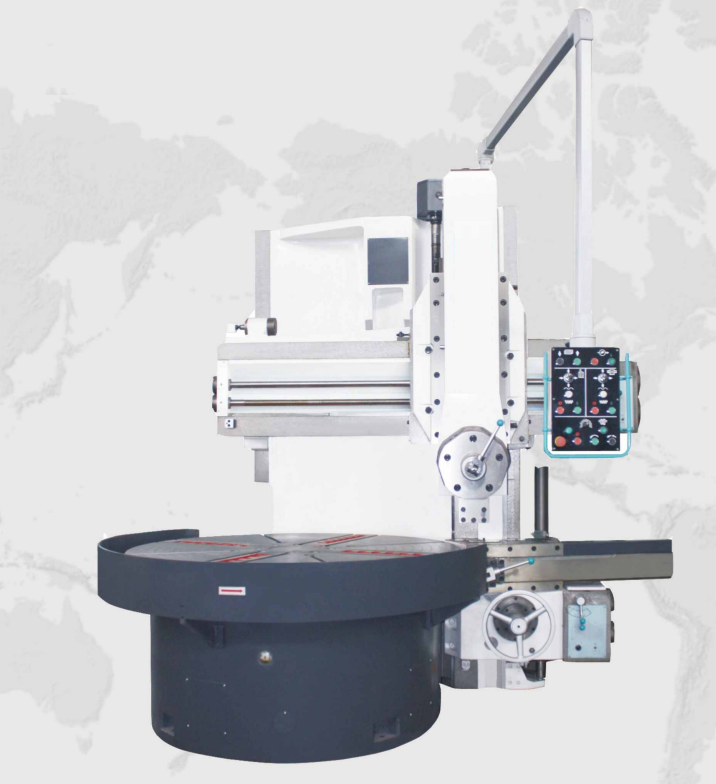

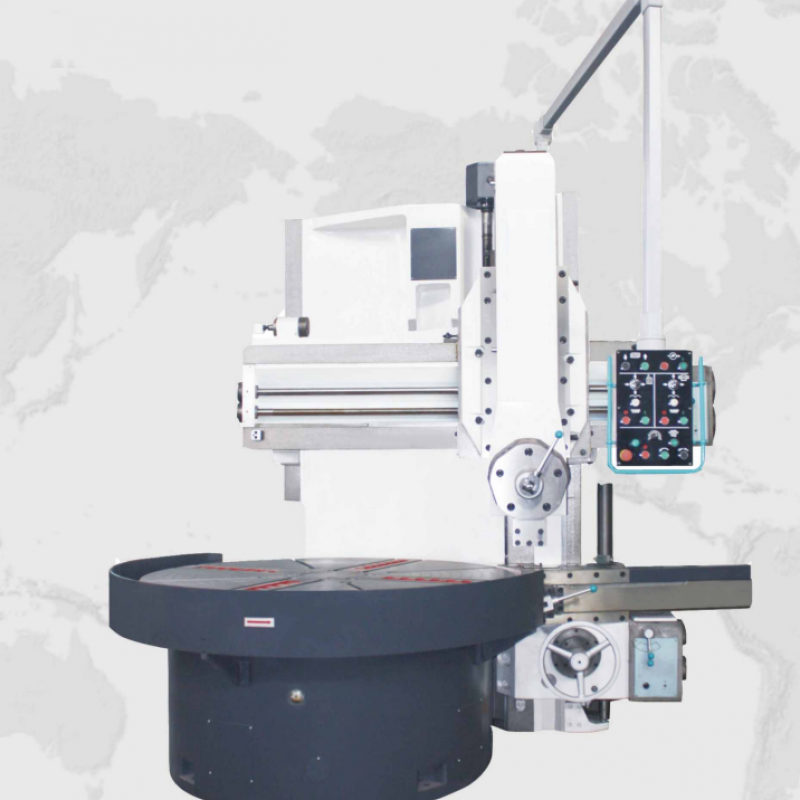

VL516 / VL5110 / VL5112 Single column conventional vertical lathe

Category: Vertical Lathe

Model No.

VL516

VL5110

VL5112

 Item No.







 Specifications



 Max. turning diameter

630 mm

1000 mm

1250 mm

 Table diameter

630 mm

900 mm

1000 mm

 Max. height of workpiece

600 mm

800 mm

1000 mm

 Max. weight of workpiece

0.8 T

2 T

3.2 T

 Range of table speed

60-200 r/min

8-250 r/min

6.3-200 r/min

 Table speed steps

3 steps

16 steps

16 steps

 Range of feed rates

15-45 mm/min

0.8-86 mm/min

0.8-86 mm/min

 Max. cutting force

20 KN

20 KN

20 KN

 Max. torque of table

10 KN.M

12.5 KN.M 12.5 KN.M

 Horizontal travel of rail head

500 mm

670 mm 700 mm

 Vertical travel of rail head

500 mm

800/650 mm(turret) 800/650 mm(turret)

 Travel of cross rail

500 mm

580 mm 650 mm

 Swivel of rail head

± 30°degree

± 30°degree ± 30°degree

 Rapid traverse of rail head

1350 mm/min

1800 mm/min 1800 mm/min

 Elevating speed of cross rail

750 mm/min

660 mm/min 660 mm/min

 Power of main motor

11 kw

22 kw 22 kw

 Overall dimensions

2100*1400*2600 mm

2187*2711*3230 mm 2460*2330*3430 mm

 Machine weight(approx)

3 T

7.8 T 9 T

  Side head



 Max. turning diameter

/

1000 mm 1100 mm

 Max. cutting force

/

15 KN 20 KN

 Horizontal travel

/

500 mm 500 mm

   Vertical travel

/

810 mm

900 mm
