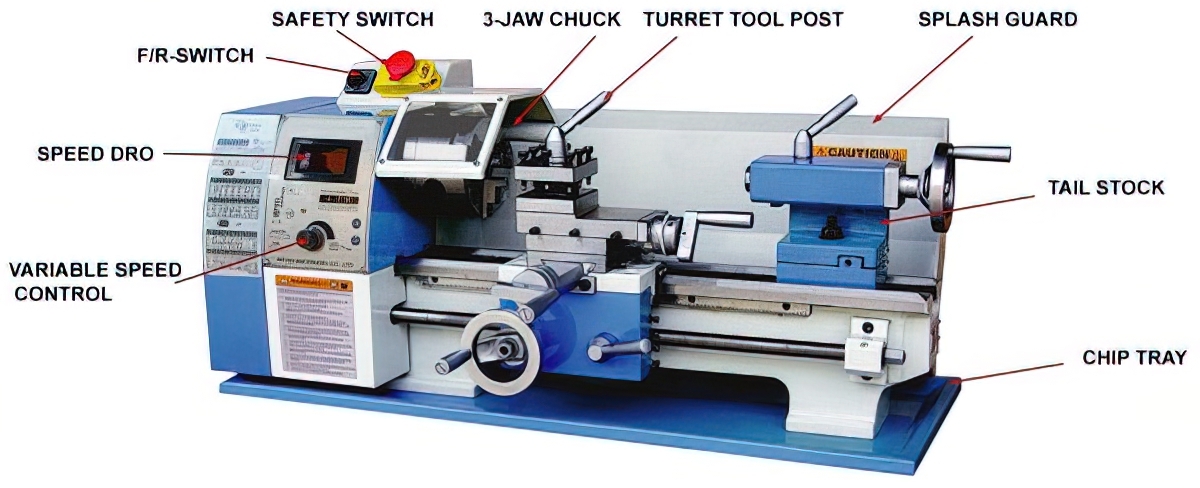

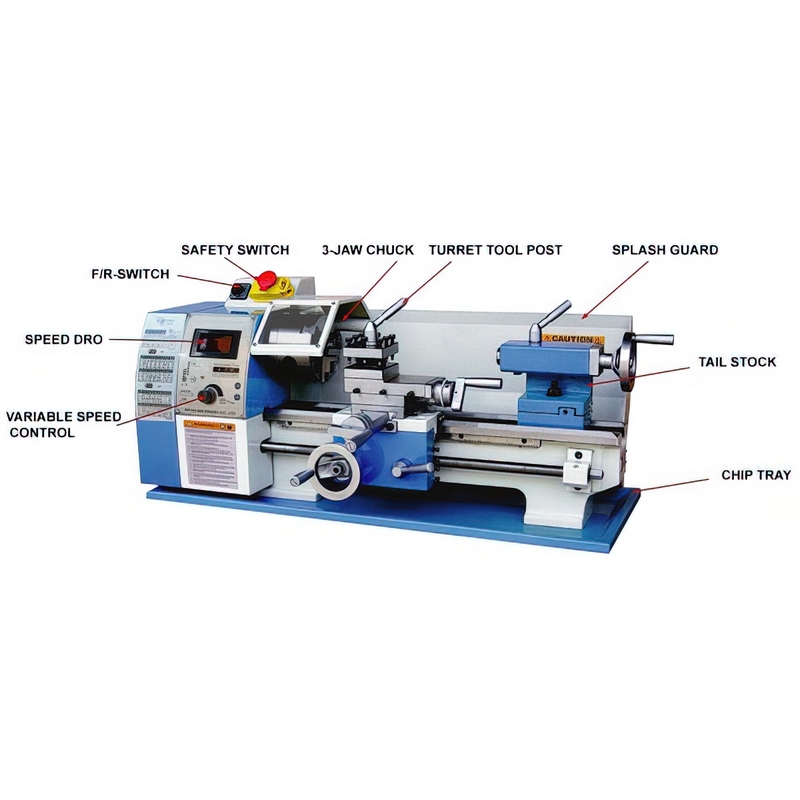

TN180V/2 Variable Speed Lathe Machine

Category: Variable Speed Lathe

FEATURE:
●  V-way bed is hardened and precision ground.
●Spindle is supported by precision taper roller bearing.
●Power longitudinal feed allows threading.
●Adjustable gibs for slideways.
●Tailstock can be offset for turning tapers.
●Tolerance test certificate, test fIow chart included.





   Model No.

TN180V/2

    Item No.



 Specifications

 Distance between centers

300 mm

 Swing over bed

180 mm

 Swing over cross slide

95 mm

 Width of bed

100 mm

 Taper of spindle bore

MT3

 Spindle bore

21 mm

 Range of spindle speeds (steps)

50-2500 rpm

 Range of longitudinal feeds

0.08 - 0.16 mm

 Range of inch threads

10 - 44T.P.I

 Range of metric threads

0.5-3 mm

 Top slide travel

55 mm

 Cross slide travel

75 mm

 Tailstock quill travel

60 mm

 Taper of tailstock quill

MT2

 Main motor

450W

 Packing size

800x480x460 mm

 Net weight

60 kg





 Standard Accessories

 Optional Accessories

 3-jaw chuck (100mm)

 4-jaw chuck (100mm)

 Splash guard

 Backplate

 Chip tray

 Follow rest

 Toolbox & tools

 Steady rest



 Face plate (175mm)



 Threading dial



 Stand
