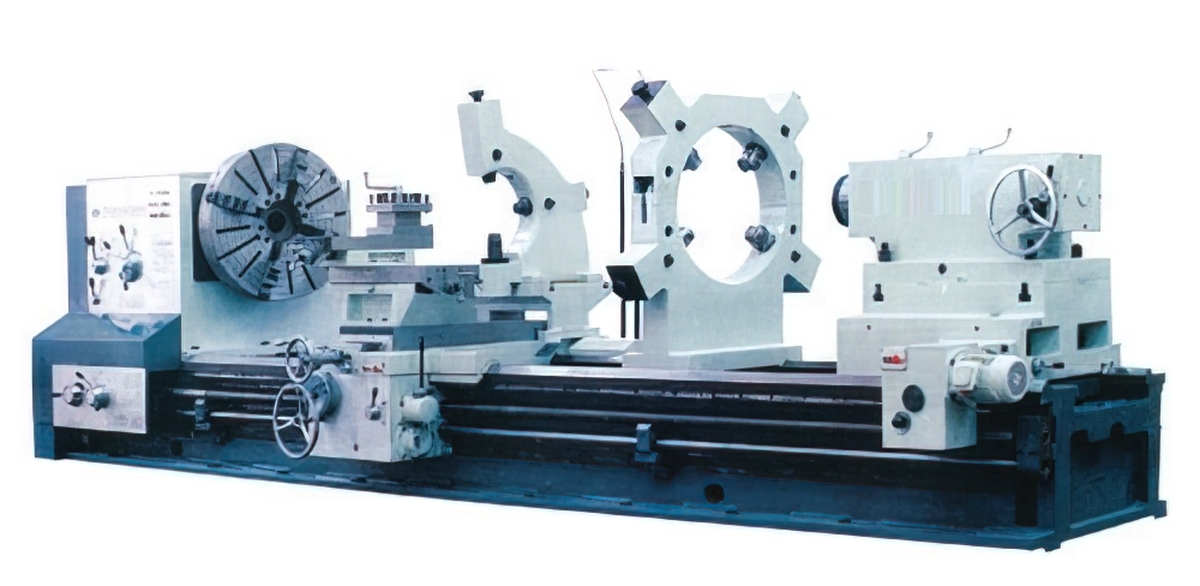

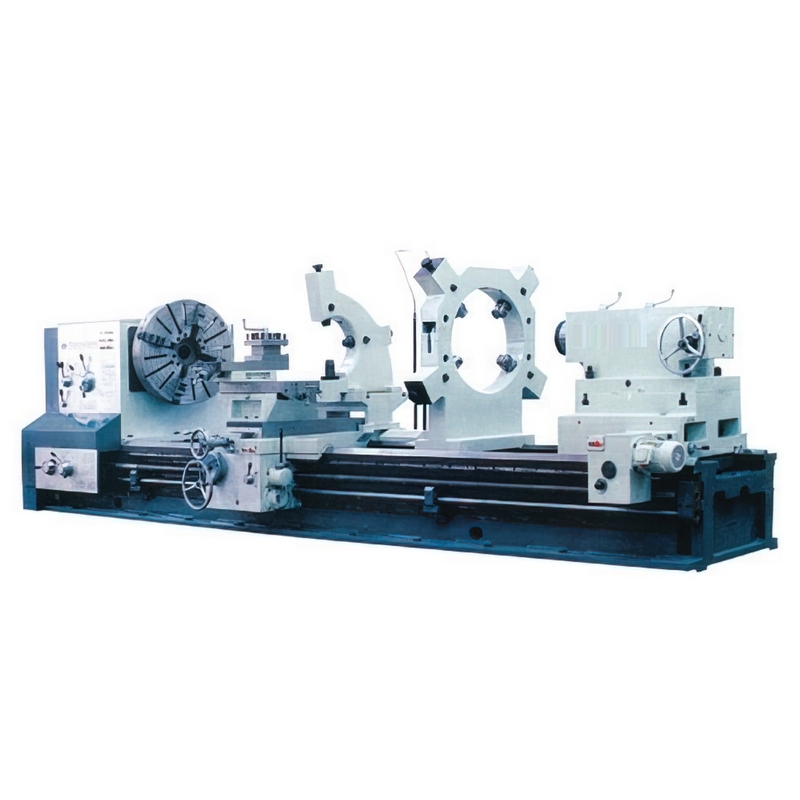

TL1280T ~ TL2080T Heavy Duty Lathe Machine

Category: Heavy Duty Lathe

Model No.	TL1280T	TL1480T	TL1680T	TL1980T	TL2080T
Item No.
Specifications
Max.weight of workpiece	10T
Max swing over bed	1280 mm	1480 mm	1680 mm	1980 mm	2080 mm
Max swing over cross slide	800 mm	1000 mm	1200 mm	1500 mm	1600 mm
Center distance	2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
Width of bed	1100 mm
Spindle bore	Φ130 mm
Spindle taper	metric140#
Spindle speeds	3.15~315 r/min or 2-200 r/mm or 2.5~250 r/mm, foreward.21,kinds, reversal.12,kinds
Metric threads range	44 kinds 1~120 mm
Inch threads range	31 kinds 1/4~24/inch
Moudle threads range	45 kinds 0.5~60 mm
Diametrical threads range	38 kinds 1 / 2~56DP
Longitudinal feeds range	56 kinds 0.1~12 mm
Cross feed range	56 kinds 0.05~6 mm
Rapid feed Longitudinal/Cross	3400 mm/min.,1700 mm/min.
Distance between Center & Tool	48 mm
Tool section	45x45 mm
Cross slide travel	860 mm
Compound rest travel	280 mm
Tailstock quill travel	300 mm
Tailstock quill diameter	Φ260 mm
Tailstock quill taper	metric 80#
Main motor	30 kw
Coolant pump motor	150W
Rapid feed motor	1.5 kw
Tailstock motor	1.5 kw
