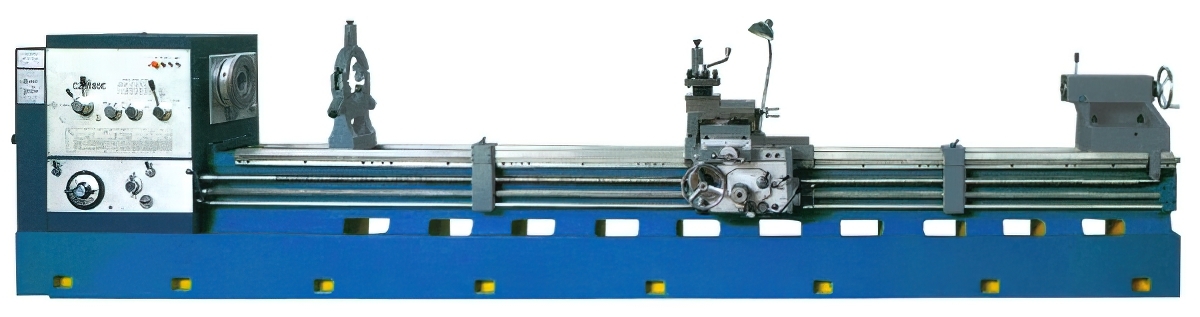

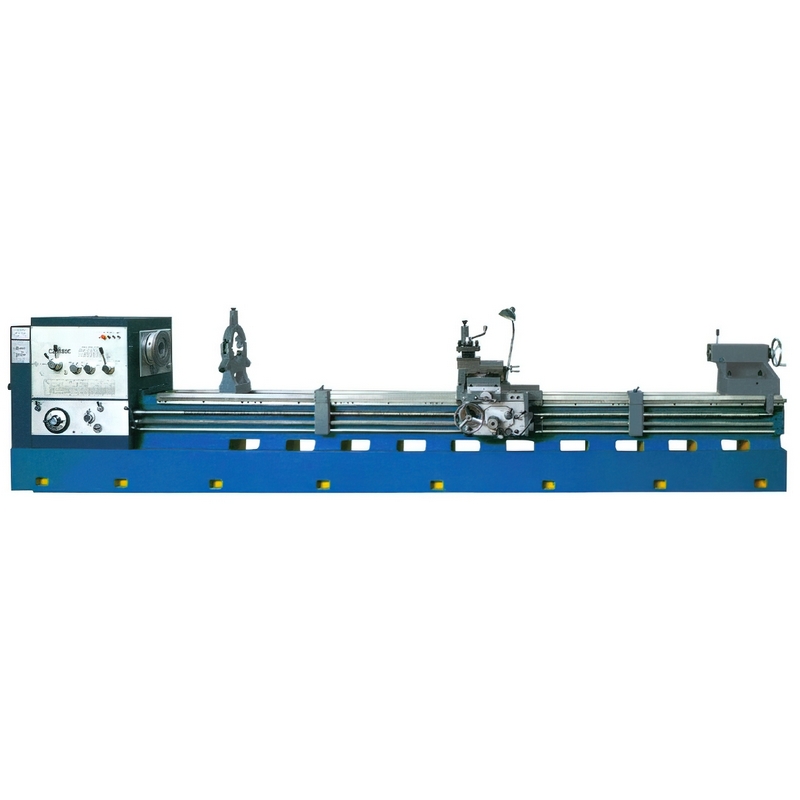

TN800C/850D/1000C/1000D/1000B Heavy Duty Lathe Machine

Category: Heavy Duty Lathe

Model No.	TN800C	TN1000C	TN1200C	TN850D	TN1000D	TN1000B
Item No.
Specifications
Distance between centers	1/1.5/2/3/4/5/6/8/10/12 m				1/1.5/2/3/4/5/6/8 m
Swing over bed	800 mm	1000 mm	1200 mm	1200 mm	1200 mm	1200 mm
Swing over gap	1000 mm	1200 mm	1400 mm	1400 mm	1400 mm	1400 mm
Swing over cross slide	485 mm	685 mm	685 mm	685 mm	685 mm	685 mm
Width of bed	550 mm	550 mm	550 mm	500 mm	500 mm	550 mm
Spindle bore	105 mm	105 mm	105 mm	130 mm	130 mm	130 mm
Spindle nose	C-11 or D-11
Spindle taper	1:20
Range of spindle speeds	14-750 rpm / 18
Range of cross feeds	0.015-7.6 mm/r 72 kinds
Range of longitudinal feeds	0.05-22.8 mm/r 72 kinds
Range of metric threads	1-240mm 54 kinds
Range of inch threads	28-1 T. P. I. 37 kinds
Range of moduler threads	0.5-60 mm 27 kinds
Range of diametrical threads	30-1 D.P. 27 kinds
Rapid feed Longitudinal/Cross	6 m/min , 2 m/min.
Top slide travel	240 mm
Cross slide travel	420 mm
Tailstock quill travel	205 mm
Tailstock quill diameter	100 mm
Tailstock quill taper	MT6
Main motor	11 kw
Rapid feed motor	0.18 kw
Coolant pump motor	0.09 kw
