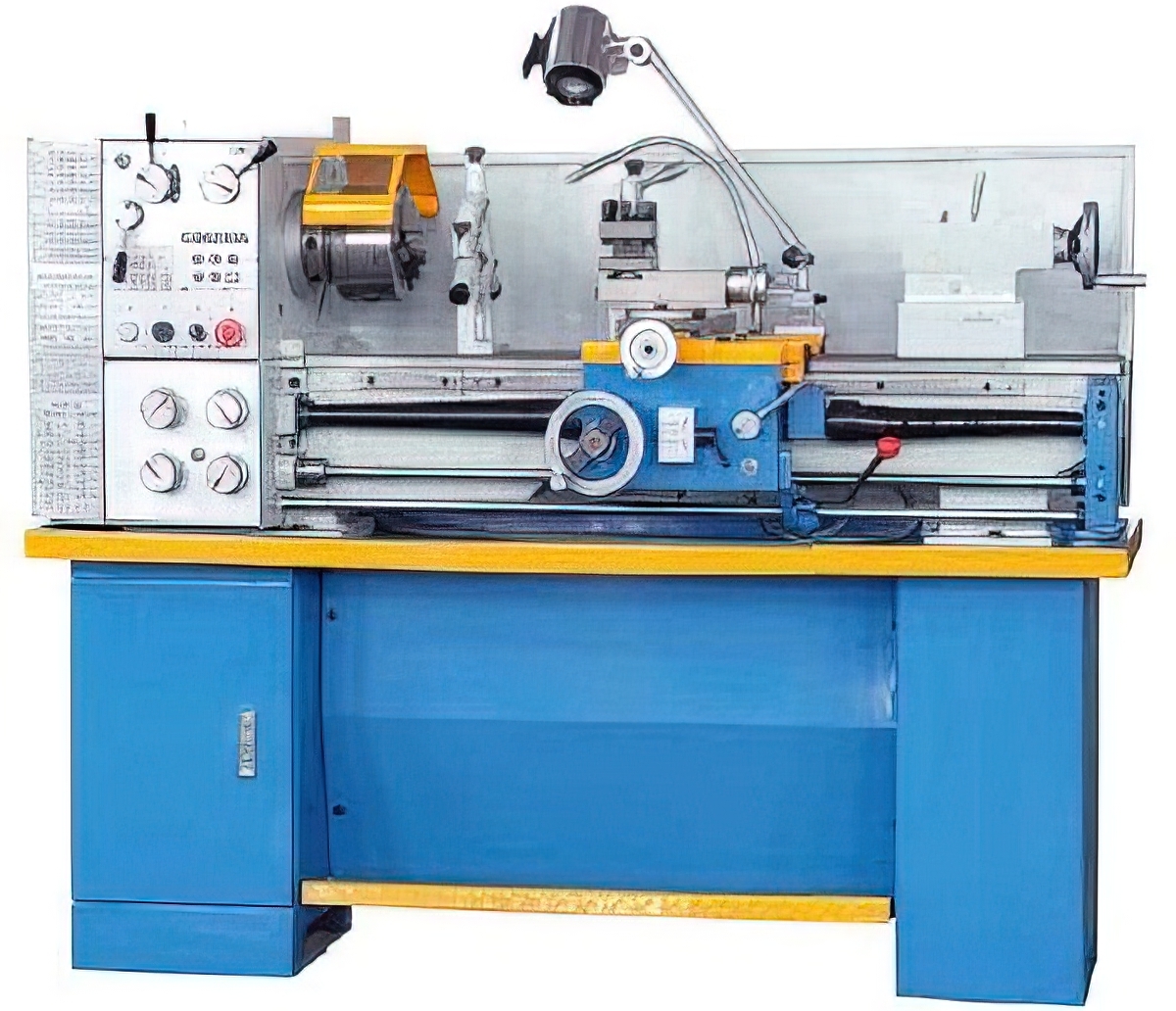

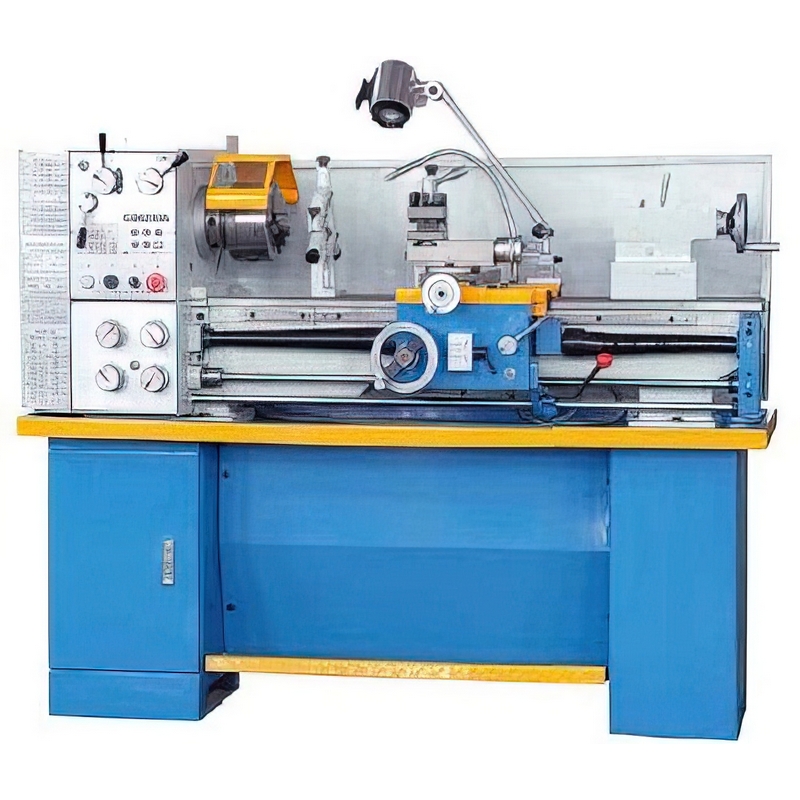

TN310 Bench Lathe Machine

Category: Engine Lathe

FEATURES:
Precision ground and supersonic frequency hardened bed ways.
The spindle is supported with precision roller bearing.
Headstock gear are made of high quality steel, ground and hardened.

Removable gap is provided for larger diameter work.

Easy operation gear box has various feeds and thread cutting function.




 Model No.

TN310

Item No.



Swing over bed dia.

310mm

Distance between centers

750 / 910 / 1000mm

Swing over cross slide dia.

180mm

Swing over gap dia.

450mm

Width of bed

181mm

Hole through spindle

38mm

Spindle taper

MT5

Tailstock taper

MT3

Spindle speed

65–1400rpm (optional 65-1810rpm)

Motor output power

1.1KW 3PH / 1.5KW 1PH

Range of metric threads

0.4 – 7mm

Range of inch threads

4 – 60 TPI

Longitudinal feed rates

0.0527 – 1.2912mm/rev

Cross feed rates

0.011 – 0.276mm/rev

Cross slide travel

130mm

Top slide travel

75mm

Tailstock quill travel

100mm

Weight (Net/Gross)

500/540kg, 520/560kg, 560/609kgs

Packing size (LxWxH)

Single package:1680x750x1420mm

Three package:1680x750x730mm,680x380x350mm,680x380x290mm





 Standard Accessories

 Optional Accessories

3 jaw chuck (160mm)

Change gear set

MT3 dead center

MT5/3 reduction sleeve

Oil gun

Splash guard

Foot stand

Tool box & tools

Oil tray



4 jaw chuck (200mm)

Steady rest, Follow rest

Work light, Foot brake system

Coolant system

Live center

Drill chuck + drill arbor

Leadscrew guard

Chuck guard

Localizer

Clutch for feed rod

Quick change tool post (U.S.A / Germany type with 1 tool post and 4 holder)

Digital readout (2 axis)
