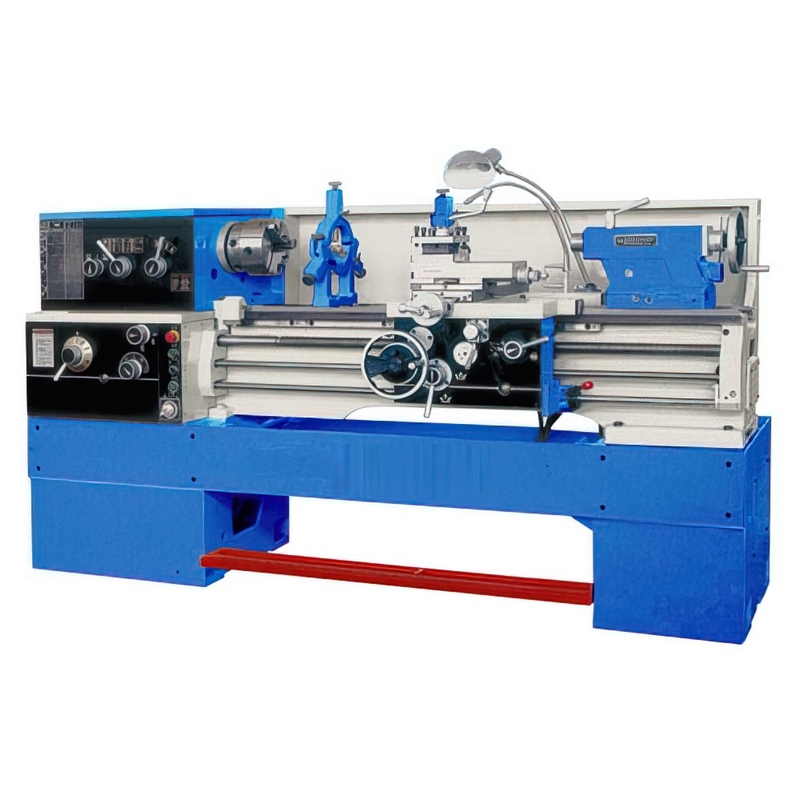

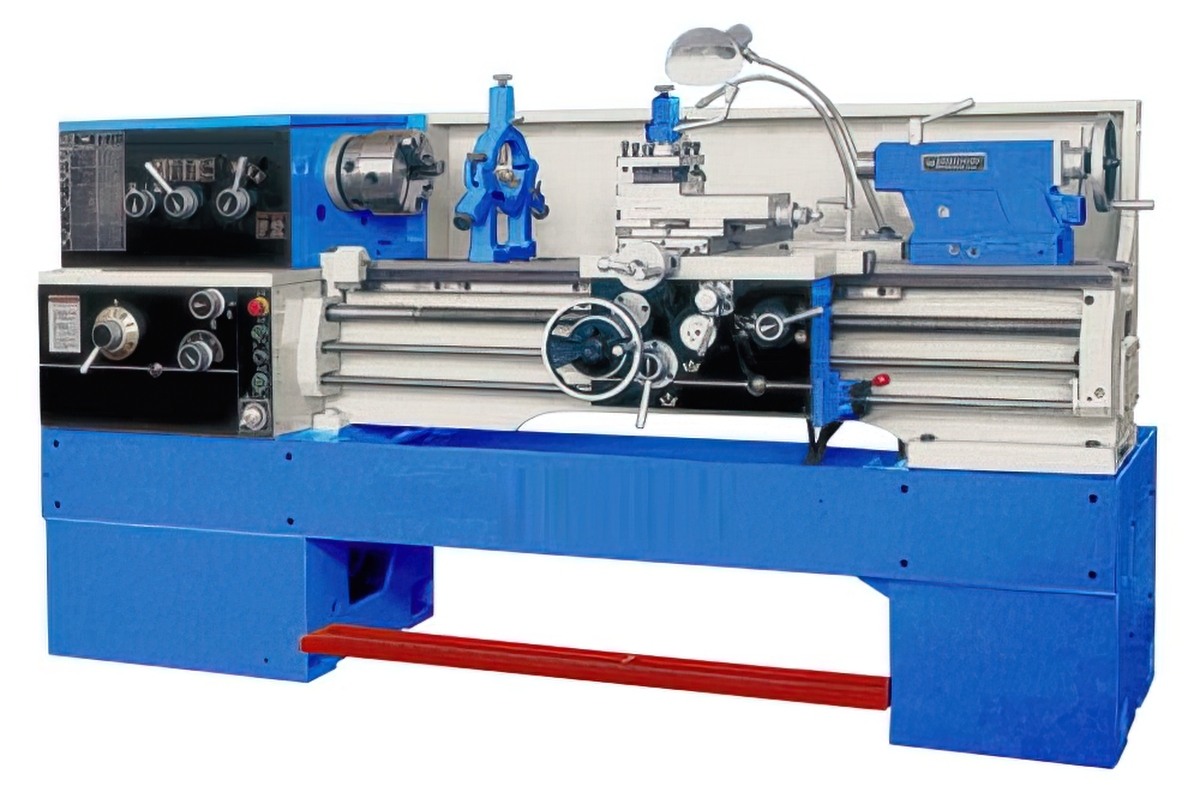

FEATURE:
●The guide way and all gears in the headstock are hardened and precision ground.
●The spindle system is high rigidity and accuracy.
●The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
●An overload safety device is provided on the apron.
●Pedal or electromagnetic braking device.
●Tolerance test certificate, test flow chart included
|
Model No. |
TN410 |
TN460 |
|
Item No. |
|
|
|
Specifications |
||
|
Distance between centers |
750/1000/1500 mm |
|
|
Swing over bed |
410 mm |
460 mm |
|
Swing over gap |
570 mm |
630 mm |
|
Swing over cross slide |
255 mm |
275 mm |
|
Bed width |
336 mm |
336 mm |
|
Taper of spindle bore |
MT6 |
MT6 |
|
Spindle bore |
52 mm |
52 mm |
|
Step of spindle speeds |
12 |
12 |
|
Range of spindle speeds |
40~1800 rpm |
40~1800 rpm |
|
Range of cross feeds |
0.03~1.23 mm/r |
0.03~1.23 mm/r |
|
Range of longitudinal feeds |
0.04~2.46 mm/r |
0.04~2.46 mm/r |
|
Range of inch threads |
1-5/8-72 T.P.I/61 |
1-5/8-72 T.P.I/61 |
|
Range of metric threads |
0.5~20 mm/24 |
0.5~20 mm/24 |
|
Range of moduler threads |
0.25-10 M.P/20 |
0.25-10 M.P/20 |
|
Range of diametrical threads |
3-1/4-96 D.P/45 |
3-1/4-96 D.P/45 |
|
Top slide trave |
100 mm |
100 mm |
|
Cross slide travel |
240 mm |
240 mm |
|
Tailstock quill travel |
120 mm |
120 mm |
|
Taper of tailstock quill |
MT4 |
MT4 |
|
Main motor (double speeds) |
4 / 5.5 kw |
|
|
Packing size |
(2140/2360/2860)x1100x1640 mm |
|
|
Net weight |
1730/1810/1970 kg |
1780/1860/2020 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (200mm) |
Quick change tool post |
|
4-jaw chuck (250mm) |
Turning tools |
|
Face plate (405mm) |
Leadscrew cover |
|
Steady rest |
Chuck guard |
|
Follow rest |
Tool post cover |
|
Splash guard |
Digital readout system |
|
Stand |
Taper turning attachment |
|
Halogen work lamp |
|
|
Toolbox & tools |
|
|
Coolant system |
|
|
Foot brake |
|
|
Five position carriage stop |
|
