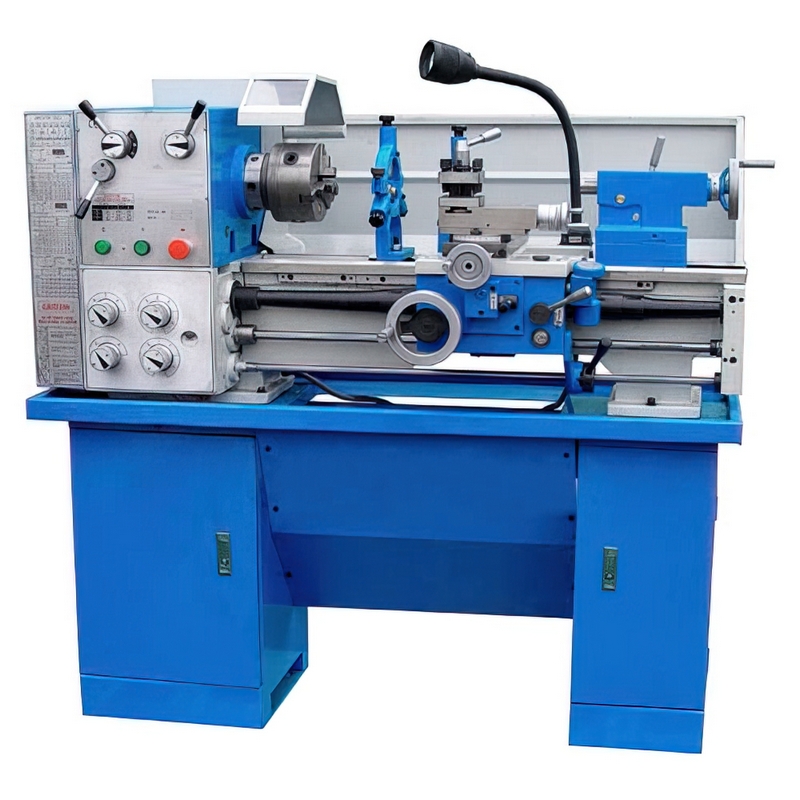

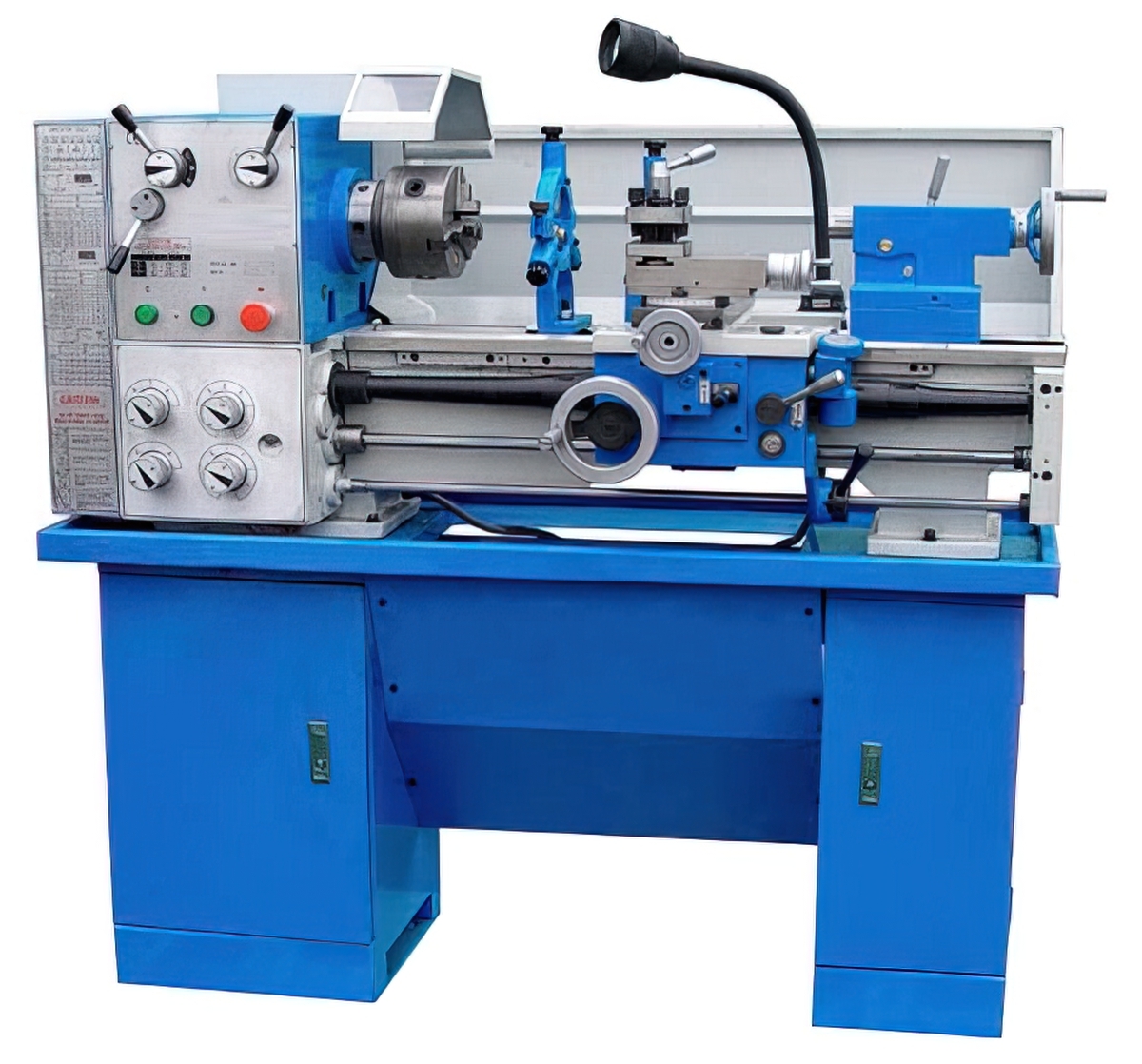

TN300A Bench Lathe Machine

Category: Engine Lathe

FEATURE:
●  Induction hardened, precision ground V-way bed.
●  D1-4 spindle is supported by high quality tapered roller bearing.
●  Hardened, precision ground gears in headstock.
●  Gearbox has large feed and threading functions.
●  Independent leadscrew and feed rod.
●  Carriage mounted spindle control lever.
●  Adjustable gibs for slideways.
●  Automatic feed and threading are fully interlocked.
●  Tailstock can be offset for turning tapers.
●  Tolerance test certificate, test flow chart included.





 Model No.

TN300A

    Item No.



 Specifications

 Distance between centers

750/914 mm

 Swing over bed

300 mm

 Swing over gap

430 mm

 Swing over cross slide

180 mm

 Width of bed

181 mm

 Taper of spindle bore

MT5

 Spindle bore

38 mm

 Step of spindle speeds

9

 Range of spindle speeds

75-1400 rpm





 Range of cross feeds

0.018-0.238 mm/r

 Range of longitudinal feeds

0.078-1.044 mm/r

 Range of inch threads

2-1/2-40 T.P.I

 Range of metric threads

0.45-10 mm

 Top slide travel

76 mm

 Cross slide travel

175 mm

 Tailstock quill travel

90 mm

 Taper of tailstock quill

MT3

 Motor

1.1 kw

 Packing size

1730/1960x750x1450 mm

 Net weight

480/550 kg





 Standard Accessories

 Optional Accessories

 3-jaw chuck (160mm)

 Coolant system

 4-jaw chuck (200mm)

 Foot brake

 Face plate (250mm)

 Halogen work lamp

 Steady rest

 Taper turning attachment

 Follow rest

 Digital readout system

 Splash guard

 Micro carriage stop

 Stand & oil tray

 Leadscrew cover

 Toolbox & tools

 Chuck guard



 Tool post cover



 Quick change tool post



 Turning tools
