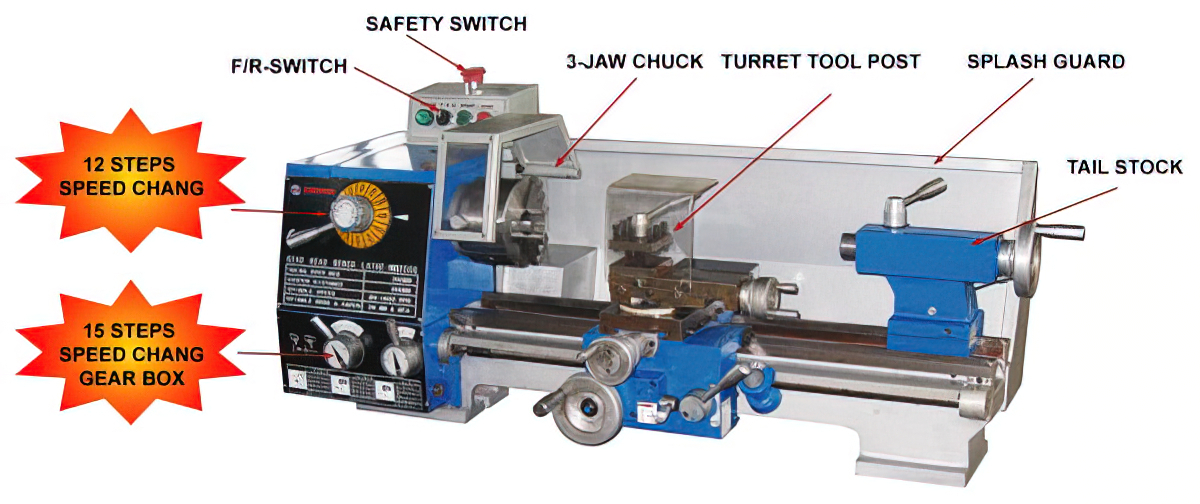

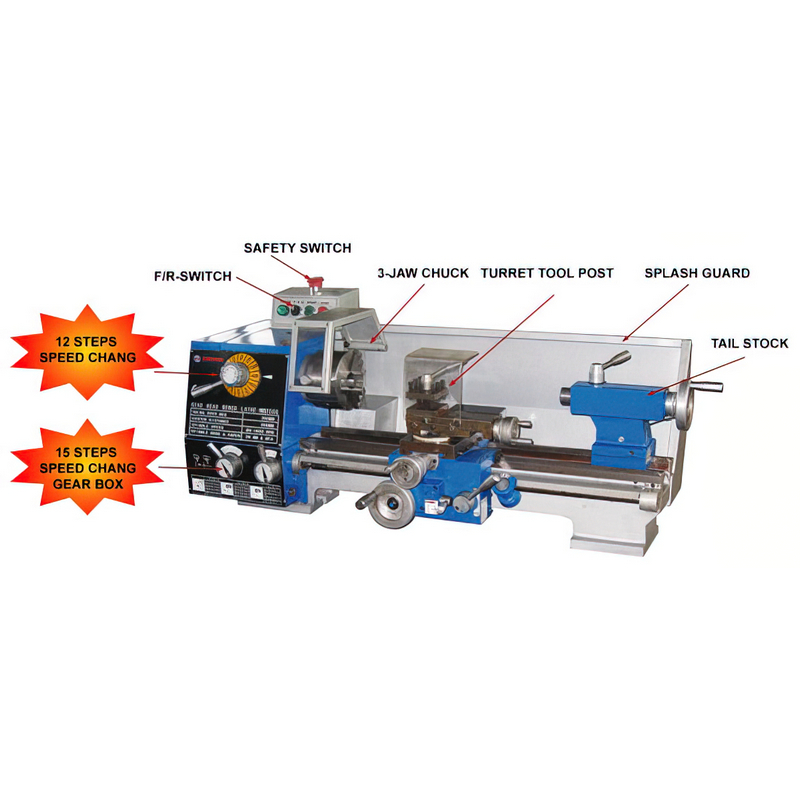

TN250G Bench Lathe Machine

Category: Bench Lathe



FEATURE:
● Most economical, widely useful hobby lathe.
● Induction hardened and ground bedway.
● Geared headstock enables to change speeds quickly.
● Large MT4 spindle bore.
● Power longitudinal feed allows threading.
● New enclosed quick-change gear box with large
feed and threading functions.
● Precise cuts with cross & longitudinal powerfeed.
● Tailstock can be offset for turning taper.
● Tolerance test certificate, test flow chart included.





  Model No.

TN250G

    Item No.



 Specifications

 Distance between centers

500 mm

 Swing over bed

250 mm

 Swing over cross slide

150 mm

 Width of bed

140 mm

 Taper of spindle bore

MT4

 Spindle bore

26 mm

 Number of spindle speeds

12

 Range of spindle speeds

80~1600 rpm

 Range of longitudinal feeds

0.03~0.275 mm

 Range of inch threads

12~96 T.P.I

 Range of metric threads

0.25~2.5 mm

 Top slide travel

75 mm

 Cross slide travel

130 mm

 Tailstock quill travel

60 mm

 Taper of tailstock quill

MT3

 Motor

750W

 Packing size

1220x550x650 mm

 Gross / Net weight

180 / 163 kg





 Standard Accessories

 Optional Accessories

 3-jaw Chuck (130mm)

 4-jaw chuck (130 / 160mm)

 V-belt (O) 630

 Backplate

 Dead Centers

 Follow rest

 Tools Wrench

 Steady rest

 Allen Key

 Face plate (160mm)

 Open End Wrench

 Rolling Center

 Splash Guard

 Turning tool Set



 Chip Tray



 Threading dial



 Stand
