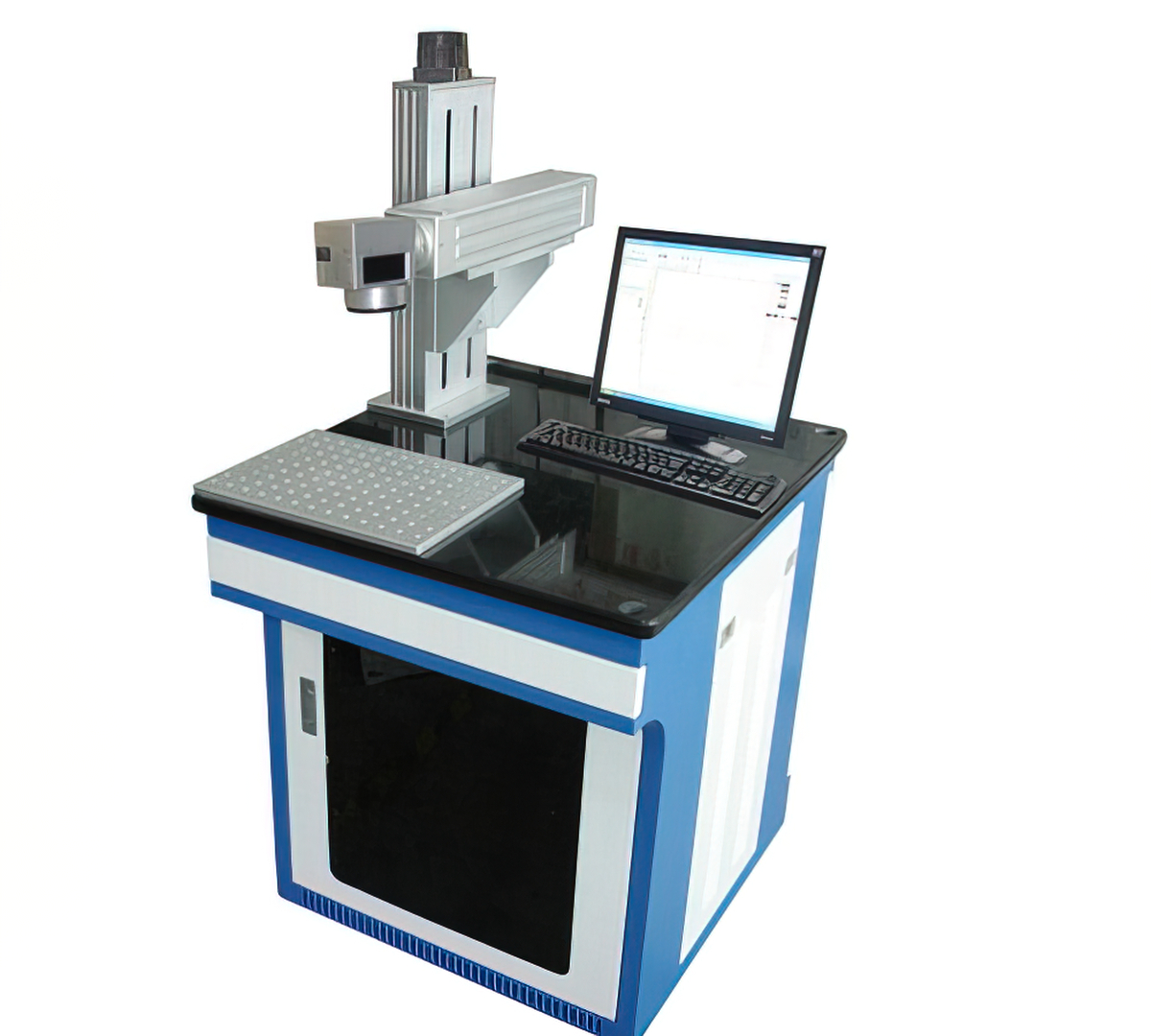

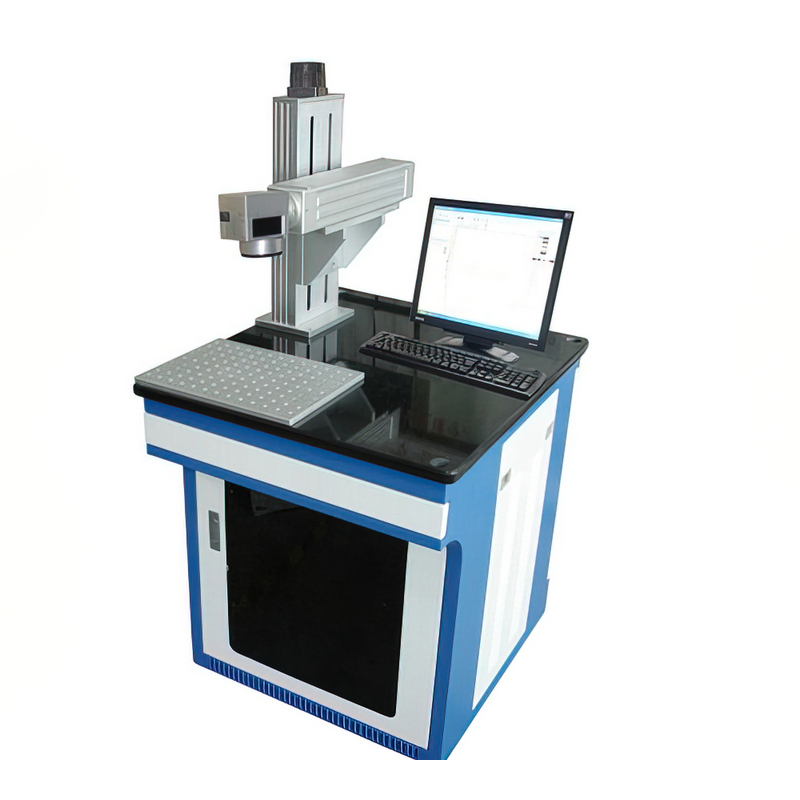

Desktop Laser Marking Machine Laser Marker Machine

Category: Laser Marker Machine

Fiver optic laser is used to output laser, featuring high electro optic conversion efficiency, small size and high light beam quality.

Suitable materials and application

It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marking, etc.



Model

LM-D10

LM-D20

Power

10W

20W

Laser wavelength

1064nm

Repeating frequency

0-100KHz

Light beam quality

<2

Carving range

30mm×30mm-300mm*300mm

Carving depth

≤0.4mm

Carving line speed

≤7000mm/s

Minimum line width

0.01mm

Minimum character

0.15mm

Repeating precision

±0.002

Power supply

220V/50Hz

Power consumption

500W

Operating system

Win98/Win2000/WinXP

Cooling method

Inbuilt air cooling

Control interface

Standard USB

File format

All fonts/characters in characters library of WINDOWS

Laser type

Pulse or continuous
