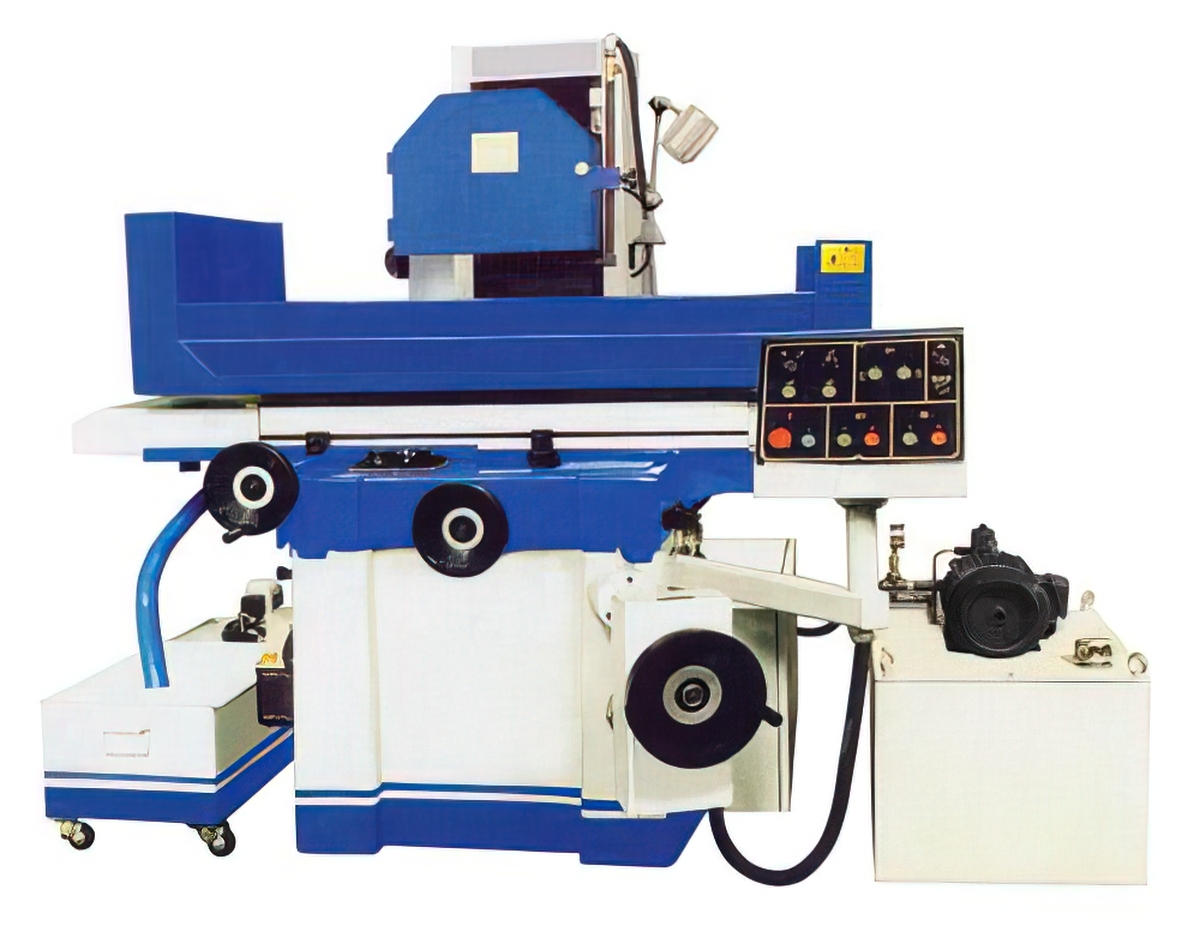

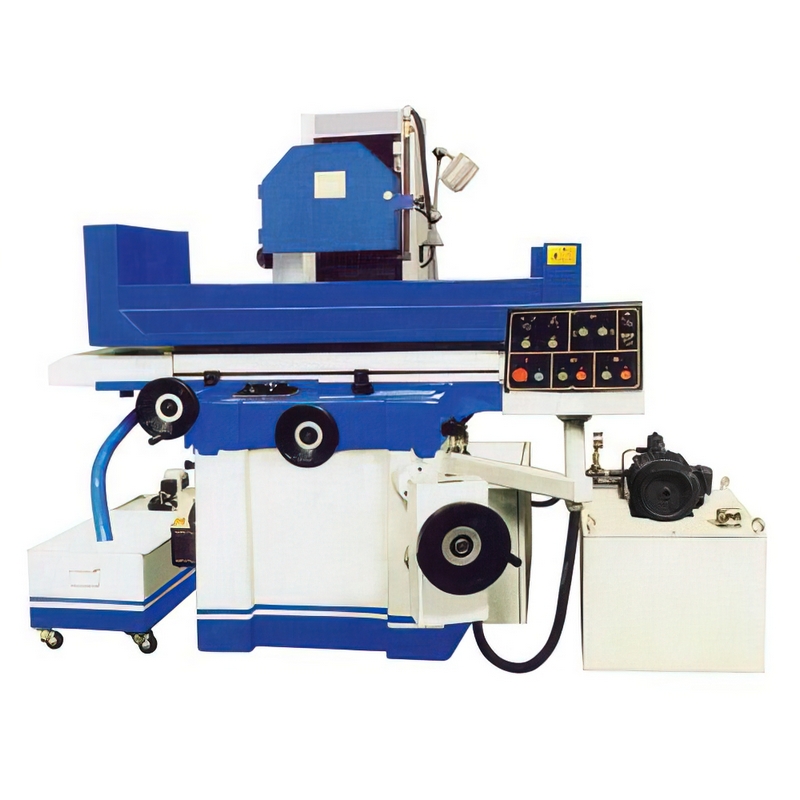

SG-3063AH / SG-30100AH Surface Grinder Grinding Machine

Category: Surface Grinder

SG-SERIES SADDLE MOVING SURFACE GRINDER



  Model No.

SG-3063AH
SG-3063AHR
SG-3063AHD

SG-30100AH
SG-30100AHR
SG-30100AHD

 Item No.





 Specifications





 Table size (mm)

305 x 635 mm

305 x 1020 mm

 Max. longitudinal travel (mm)

765 mm

1130 mm

 Max. cross travel (mm)

340 mm

340 mm

 Max. dis. from spindle to table (mm)

580 mm

580 mm

 Electro magnetic chuck size(mm)

300 x 600 mm

300 x 1000 mm

 Table longitudinal feed speed

7-23 m/min.

 Table tansverse
 movement

 Auto feed

0.1 - 8 mm/min.

 Rapid speed

990 m/min.

 Feed of electro handwheel

0.02 mm/div.

 Head vetical
 movement

 Auto feed

0.005/0.01/0.02/0.03/0.04/0.05 mm (only for AHD)

 Rapid feed

460 mm/min. (only for AHD)

 Feed of handwheel

0.005 mm/div.

 Grinding wheel

 Speed

1450 rpm

 Size (ODxWxID)

350 x 40 x 127 mm

 Spindle Motor (kw)

5.5 kw

 Hydranlic motor (kw)

2.2 kw

 Cooling pump motor (kw)

0.125 kw

 Elevating motor (kw)

--- (AH mode) 0.25 (AHR mode) 0.5 (AHD mode,servo motor)

 Cross feed motor (kw)

0.04 kw

 Max. loading of table ( include chuck) (kg)

270 kg

400 kg

 Total rated power (kw)

9 kw

 Height of machine (mm)

1890 mm

 Floor space (mm)

2900 x 2200 mm

4400 x 2200 mm

 Gross weight (kg)

2900 kg

3300 kg

 Package dimensions (mm)

2350x2220x2150 mm

2950x2220x2210 mm
