FEATURE:
● Widely useful, grind various surfaces
● Spindle and leadscrew is imported
● Mutiple labyrinth seal is used on spindle quill
● Rolling ball guideway is used on longitudinal direction
● Double V type guideways
● Vertical handwheel is fixed on bed
● Manual oil pump lubricates all moveable parts

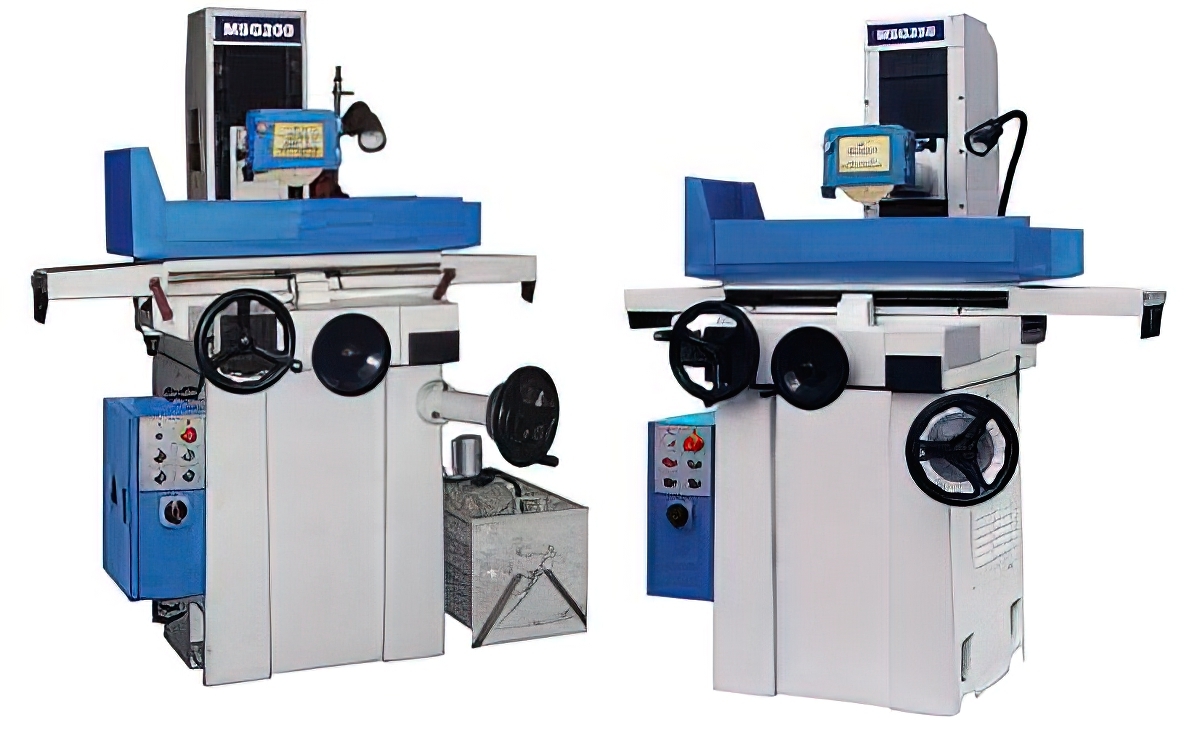

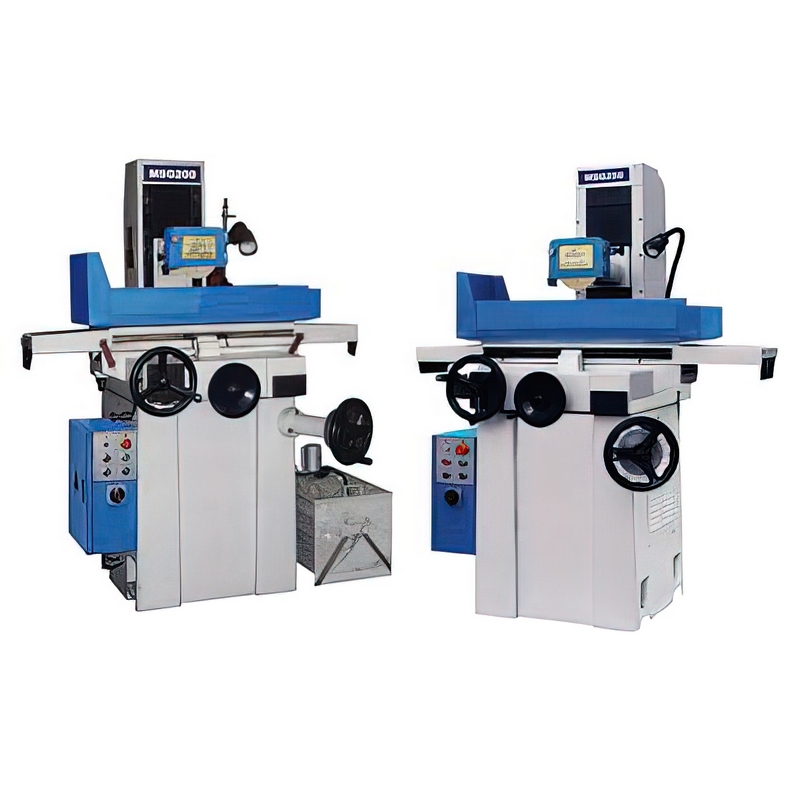

MSG200 MSG250 MANUAL SURFACE GRINDER
|
Model No. |
MSG200 |
MSG250 |
|
|
Item No. |
|
|
|
|
Specifications |
|
||
|
Max. width to be ground (mm) |
165 mm |
220 mm |
|
|
Max. length to be ground (mm) |
470 mm |
520 mm |
|
|
Max. height to be ground (mm) |
350 mm |
||
|
Table size (mm) |
150x460 mm |
200x520 mm |
|
|
Permanent magnetic chuck size(optional) (mm) |
150x400 mm |
200x450 mm |
|
|
Max. longitudinal travel (mm) |
500 mm |
570 mm |
|
|
Max. cross travel (mm) |
200 mm |
250 mm |
|
|
Max. distance from spindle cenler to table surface |
450 mm |
||
|
Feed of vertical |
Per rev. (mm) |
2 mm |
|
|
Per div. (mm) |
0.005 mm |
||
|
Grinding wheel size(OD*W*lD) |
200 x 20 x 31.75 mm |
||
|
Spindle speed (r/min.) |
2850 r/min. |
||
|
Power of spindle head (kw) |
1.5 (buld inspindle 1.1) |
||
|
Max. load capacity(include permanent magnetic chuck) |
110 kg |
140 kg |
|
|
Machine weight (kg) |
1000 kg |
1120 kg |
|
|
Machine appearance size (mm) |
1360x1350x1710 |
1450x1390x1770 |
|
|
Package dimension (mm) |
1670x1650x1930 |
1670x1700x1980 |
|
|
Package size (dismantle table) (mm) |
1670x1120x1930 |
1670x1120x1980 |
|
|
Standard accessories. |
|
● Wheel ● Balancing arbor ● Hoisting set ● Monkey spanner ● Wheel chuck |
|
● Wheel dresser ● Levelling screw and block ● Tool box and special wrench |
|
● Halogen lamp ● Coolant system |
|
Optional accessories: |
|
● Permanent magnetic chuck ● Dust collector |
|
● Wheel balancing stand ● Cooling and dust collecting equipment |
