EDM Machine

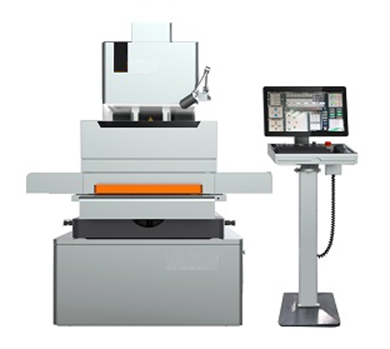

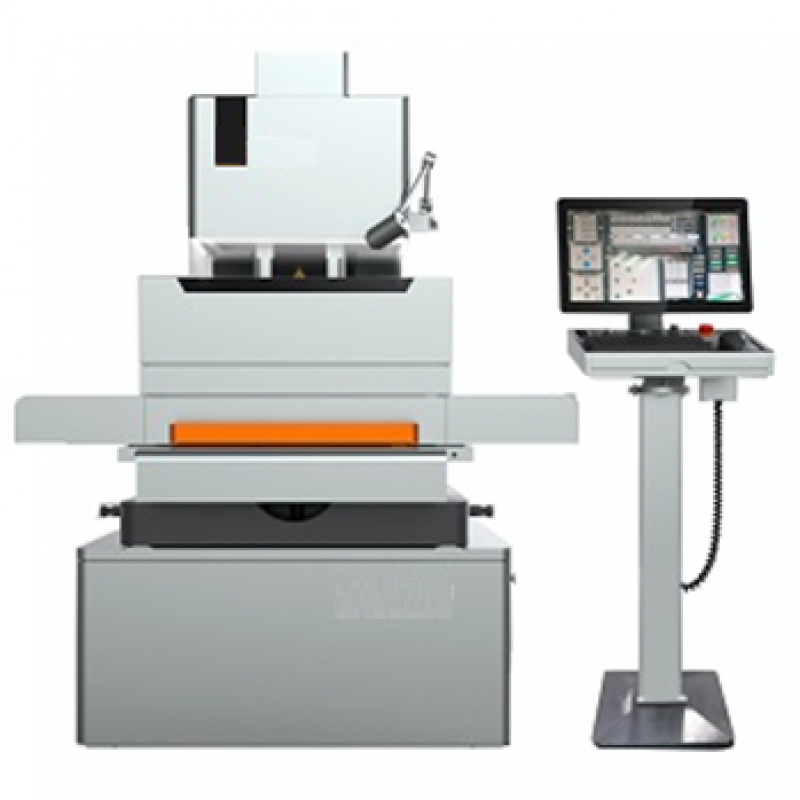

JMD703-400 EDM Hole Drilling Machine

 Model No.

JMD703-400

 Item No.



 Specifications

 Work table size

310 x 486mm

 Work table travel

300 x 400mm

 Load of table

300kg

 Electrode diameter

0.2-3.0mm

 Water tank capacity

30L

 Machine weight

700kg

 Machine dimensions

          1236 x 1025 x 1934mm

 Packing dimensions

1430 x 1340 x 2000mm
    Control type ZNC: Z axis NC control

Universal Parameters

 Drilling Depth

0-300mm

 Z axis travel

300+(320)mm

   Max. drilling speed

60mm2/min

 Max. working current

30A

 Max. power comsumption

3.5kva

 Voltage

220-415V/50Hz

 Working solution

           Water/Saponification

   Function of setting depth

Yes

 Z axis travel control

                  Electric motor



Ask about this product
