EDM Machine

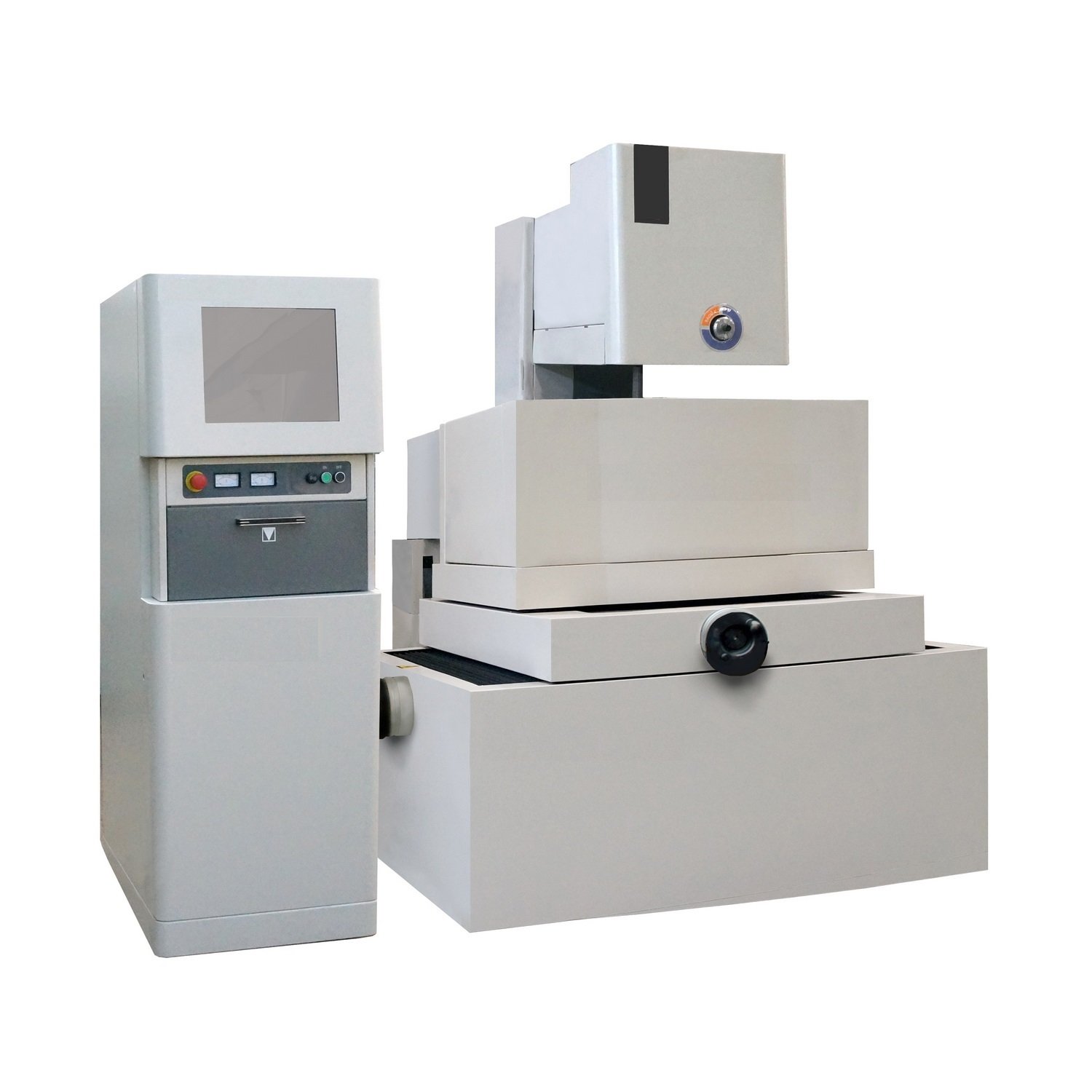

JKT32C / JKT40C Stepper Control Wire Cut EDM Machine

Category: EDM Wire Cut Machine

 Model No.

JKT32C / JKT40C

    Item No.



Specification

   Worktable size(L x W)                                  420*650mm

   Table travel(X x Y)

320*400 mm

 Max. workpiece thickness

300mm
    Max. taper angle / plate thickness

6-9 degree/ mm

 Max. machining speed

300 mm²/min

 Precision / Octagon

0.010 mm

 Max. working current

9A

 Roughness, three cutting

1.0 mm

 Wire diameter

0.12-0.25 mm

 Wire travelling speed

5-11 m/min

 Load of table

400kg

 Working solution

working solution BM-06GP

 Working reservoir capacity

100L

 Power supply

3N-38V/50Hz

 Power consumption

3KVA

 Wire guide frame

Adjustable

 Machine dimensions(L x W x H)

1450x1000x1550 mm

   Package dimensions(L x W x H)

1800x1400x1800 mm

 Machine weight

1700 kg

   Controller type



     BMW -3000/BMW-5000/BMW-6000

 Standard Accessories

 Optional Accessories

 Step Motor for X/Y Axis

 Servo Motor for X/Y Axis

 Manual Z Axis adjuster

 Z Axis Motorized



 DRO(Digital Read Out)



 Aluminum Cutting
