Drilling Machine

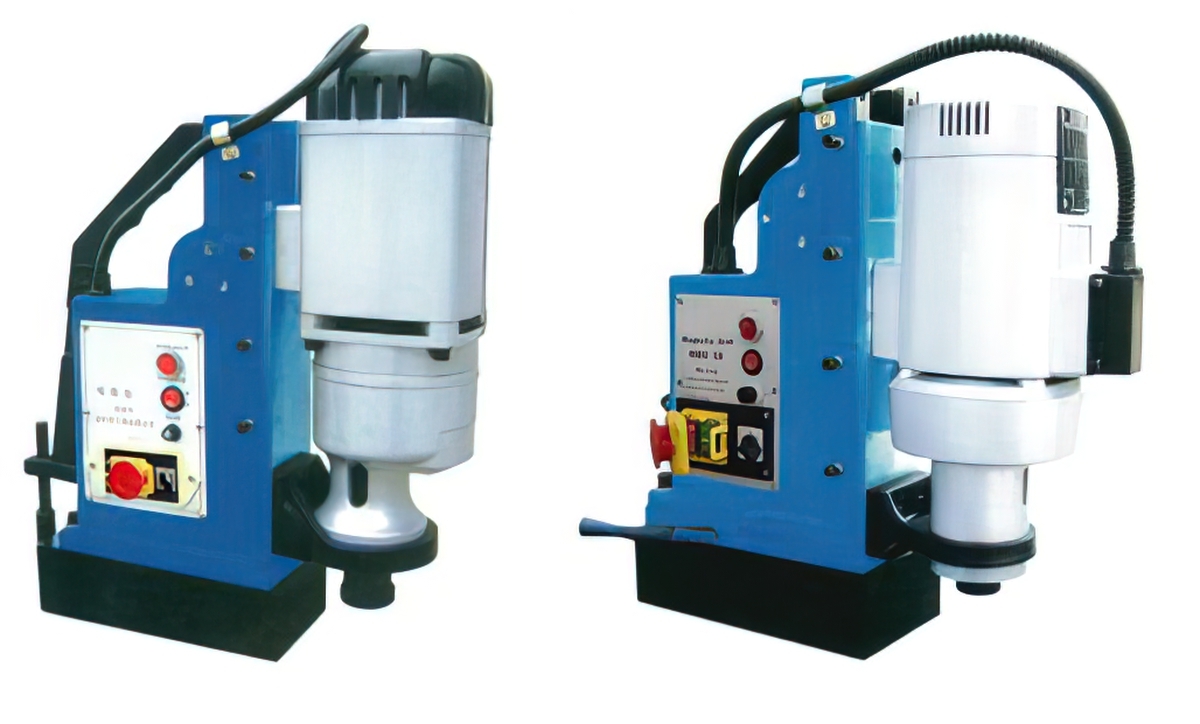

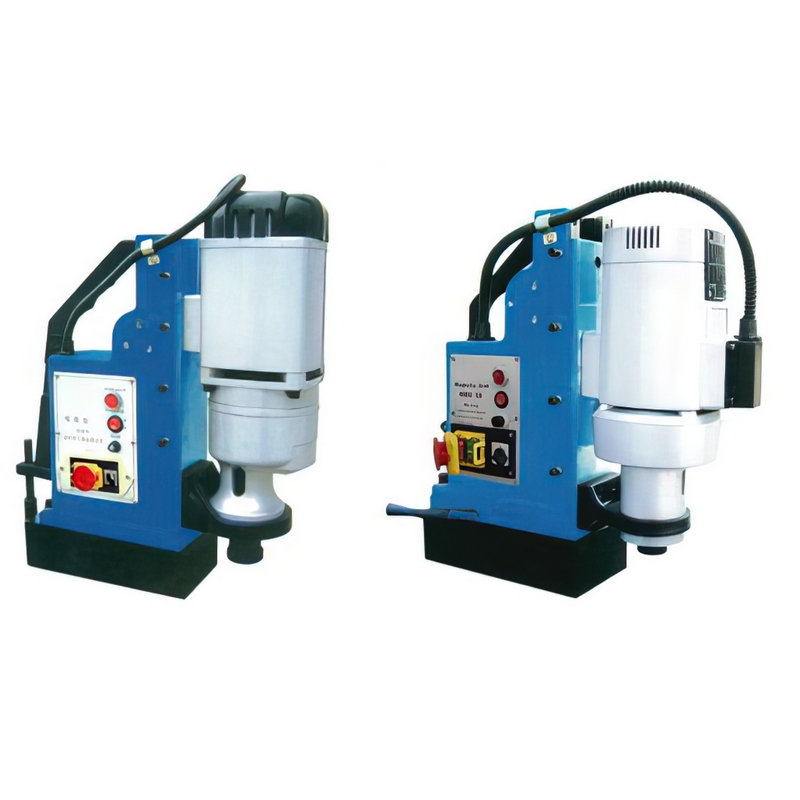

MD19 - MD49 Magnetic Drill Machine

Category: Magnetic Drill



 Model No.

MD19

MD23

MD28

MD32

MD38

MD49

    Item No.













 Specifications

 Drill capacity

Φ19 mm

Φ23 mm

Φ28 mm

Φ32 mm

Φ38 mm

Φ49 mm

 Steel

Φ19 mm

Φ23 mm

Φ28 mm

Φ32 mm

Φ38 mm

Φ49 mm

 Spindle Taper

MT2

MT2

MT3

MT4

MT4

MT4

 No-load speed

330 r/min.

315 r/min.

300 r/min.

150 r/min.

150 r/min.

115 r/min.

 Roted input power

1100W

1300W

1400W

1600W

1700W

1800W

 Max.attraction

12000N

13000N

14000N

16000N

17000N

18000N

 Max.travel

180 mm

180 mm

180 mm

220 mm

220 mm

220 mm

 Rated Voltage

220V

220V

220V

380V

380V

380V

 Rated frequency

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

 Net weight

27 kg

27 kg

28 kg

57 kg

59 kg

59 kg
