Drilling Machine

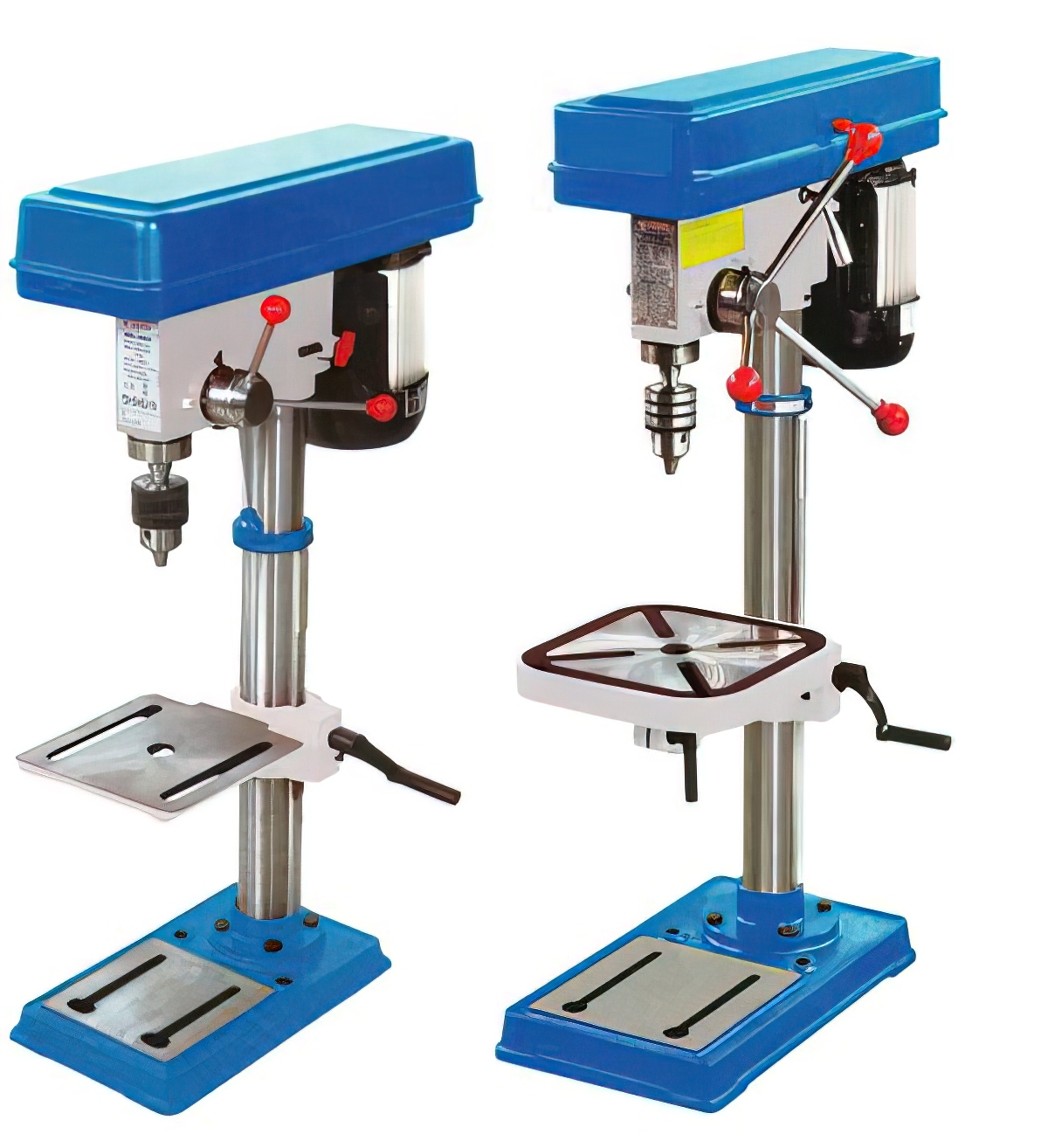

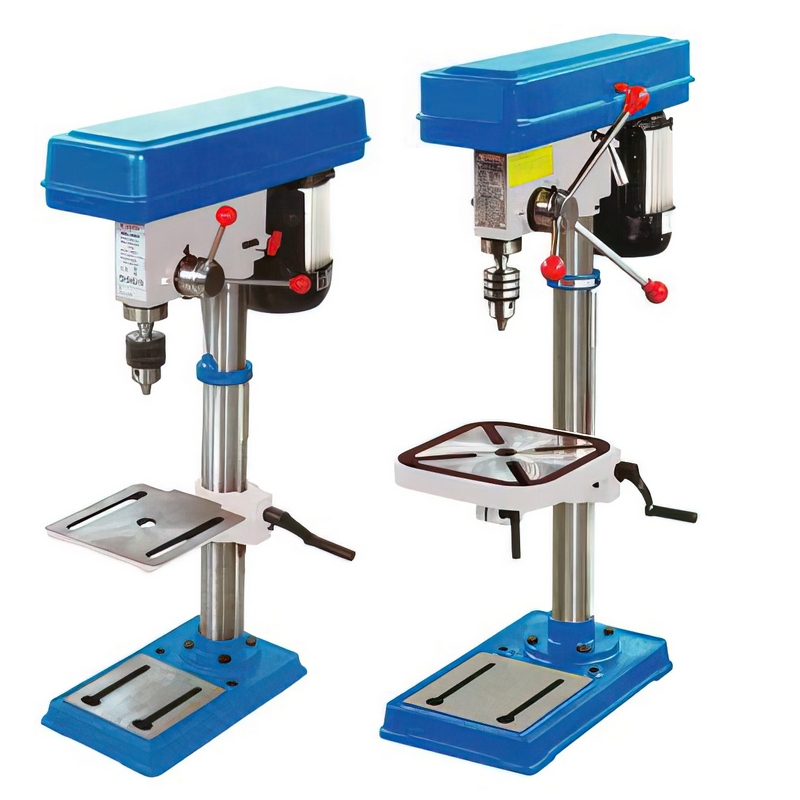

DP4116E DP4116D Drill Press Drilling Machine

Category: Drill Press

 DP4116E                                 DP4116D



 Model No.

DP4116E

DP4116D

    Item No.





 Specifications

 Motor power

375 W

375 W

 Chuck

16 mm

16 mm

 Spindle stroke

65 mm

65 mm

 Spindle taper

MT2

MT2

 Speed steps

5

12

 Speed 50/60Hz

620-2620 rpm/

740-3140 rpm

300-2550 rpm/

360-3060 rpm

 Swing

260 mm

300 mm

 Table size

200x200 mm

250x250 mm

 Base size

340x210 mm

420x250 mm

 Column

Φ58 mm

Φ58 mm

 Total height

880 mm

900 mm

 Weight

30/28 kg

41/39 kg

 Packing size

700x420x270 mm

770x450x270 mm

  Loading Qty in 20” CTN

340pcs

310pcs
